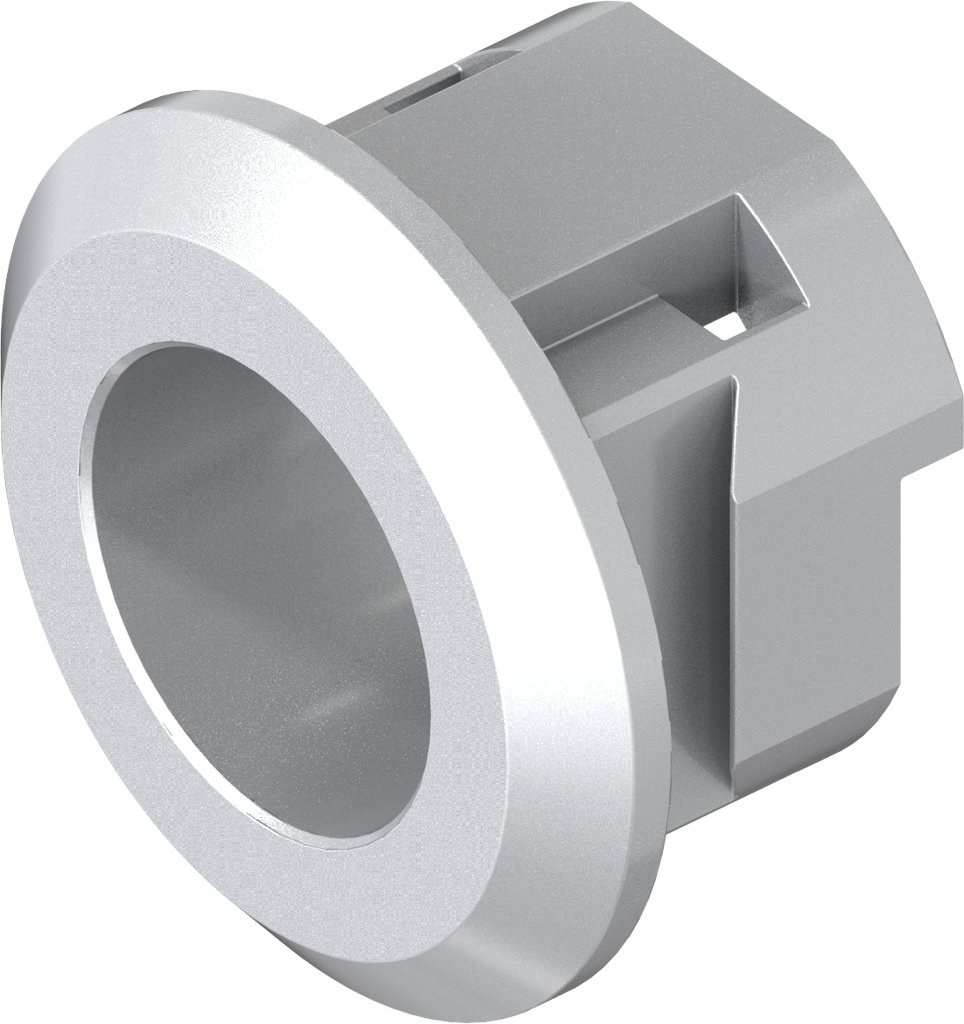

Housing unfoamed for insert, Polyamide GF silver; 1500-01-HW

https://www.emka.com/products/1500-01-hw https://www.emka.com/web/image/product.template/232607/image_1920?unique=4f98c65

Length of housing (GH) = 15 mm


    This combination does not exist.

    clamp-on / clip fix Inside the sealing Left Right


    Akeneo Note:

    The door thickness depends on the locking clip, which must be selected and ordered separately.

    Internal Reference: 1500-01-HW
    Product Type: Housing
    Material: Polyamide GF
    Program: 1500
    Surface: silver
    Catalog sheet: 1D-140
    Number of Possible Locking Points: 1 point
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 30 x 4 mm
    GH Mass: 15 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
    View All Products
    Locking clip

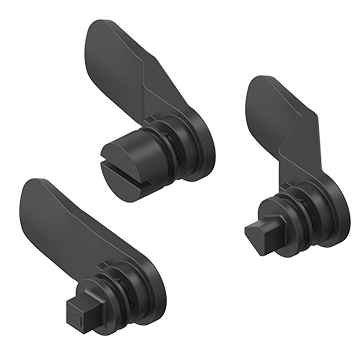

    Insert cam
