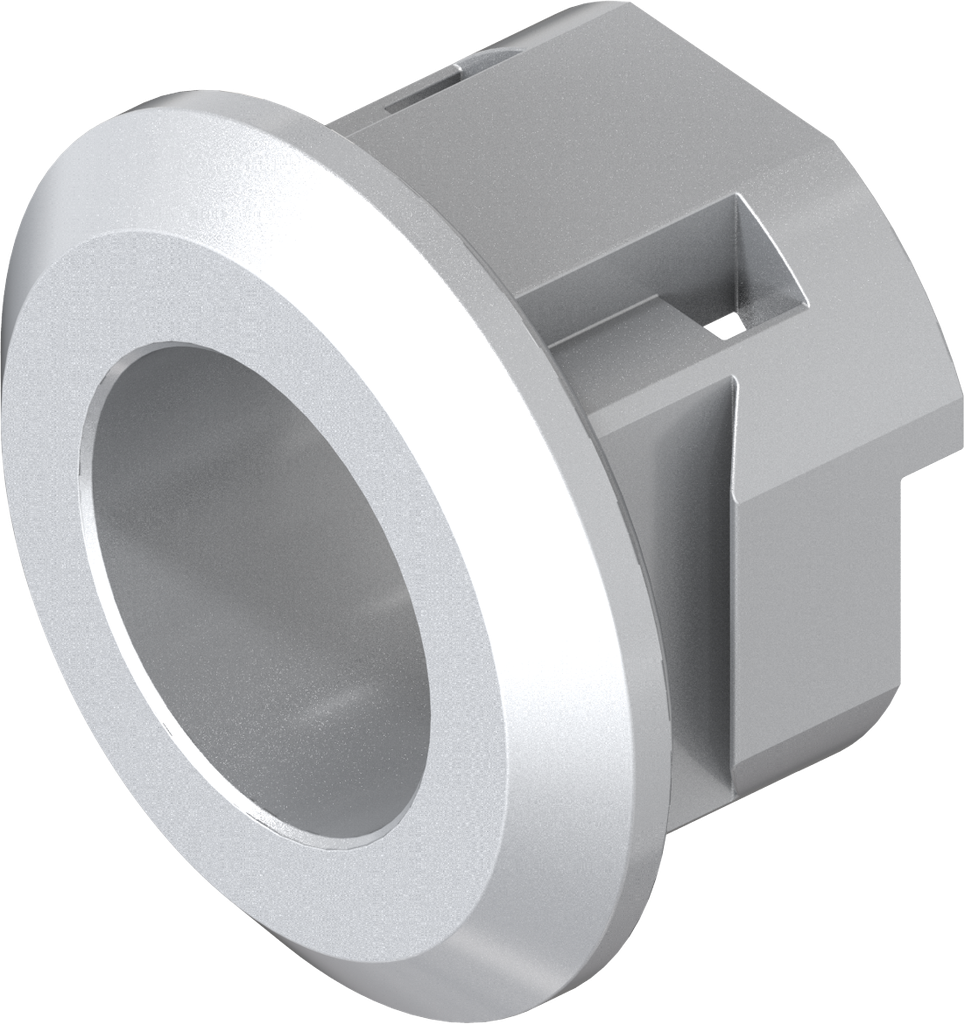

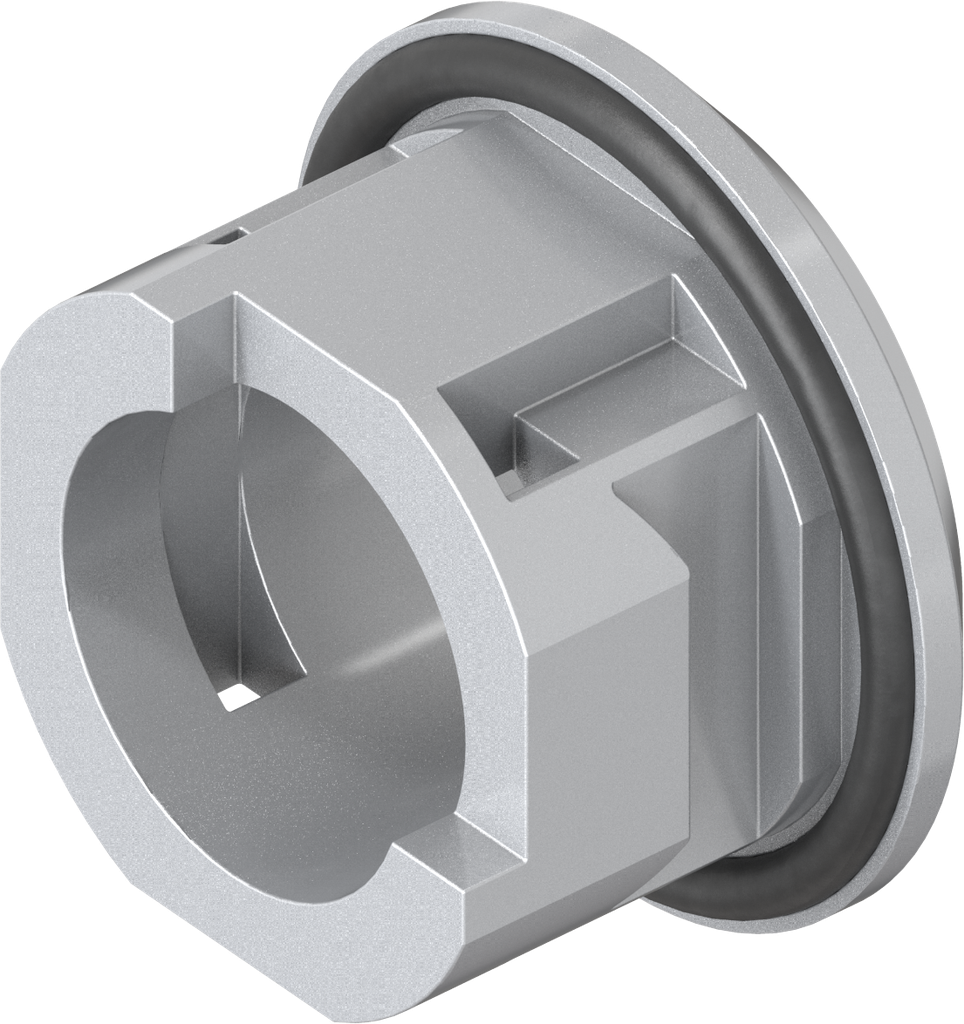

Housing foamed for insert, Polyamide GF silver; 1500-01-GHW

https://www.emka.com/products/1500-01-ghw https://www.emka.com/web/image/product.template/232611/image_1920?unique=6e226a6

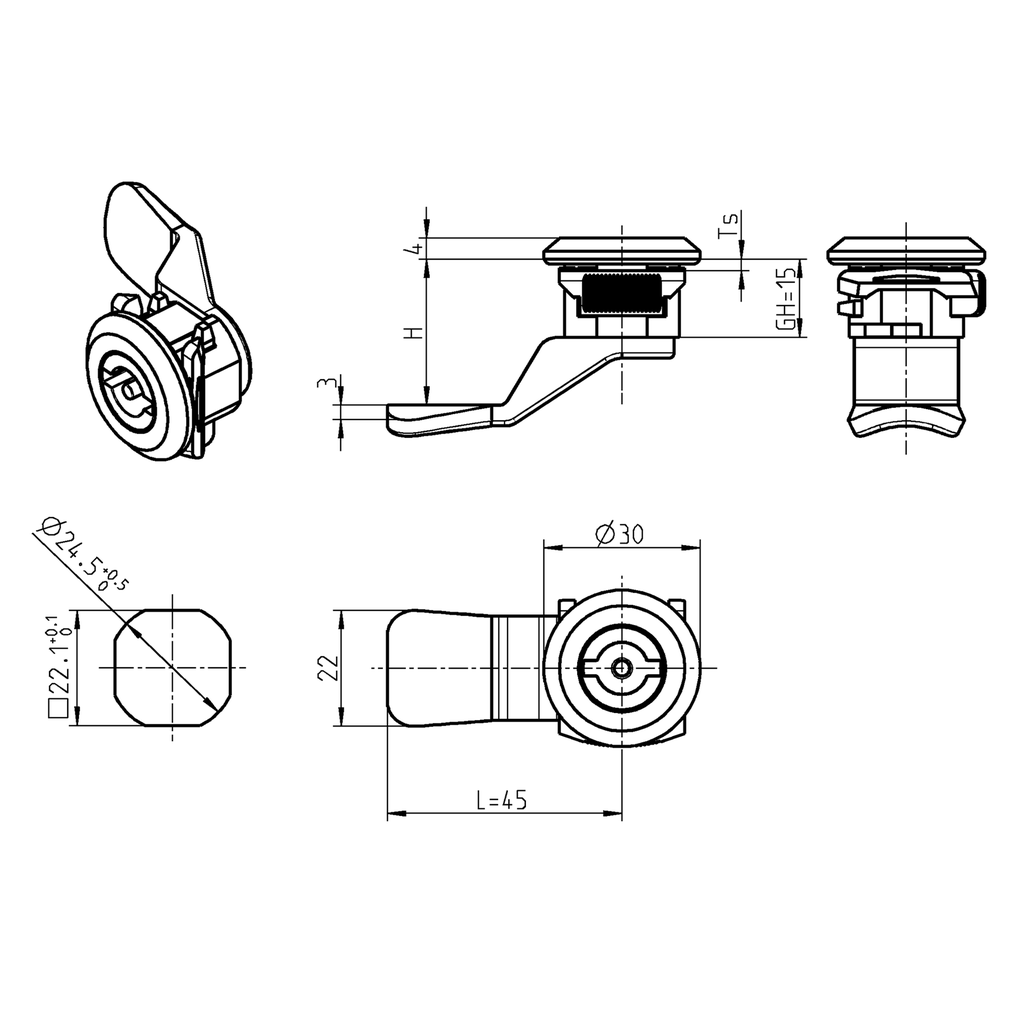

Length of housing (GH) = 15 mm

This product has no valid combination.



Akeneo Note:

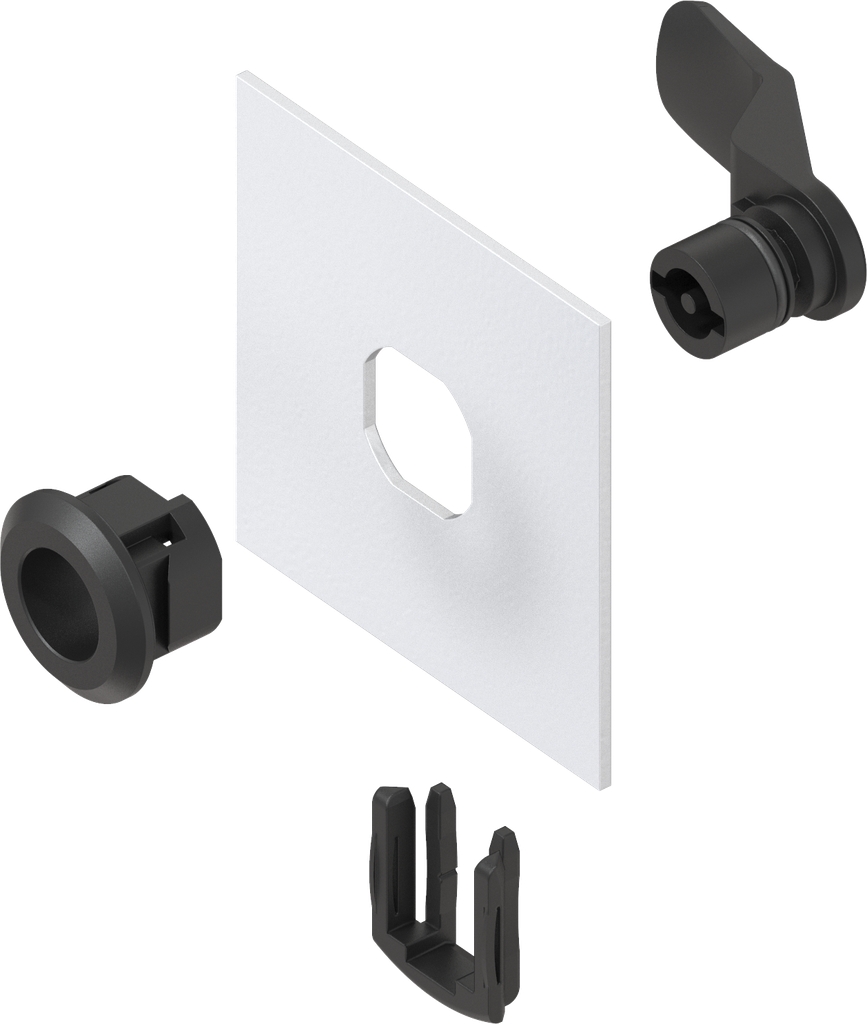

The door thickness depends on the locking clip, which must be selected and ordered separately.

Internal Reference: 1500-01-GHW
Product Type: Housing
Material: Polyamide GF
Program: 1500
Surface: silver
Catalog sheet: 1D-140
Number of Possible Locking Points: 1 point
Fixing type of housing : clamp-on / clip fix
Mounting Positions : Inside the sealing
Housing Head Shape: Round
Housing Head Size: 30 x 4 mm
Foamed gasket: Yes
GH Mass: 15 mm
Locking set: Insert
Door Version : Left,Right
Locking components: Cam
Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
