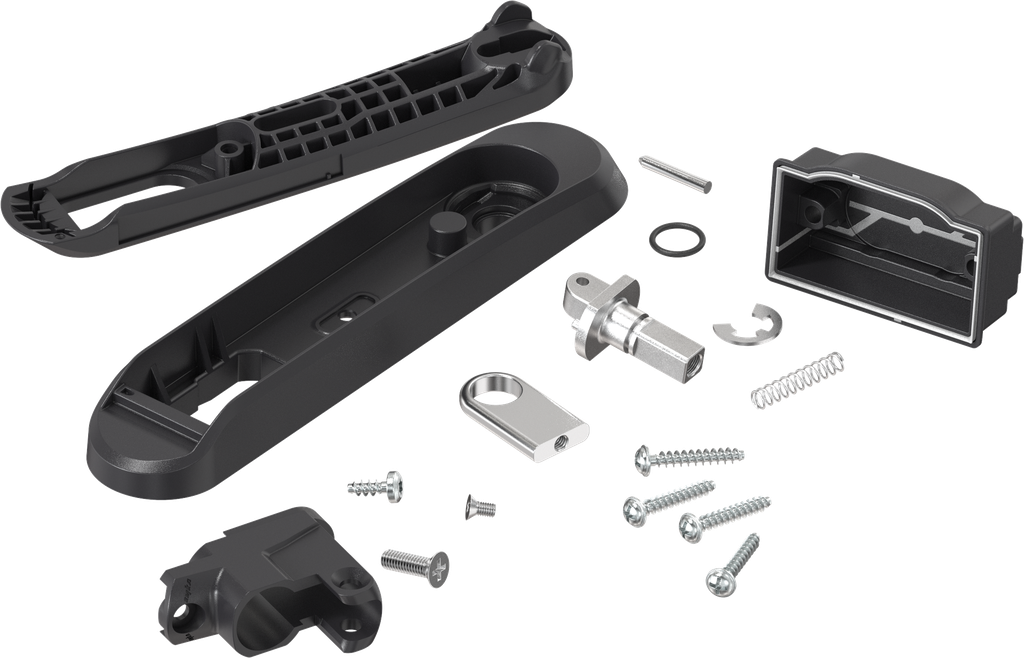

Swinghandle with cap and locking set for profile half cylinder 40 mm (A = 30 mm) and for padlock, Polyamide GF black; 1325-U4-1U
unassembled, packed according to type
Internal Reference:
1325-U4-1U
Standards:
Protection class IP 65
Barcode:
1325-U00004-000001U
Product Type:
Swinghandle, Lifthandle
Program:
1325
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Cloak:
Yes
Without locking set:
Profily half cylinder blind plug with spring-loaded ball
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Profile half cylinder A = 30,Padlock
Locking set modular technology:
Profile half cylinder, A = 30, handle assembly
Swivel Handle:
23 mm
Pan Handle Length:
179 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
Padlock Art:
Padlock with shackle dimension Ø 10
