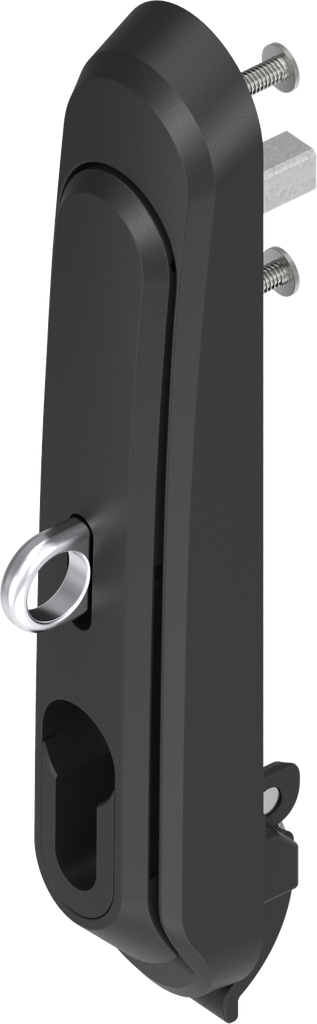

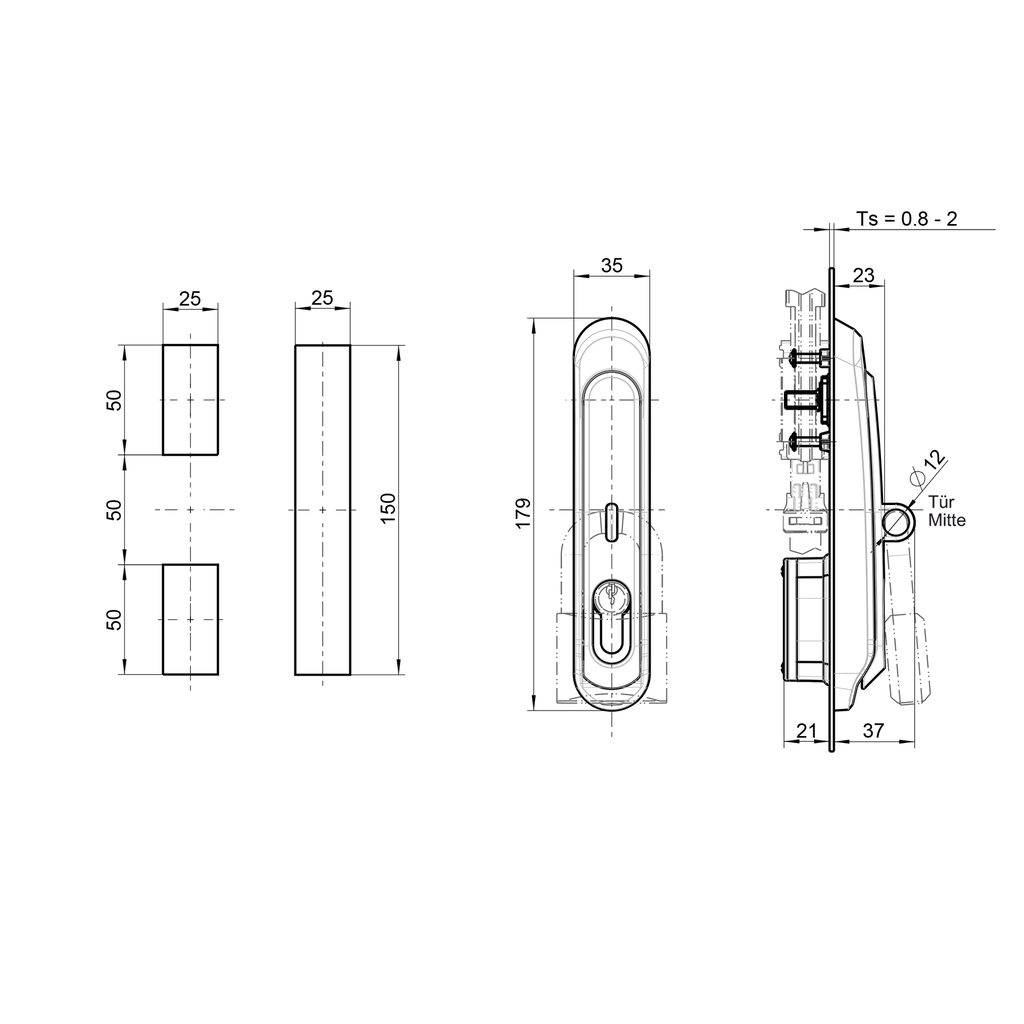

Swinghandle with hook and locking set for profile half cylinder 40 mm (A = 30 mm) and for padlock, Polyamide GF black; 1325-U3-01

https://www.emka.com/products/1325-u3-01 https://www.emka.com/web/image/product.template/65253/image_1920?unique=f86255a


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 40 Left Right


    Key features:

    • Optionally available with polyamide or steel cam suitable for many standard cams
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Assembly instruction:

    When cam is used, adapter for cam 1325-U101 is required.

    Internal Reference: 1325-U3-01
    Product Type: Swinghandle, Lifthandle
    Program: 1325
    Catalog sheet: 3BA-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set and for padlock
    Article with property rights: Yes
    Attachment of the trough: Hook IP 40
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Consistent convenient swinging: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes
    Without locking set: Profily half cylinder blind plug with spring-loaded ball
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Profile half cylinder A = 30,Padlock
    Swivel Handle: 23 mm
    Pan Handle Length: 179 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam,Rod control
    Padlock Art: Padlock with shackle dimension Ø 13
    No Specifications
    View All Products
    Cam
    Rod control
    Profile half cylinder
    Assembly
    Locking set
    Rod control
    Adapter
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3BA-220
    Product data sheet
    CAD file | 1325-U3-01_igs
    CAD file | 1325-U3-01_stp
