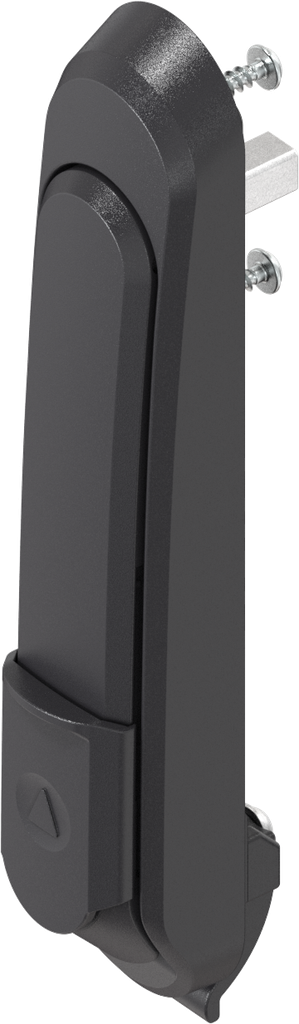

Swinghandle with hook and variable use of locking sets, Polyamide GF black; 1325-U1

https://www.emka.com/products/1325-u1 https://www.emka.com/web/image/product.template/65248/image_1920?unique=31d9840


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 40 Left Right


    Product Benefits:

    • Optionally available with polyamide or steel cam suitable for many standard cams
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Assembly instruction:

    When cam is used, adapter for cam 1325-U101 is required.

    Internal Reference: 1325-U1
    Product Type: Swinghandle, Lifthandle
    Program: 1325
    Catalog sheet: 3BA-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Article with property rights: Yes
    Attachment of the trough: Hook IP 40
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Consistent convenient swinging: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set modular technology: Profile half cylinder, A = 30, handle assembly,Round cylinder, handle assembly,Insert, handle assembly
    locking set cover: Yes
    Swivel Handle: 23 mm
    Pan Handle Length: 179 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam,Rod control
    No Specifications
    View All Products
    Cam

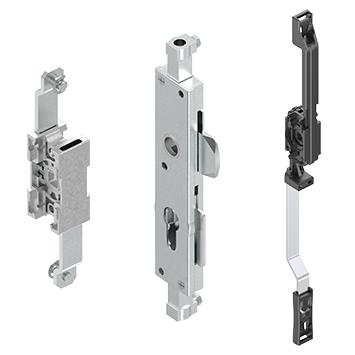

    Rod control
