Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated RAL 7038
Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated RAL 7038

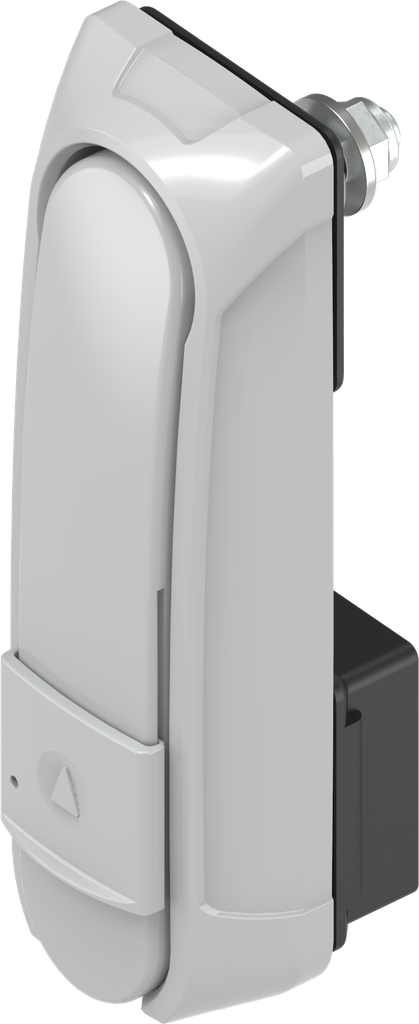

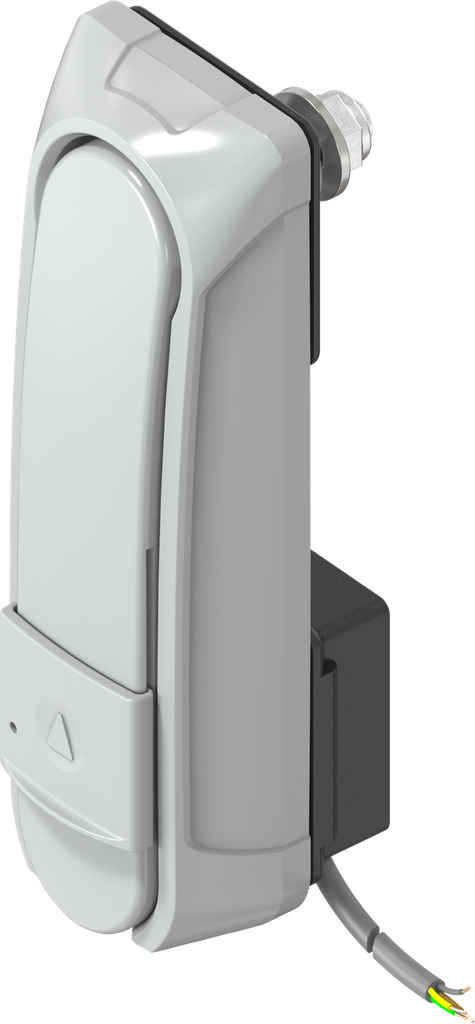

Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated; 1317-U151-02HJ

https://www.emka.com/products/1317-u151-02hj https://www.emka.com/web/image/product.template/348708/image_1920?unique=a58132a

for cam


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) DIN EN 1630 class RC2 / WK2 (resistivity) DIN EN 50102 - IK10 (shock resistance) Left Right


    Product Benefits:

    • Zinc die type fulfills the requirements of resistance level RC2 (protection against vandalism) according to DIN V ENV 1630
    • Great flexibility regarding price-performance ratio due to variety of types
    • Checked and released by Deutsche Telekom

    Function:

  • Application: Indoor and outdoor at -30 °C to +80 °C
  • Release: By applying a 48 V DC signal
  • Power-on time: Up to 1 minute
  • Display: Optional via LED
  • Remote monitoring: Via integrated reed contact
  • Closing: Pushing handle into dish until locking mechanism engages
  • Emergency opening: Optional with 40 mm or 45 mm profile half cylinder
  • 4-eyes-principle: On request! To open it, the release signal and an unlocked profile half cylinder are necessary
  • Assembly instruction:

    Resistance class: RC2 DIN EN 1630, achieved by profile half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.

    Akeneo Note:

    Ts > 6 - 12 mm on request

    Internal Reference: 1317-U151-02HJ
    Product Type: Swinghandle, Lifthandle
    Program: 1317
    Catalog sheet: 3AB-120
    Material of the module : Zinc die
    Surface of the module: grey powder-coated
    Door return variable: Yes
    Anti-graffiti paint: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set and electromechanical version
    Article with property rights: Yes
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Electromechanical Unlocking : 48 V
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes
    Emergency opening: Yes
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball
    Suitable for door thickness from: 2 mm
    Suitable for door thicknesses up to: 12 mm
    Sealable: Yes
    Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630): Yes
    Test rating IK 10 following DIN EN 50102: Yes
    Locking set: Profile half cylinder A = 30,Profile half cylinder A = 35
    locking set cover: Yes
    Key Removable: Key can be withdrawn in any handle position
    Shock and vibration testing according to DIN EN 61373: Yes
    Swivel Handle: 34.5 mm
    Pan Handle Length: 165 mm
    Door Version : Left,Right
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Rod control

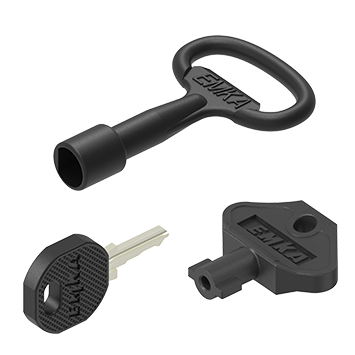

    Keys
