Swinghandle "short" with RC2 for profile half cylinder 45 mm (A = 35 mm), Zinc die black powder-coated
Swinghandle "short" with RC2 for profile half cylinder 45 mm (A = 35 mm), Zinc die black powder-coated
Swinghandle "short" with RC2 for profile half cylinder 45 mm (A = 35 mm), Zinc die grey powder-coated RAL 7038 and anti-graffiti coated
Swinghandle "short" with RC2 for profile half cylinder 45 mm (A = 35 mm), Zinc die grey powder-coated RAL 7038 and anti-graffiti coated

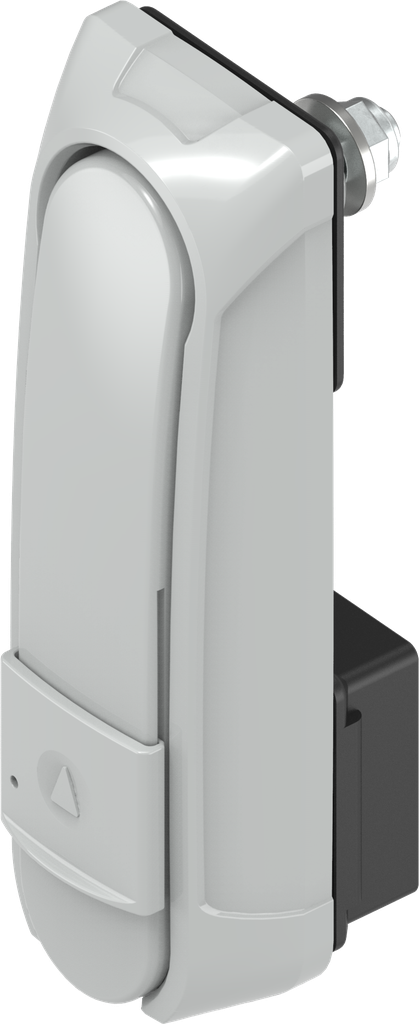

Swinghandle "short" with RC2 for type KABA 1514, Zinc die grey powder-coated RAL 7038 and anti-graffiti coated; 1317-U131-HJ

https://www.emka.com/products/1317-u131-hj-swinghandle-short-with-rc2-for-type-kaba-1514-zinc-die-grey-powder-coated-ral-7038-and-anti-graffiti-coated-348702 https://www.emka.com/web/image/product.template/348702/image_1920?unique=523701b

for cam

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) DIN EN 1630 class RC2 / WK2 (resistivity) DIN EN 50102 - IK10 (shock resistance) Left Right

    Product Benefits:

    • Zinc die type fulfills the requirements of resistance level RC2 (protection against vandalism) according to DIN V ENV 1630
    • Great flexibility regarding price-performance ratio due to variety of types
    • Checked and released by Deutsche Telekom

    Assembly instruction:

    Resistance class: RC2 DIN EN 1630, achieved by profile half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.

    Akeneo Note:

    Ts > 6 - 12 mm on request
    Internal Reference: 1317-U131-HJ
    Standards: False
    Barcode: 1317-U00131-00000HJ
    Product Type:
    Program:
    Catalog sheet: 3AB-120
    Material of the module :
    Surface of the module:
    Door return variable: Yes
    Anti-graffiti paint: Yes
    Number of Possible Locking Points: False
    Number of Locking:
    Article with property rights: Yes
    Attachment of the trough:
    Mounting Positions : False
    Foamed gasket: Yes
    Handle Art(1):
    Integrated scratch protection: Yes
    Suitable for door thickness from: 2 mm
    Suitable for door thicknesses up to: 12 mm
    Sealable: Yes
    Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630): Yes
    Test rating IK 10 following DIN EN 50102: Yes
    Locking set: False
    locking set cover: Yes
    Key Removable:
    Shock and vibration testing according to DIN EN 61373: Yes
    Swivel Handle:
    Pan Handle Length:
    Door Version : False
    Locking components: False
    No Specifications
    View All Products
    Cam
    Rod control

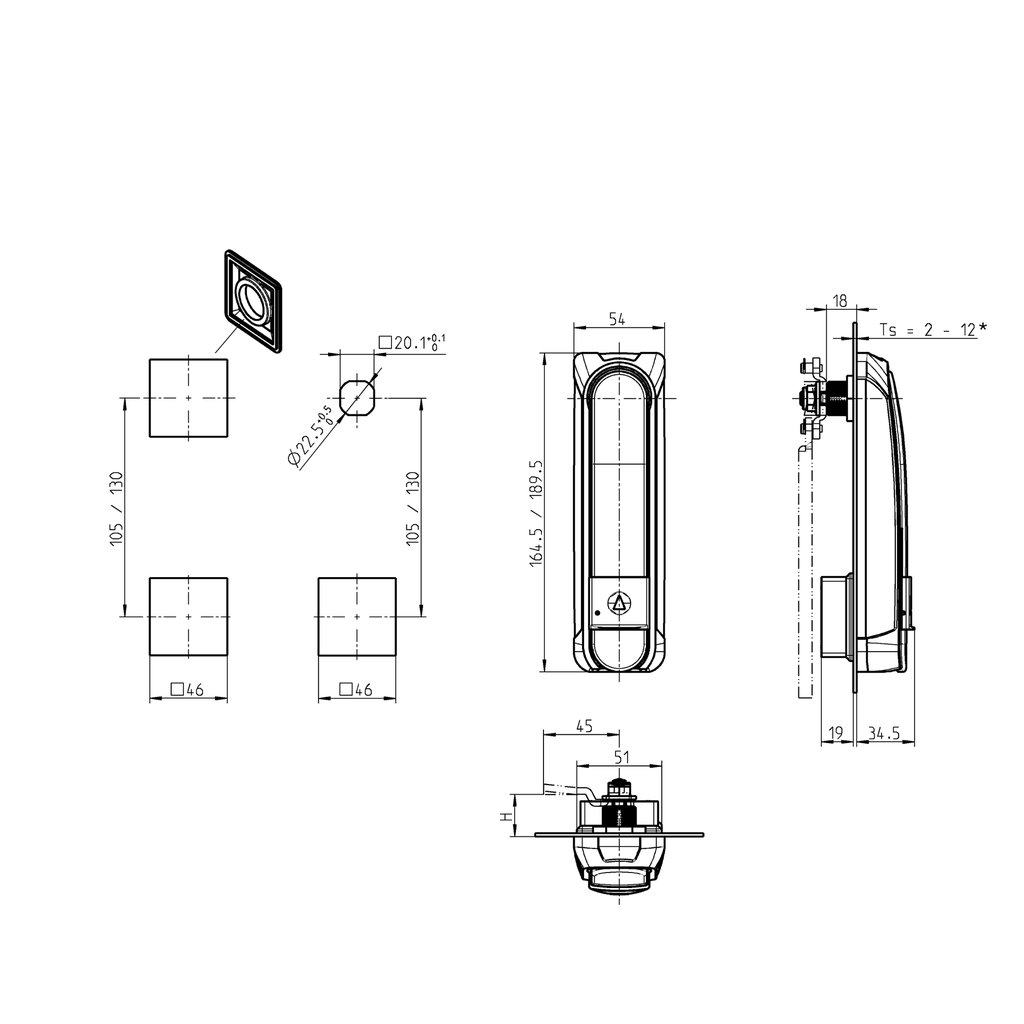

    Here you can find the product data sheets and CAD files of this product
