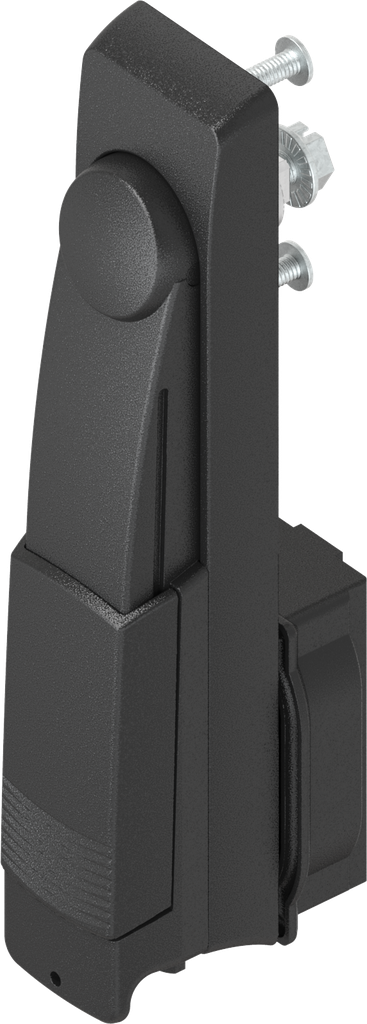

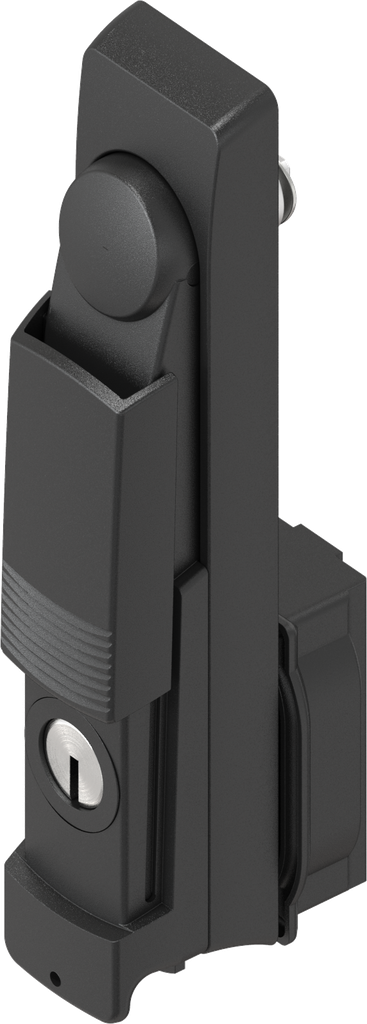

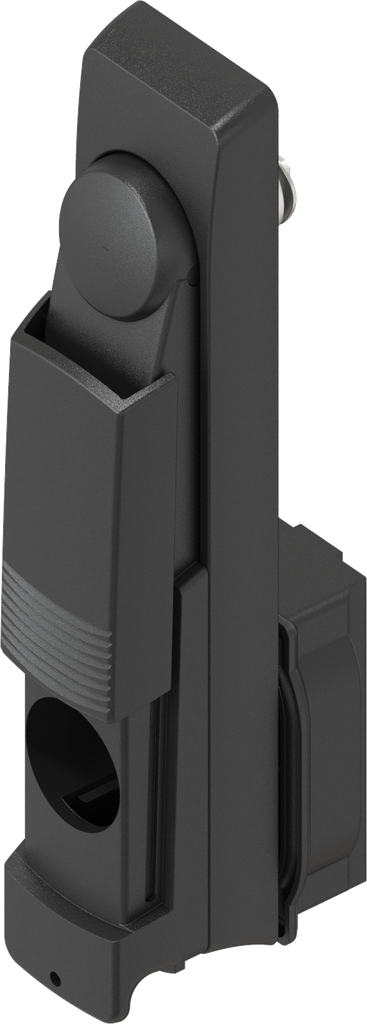

Swinghandle with insert double bit 3, Polyamide GF black
Clip-in viewing window with seal, Polycarbonate crystal clear
Product information:
Attention: KABA cylinder provided by customer
Internal Reference:
1225-U291
Standards:
Protection class IP 65
Barcode:
1225-U00291-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1225
Catalog sheet:
3G-420
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Sealable:
Yes
Locking set:
KABA cylinder
locking set cover:
Yes

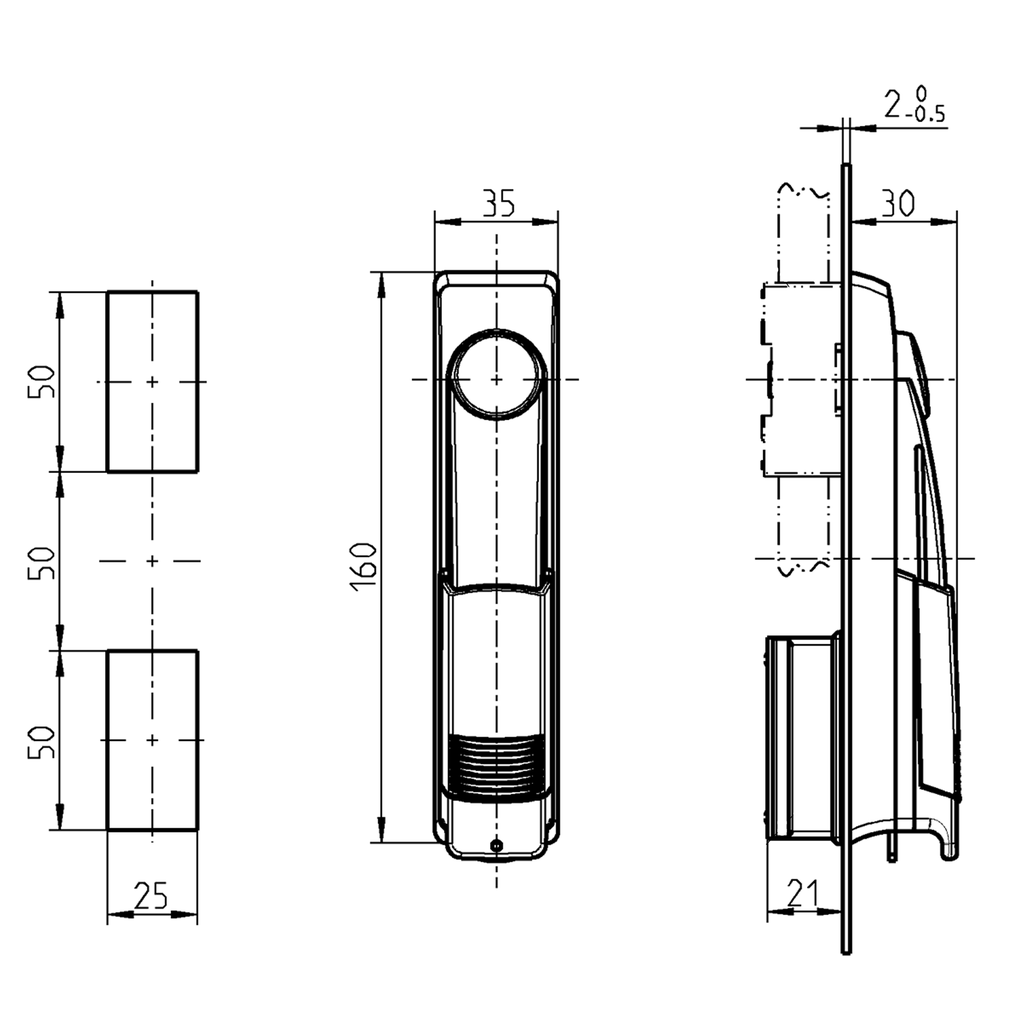

Swivel Handle:
30 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control,Bearing bush with cam
No Specifications
