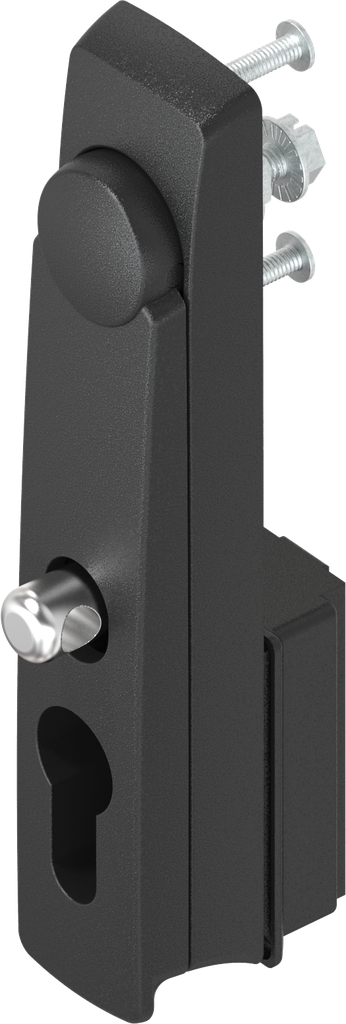

Swinghandle prepared for padlock and profile cylinder, Polyamide GF black; 1225-U184
No stock item, please ask for availability
Internal Reference:
1225-U184
Standards:
Protection class IP 65
Barcode:
1225-U00184-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1225
Catalog sheet:
3G-220
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Profile half cylinder A = 30,Padlock
Swivel Handle:
32 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:

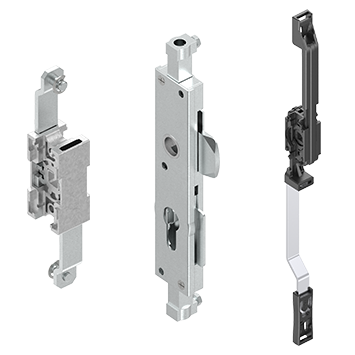

Rod control,Bearing bush with cam
Padlock Art:
Padlock with shackle dimension Ø 7.5
No Specifications
