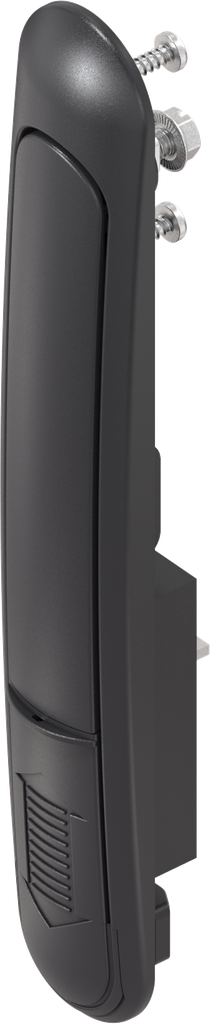

Swinghandle 1185 for rod control, Polyamide GF black; 1185-U2

https://www.emka.com/products/1185-u2 https://www.emka.com/web/image/product.template/65096/image_1920?unique=e0d59c1


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 54 Left Right


    Product information:

    Swinghandle without locking set

    Assembly instruction:

    Turn pre-assembled fixing bridges by 90° and tighten

    Internal Reference: 1185-U2
    Product Type: Swinghandle, Lifthandle
    Program: 1185
    Catalog sheet: 3E-520
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set modular technology: Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish,Push button with cap, mounted at the dish
    locking set cover: Yes
    Swivel Handle: 13 mm
    Pan Handle Length: 221 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control
    No Specifications
    View All Products
    Locking set
    Rod control
    Here you can find the product data sheets and CAD files of this product
