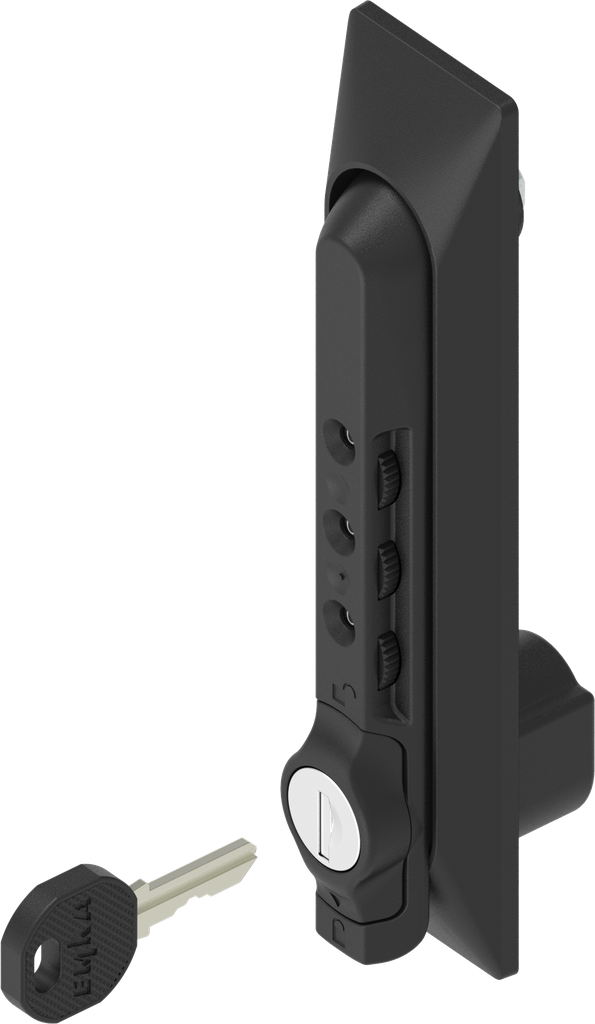

Swinghandle 1155 with universal dish with combination lock and keyed different, Polyamide GF black; 1155-U2-11

https://www.emka.com/products/1155-u2-11 https://www.emka.com/web/image/product.template/65009/image_1920?unique=7db622d


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 65 Left Right


    Product information:

    Swinghandle with two locking sets

    ① = Option 1:
    Release using round cylinder. Operation as with usual swinghandles of Program 1150. The combination lock remains untouched.

    ② = Option 2:
    Release using combination lock and wing knob. The round cylinder remains locked. The arrow on the wing knob indicates the open or closed position.

    Attention:
    Please order fixing material separately!
    Ts = 1 to 3 mm depending on the fixing material

    On request:
    - Key of round cylinder not removable in open position
    - Other insert

    Internal Reference: 1155-U2-11
    Product Type: Swinghandle, Lifthandle
    Program: 1155
    Catalog sheet: 3C-750
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: Two locking sets, 1-key-operation
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 3 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder,Combination lock
    Swivel Handle: 20 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam,Rod control
