Rod control, Stainless steel AISI 316
Rod control, Stainless steel AISI 316
Swinghandle 1152 with push button, Zinc die black powder-coated
Swinghandle 1152 with push button, Zinc die black powder-coated

Swinghandle 1151 for locking set, Zinc die black powder-coated; 1151-U1

https://www.emka.com/products/1151-u1 https://www.emka.com/web/image/product.template/64933/image_1920?unique=9b7721b

for cam


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 54 Left Right


    Product information:

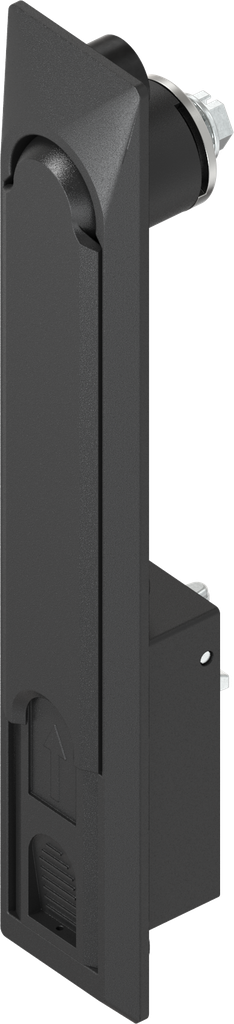

    Swinghandle without locking set

    Internal Reference: 1151-U1
    Product Type: Swinghandle, Lifthandle
    Program: 1151
    Catalog sheet: 3C-420
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    GH Mass: 20 mm
    Handle Art(1): Swinghandle
    Sealable: Yes
    Locking set modular technology: Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish,Push button with cap, mounted at the dish
    locking set cover: Yes
    Swivel Handle: 9 mm
    Pan Handle Length: 200 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Door thickness: 2 mm
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Rod control
    Locking set
    Here you can find the product data sheets and CAD files of this product
