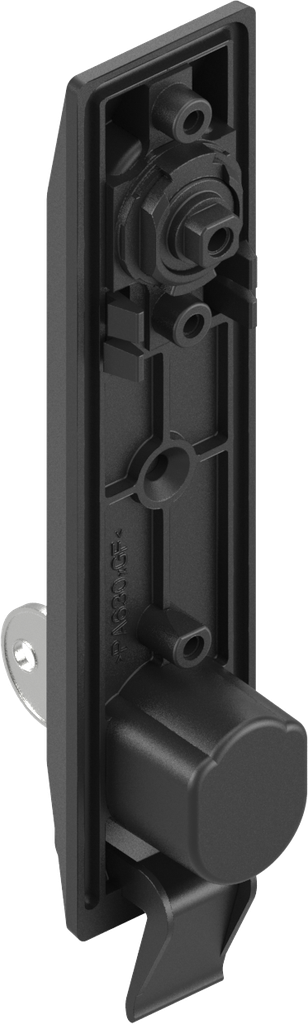

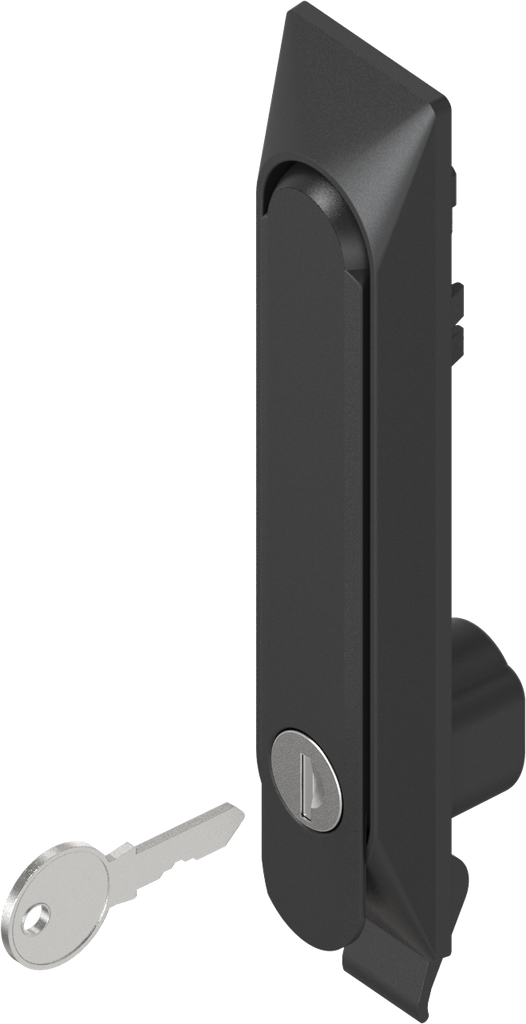

Swinghandle Eco 1150, keyed EK 333, Polyamide and zinc die black powder-coated

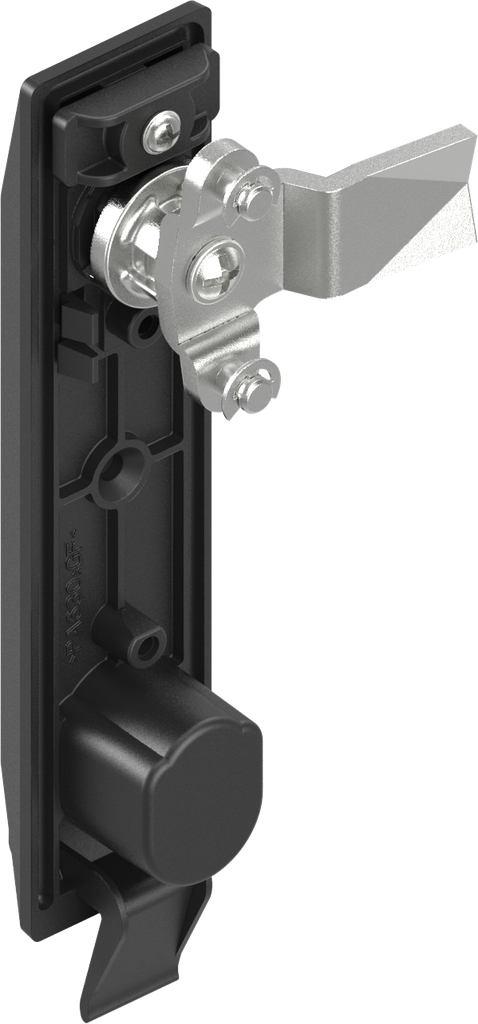

Fixing material with adapter for cam, Zinc die and steel zinc-plated
Swinghandle Eco 1150, keyed EK 333, Polyamide and zinc die black powder-coated; 1150-U66-01
unassembled
Product information:
Swinghandle ist unassembled

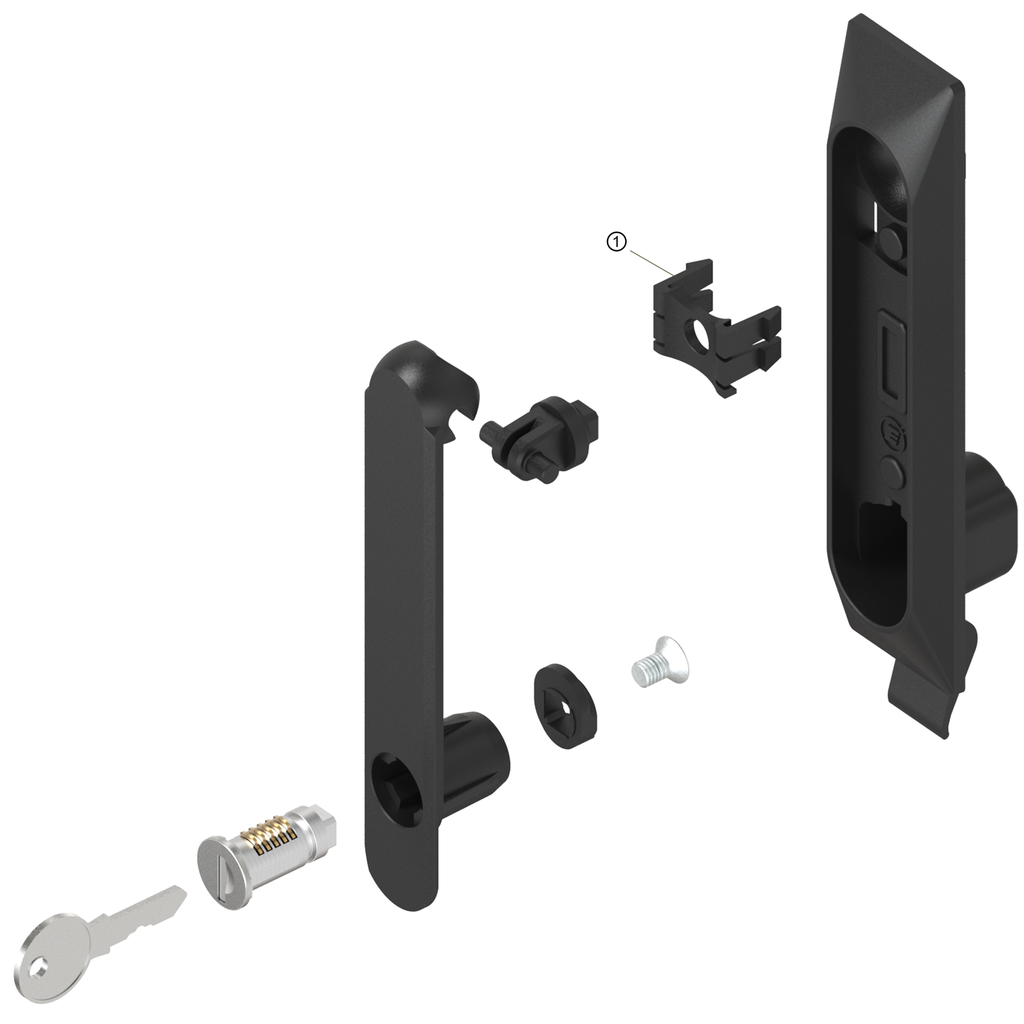

① = Mounting aid clip-fastener are used in combination with an adapter for cam 1150-U71.
Do not use when used with bar lock.
Internal Reference:
1150-U66-01
Standards:
Protection class IP 30
Barcode:
1150-U00066-0000001
Product Type:
Swinghandle, Lifthandle
Program:
1150
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing,Outside the sealing
Handle Art(1):
Swinghandle

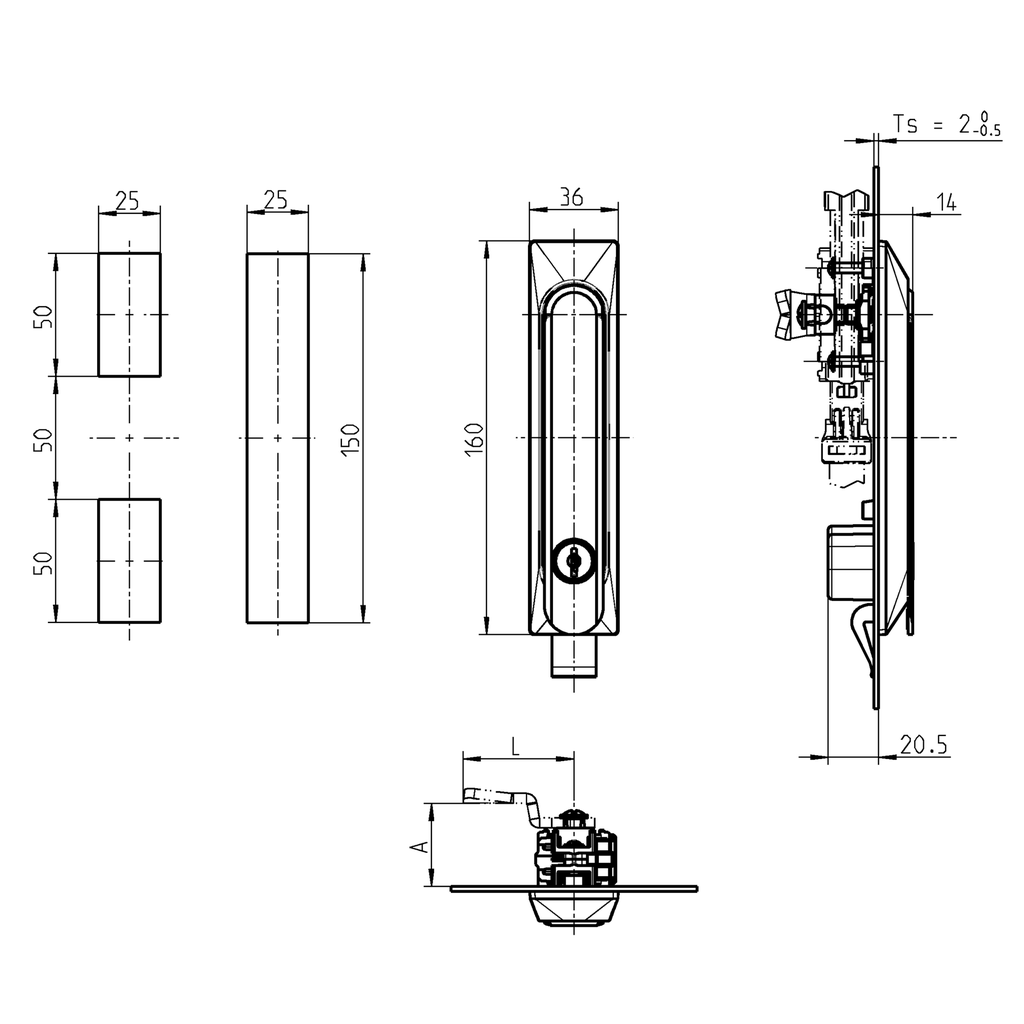

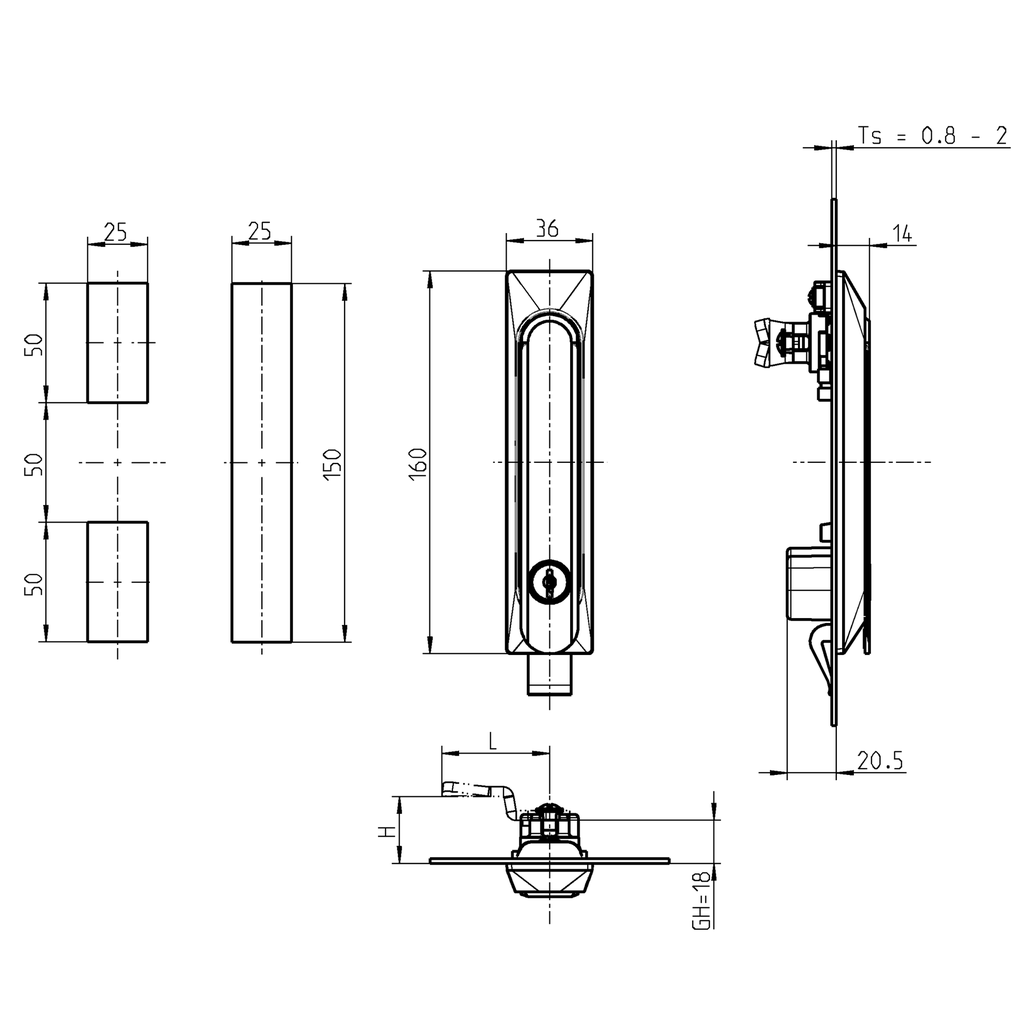

Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
14 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right

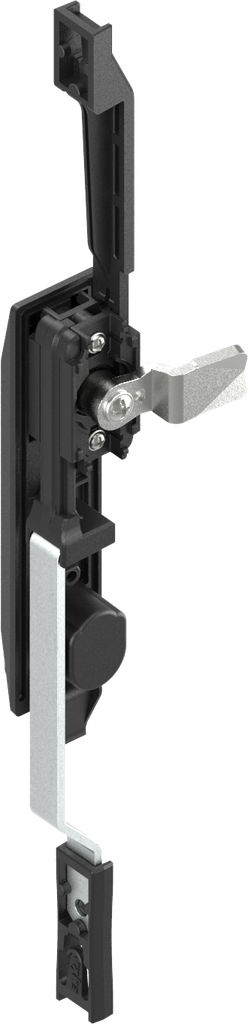

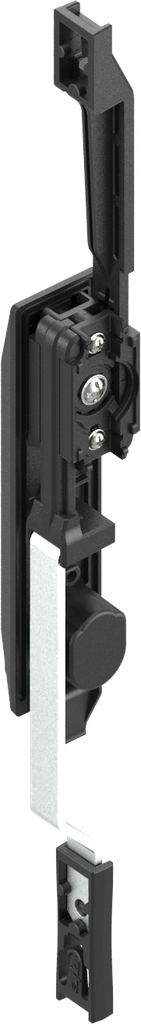

Locking components:
Cam,Rod control
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
