Swinghandle 1150 with universal dish, keyed EK 333, and for padlock, Stainless steel AISI 316
Swinghandle 1150 with universal dish, keyed EK 333, and for padlock, Stainless steel AISI 316
Swinghandle 1150 with universal dish, keyed EK 333, Stainless steel AISI 316
Swinghandle 1150 with universal dish, keyed EK 333, Stainless steel AISI 316

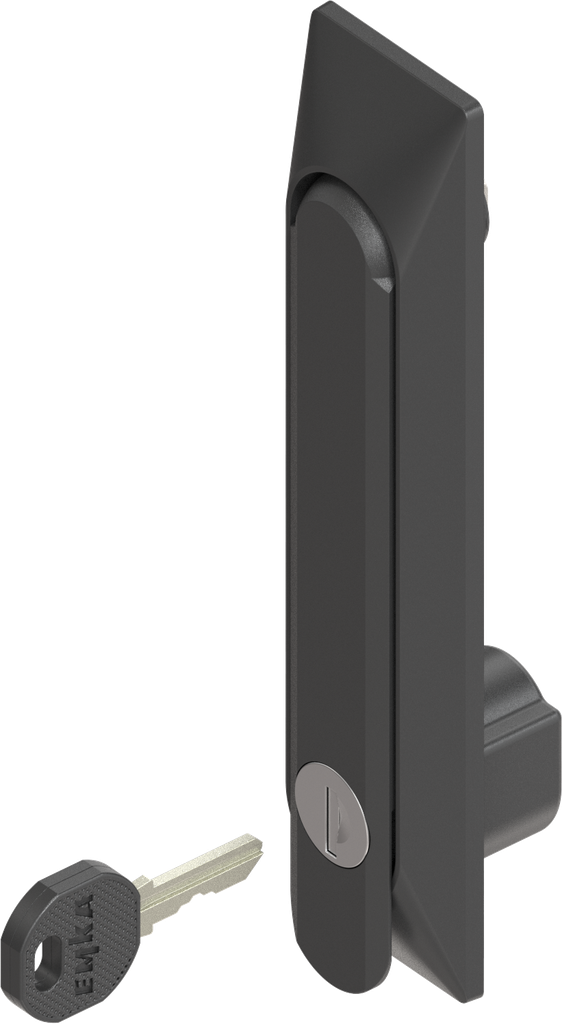

Swinghandle 1150 with universal dish, keyed EK 333, Polyamide and zinc die black powder-coated; 1150-U33-22

https://www.emka.com/products/1150-u33-22 https://www.emka.com/web/image/product.template/64903/image_1920?unique=1876049


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Left Right


    Product information:

    Attention:
    Please order fixing material separately!
    Ts = 1 to 3 mm depending on the fixing material

    On request:
    - Key of round cylinder not removable in open position

    Internal Reference: 1150-U33-22
    Product Type: Swinghandle, Lifthandle
    Program: 1150
    Catalog sheet: 3C-740
    Material of the module : Polyamide and zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 3 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Swivel Handle: 14 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam,Rod control
    No Specifications
    View All Products
    Cam
    Rod control
    Keys
    Rod control
    Fixing material for swinghandle
    Here you can find the product data sheets and CAD files of this product
