Swinghandle 1150, keyed EK 333, Polyamide and zinc die black powder-coated
Swinghandle 1150, keyed EK 333, Polyamide and zinc die black powder-coated
Swinghandle 1150, keyed EK 333, and for padlock, Zinc die black powder-coated
Swinghandle 1150, keyed EK 333, and for padlock, Zinc die black powder-coated

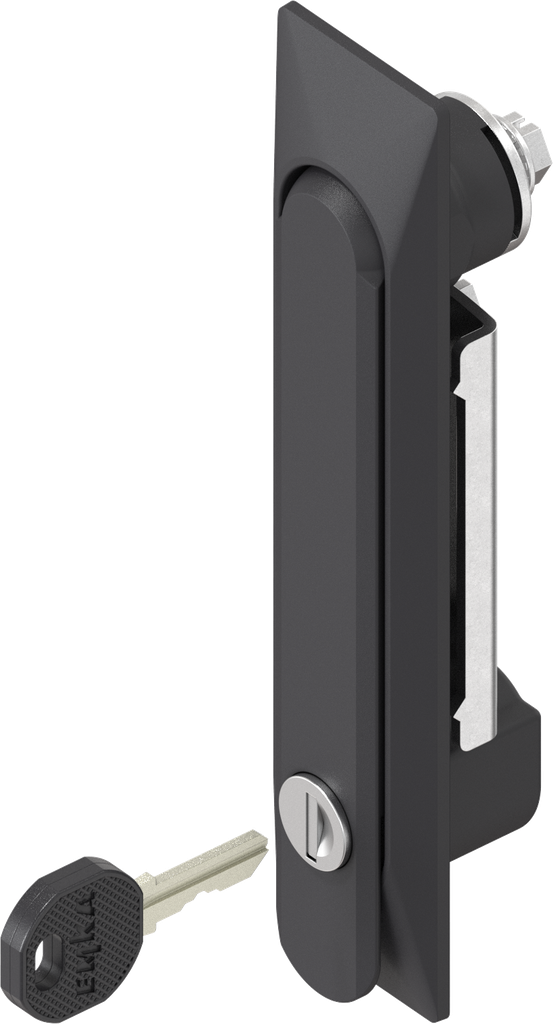

Swinghandle 1150, keyed EK 333, Zinc die black powder-coated; 1150-U2

https://www.emka.com/products/1150-u2 https://www.emka.com/web/image/product.template/64862/image_1920?unique=c213b24


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 Left Right


    Internal Reference: 1150-U2
    Product Type: Swinghandle, Lifthandle
    Program: 1150
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    GH Mass: 20 mm
    Handle Art(1): Swinghandle
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Swivel Handle: 9 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Door thickness: 2 mm
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Rod control

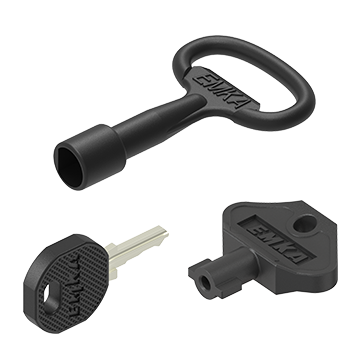

    Keys
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3C-120
    Product data sheet
    CAD file | 1150-U2_igs
    CAD file | 1150-U2_stp
