Swinghandle 1150 with universal dish with insert double bit 5, Polyamide GF black
Swinghandle 1150 with universal dish with insert double bit 5 and for padlock, Polyamide and zinc die black powder-coated

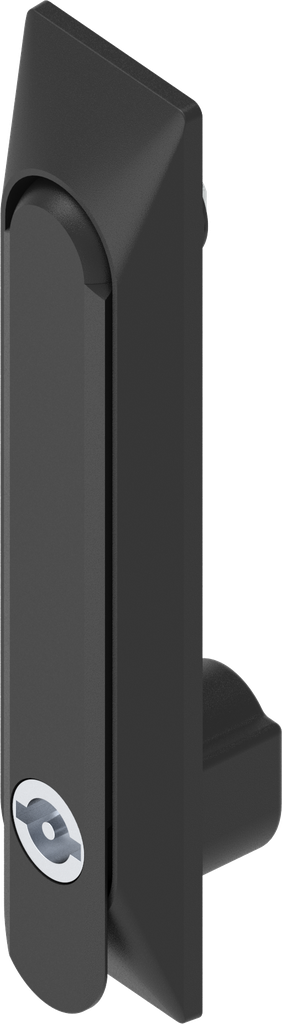

Swinghandle 1150 with universal dish with insert double bit 5, Polyamide and zinc die black powder-coated; 1150-U15-12
This product has no valid combination.
Product information:
Attention:
Please order fixing material separately!
Ts = 1 to 3 mm depending on the fixing material
On request:
- Key of round cylinder not removable in open position
- Other insert
- Handle blank (without locking set)
Internal Reference:
1150-U15-12
Barcode:
1150-U00015-0000012
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-720
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Type of actuation:
Double bit 5
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Insert
Swivel Handle:
14 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
