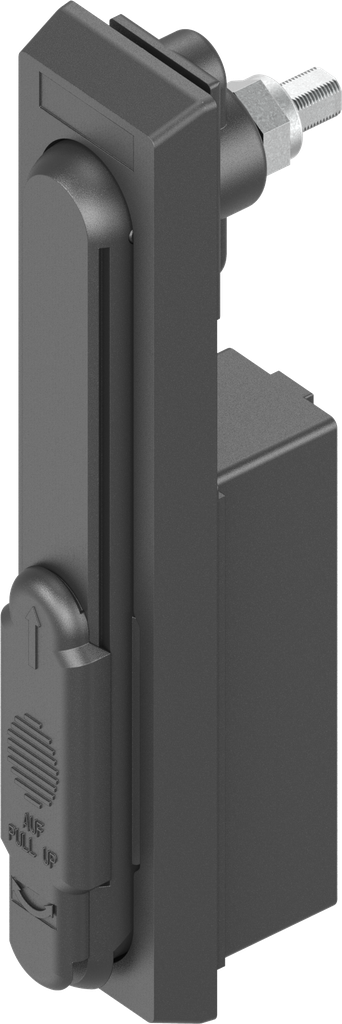

Double cylinder swinghandle with 1-key-operation, Polyamide GF black
Swinghandle for padlock and profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Internal Reference:
1125-U57-A
Standards:
Protection class IP 65
Barcode:
1125-U00057-000000A
Product Type:
Swinghandle, Lifthandle
Program:
1125
Catalog sheet:
3B-320
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
Two locking sets, 1-key-operation
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Without locking set:
Profile half cylinder, blind plug without spring-loaded ball
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
10 mm
Locking set:
Profile half cylinder A = 30,Profile half cylinder A = 35
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
21 mm
Pan Handle Length:
210 mm
Door Version :
Left,Right
Locking components:
Cam
