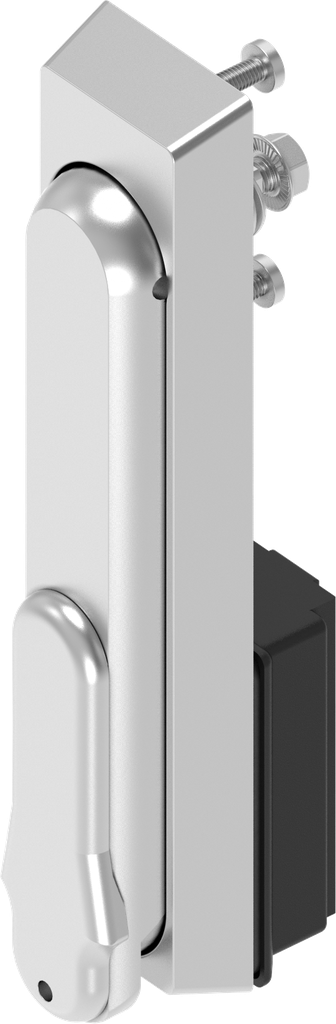

Swinghandle for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316; 1125-U191-APH

https://www.emka.com/products/1125-u191-aph https://www.emka.com/web/image/product.template/64667/image_1920?unique=8e60f53


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 66 Left Right


    Internal Reference: 1125-U191-APH
    Product Type: Swinghandle, Lifthandle
    Program: 1125
    Catalog sheet: 3B-220
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Attachment of the trough: Screw-on cap IP 66
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Cloak: Yes
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Sealable: Yes
    Locking set: Profile half cylinder A = 30
    locking set cover: Yes
    Key Removable: Key can be withdrawn in any handle position
    Swivel Handle: 21 mm
    Pan Handle Length: 160 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Profile half cylinder
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
