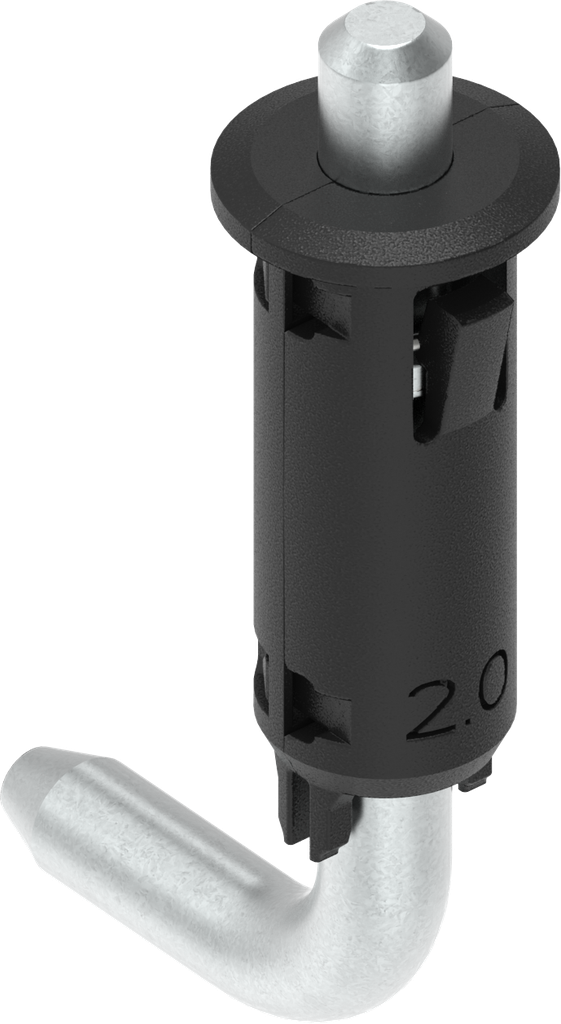

Pin hinge for Ts = 2 mm, Polyamide and zinc die black; 1117-U6-02

https://www.emka.com/products/1117-u6-02 https://www.emka.com/web/image/product.template/64272/image_1920?unique=0f7c045


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Product information:

    Attention:
    The pin hinge is for small doors only!

    Example:
    Electric meter and toolboxes.

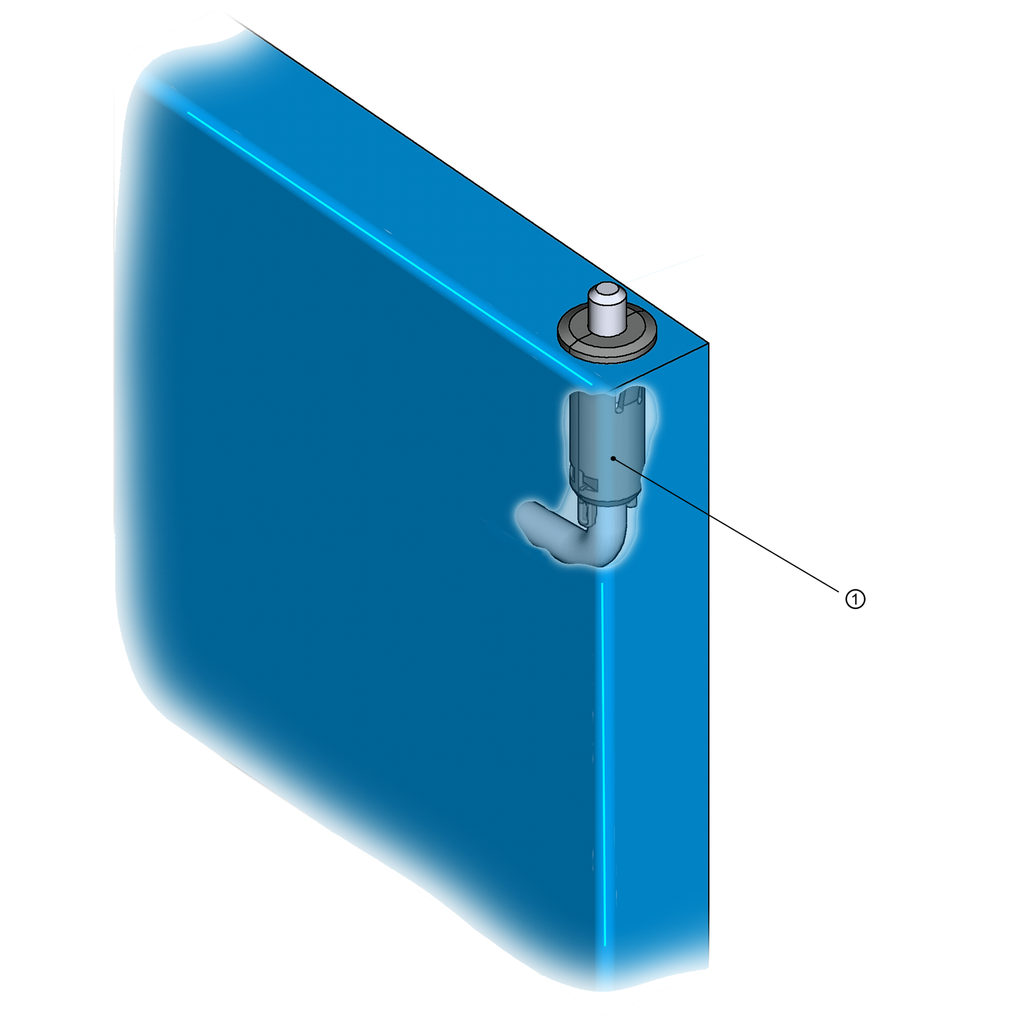

    ① Door depicted transparent in the the area of the hinge

    Internal Reference: 1117-U6-02
    Product Type: Hinge
    Program: 1117
    Catalog sheet: 4C-130
    Material of the module : Polyamide and zinc die
    Surface of the module: black
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: clamp-on / clip fix
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets,In-line cabinets with single door
    pin hinge: Yes
    Door position: concealed,prominent
    Door Version : Left,Right
    Thickness: 2 mm
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
