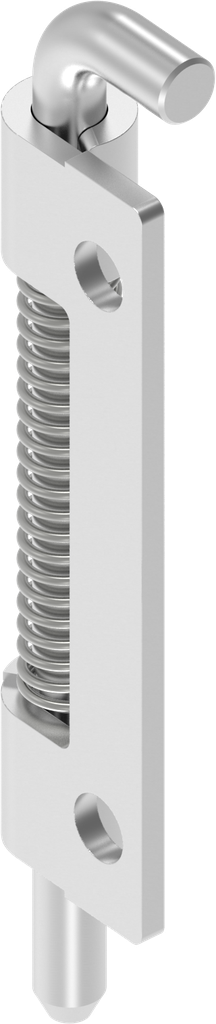

Pin hinge, Stainless steel AISI 304; 1117-U5-PC

https://www.emka.com/products/1117-u5-pc https://www.emka.com/web/image/product.template/64270/image_1920?unique=5b98a0c


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Internal Reference: 1117-U5-PC
    Product Type: Hinge
    Program: 1117
    Catalog sheet: 4C-120
    Material of the module : Stainless steel AISI 304
    Door return variable: Yes
    Detachable: without tools
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets,In-line cabinets with single door
    pin hinge: Yes
    Door position: concealed,prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
