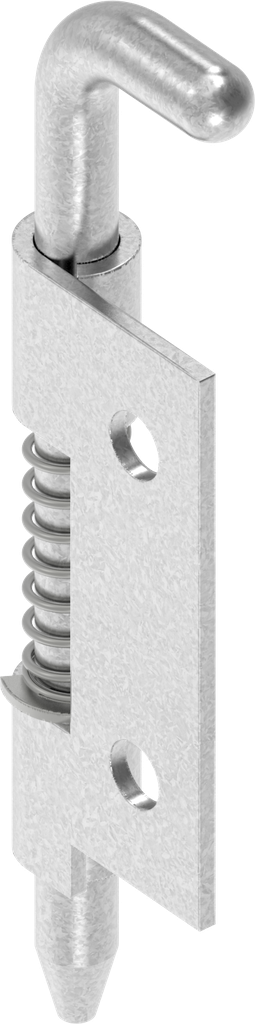

Pin hinge, left version, Steel zinc-plated; 1117-U3

https://www.emka.com/products/1117-u3 https://www.emka.com/web/image/product.template/64266/image_1920?unique=f37162f


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Internal Reference: 1117-U3
    Product Type: Hinge
    Program: 1117
    Catalog sheet: 4C-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets,In-line cabinets with single door
    pin hinge: Yes
    Door position: concealed,prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
