180° Hinge with steel splint, Zinc die black powder-coated
180° Hinge with steel splint, Zinc die black powder-coated
180° Hinge, Zinc die pebble grey powder-coated
180° Hinge, Zinc die pebble grey powder-coated

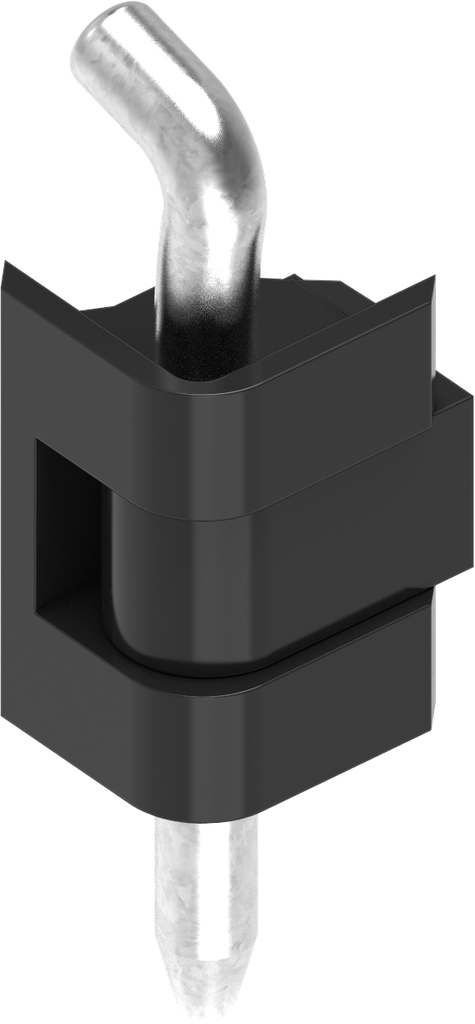

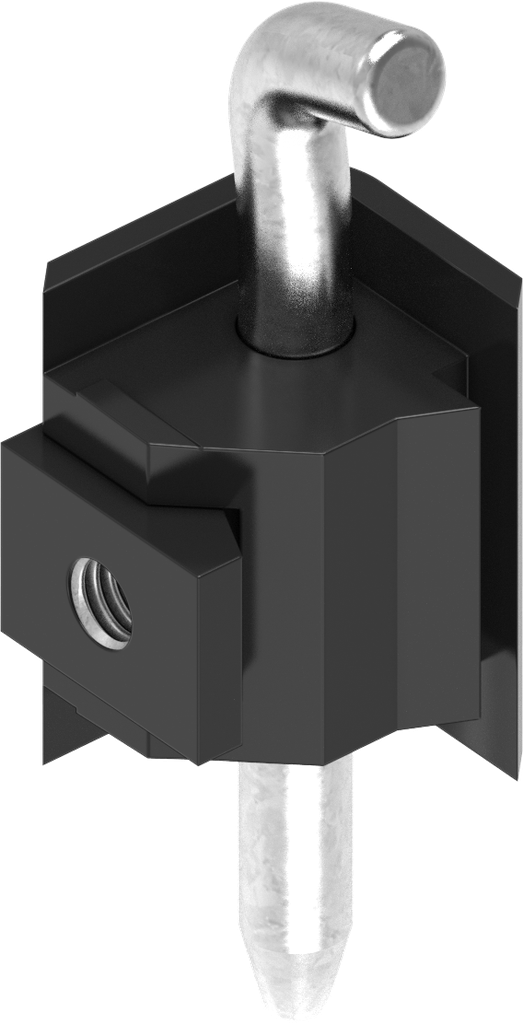

180° Hinge, Zinc die black powder-coated smooth gloss; 1110-U3-SAD

https://www.emka.com/products/1110-u3-sad-180-hinge-zinc-die-black-powder-coated-smooth-gloss-218868 https://www.emka.com/web/image/product.template/218868/image_1920?unique=7b3f28a

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1110-U3-SAD
    Barcode: 1110-u00003-0000SAD
    Product Type: Hinge
    Program: 1110
    Surface: black powder-coated smooth gloss
    Material of the module : Zinc die
    Surface of the module: black powder-coated smooth gloss

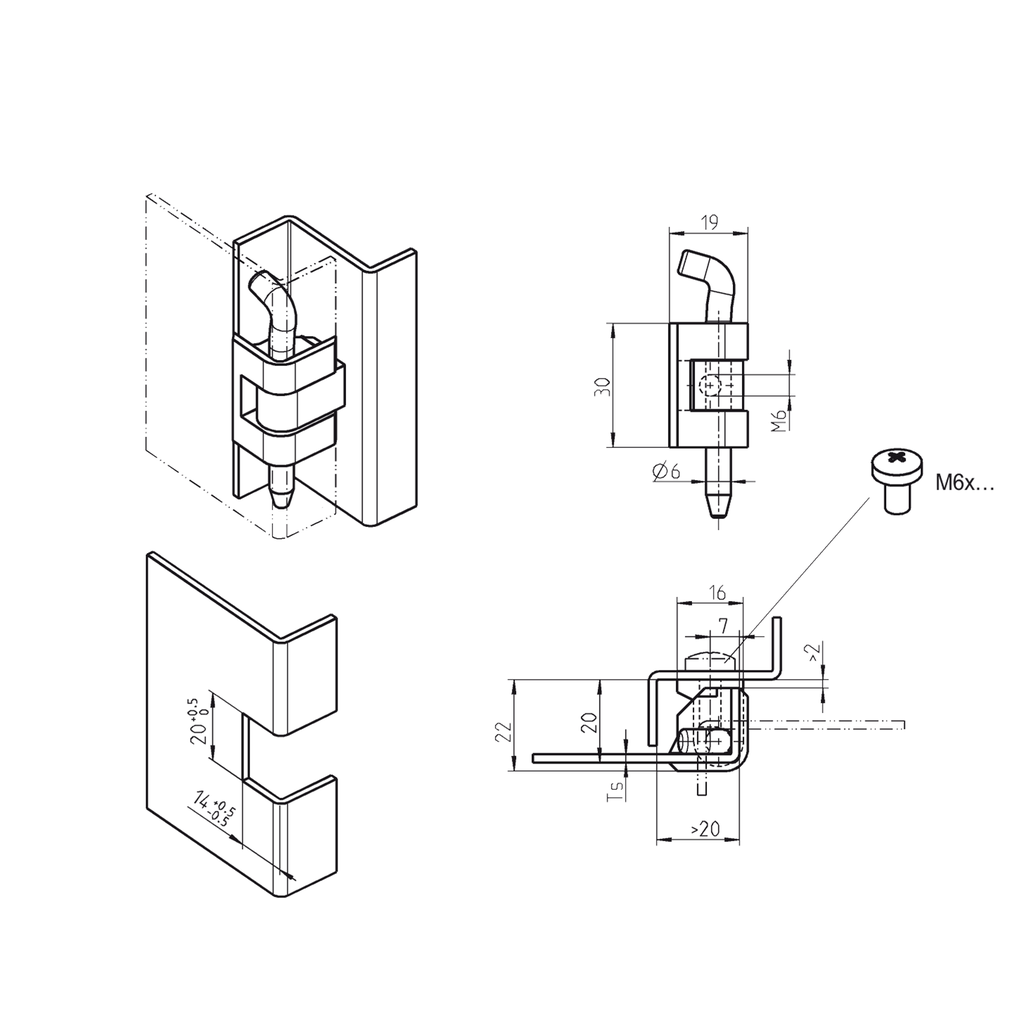

    Dimension A, Variable: 20 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
