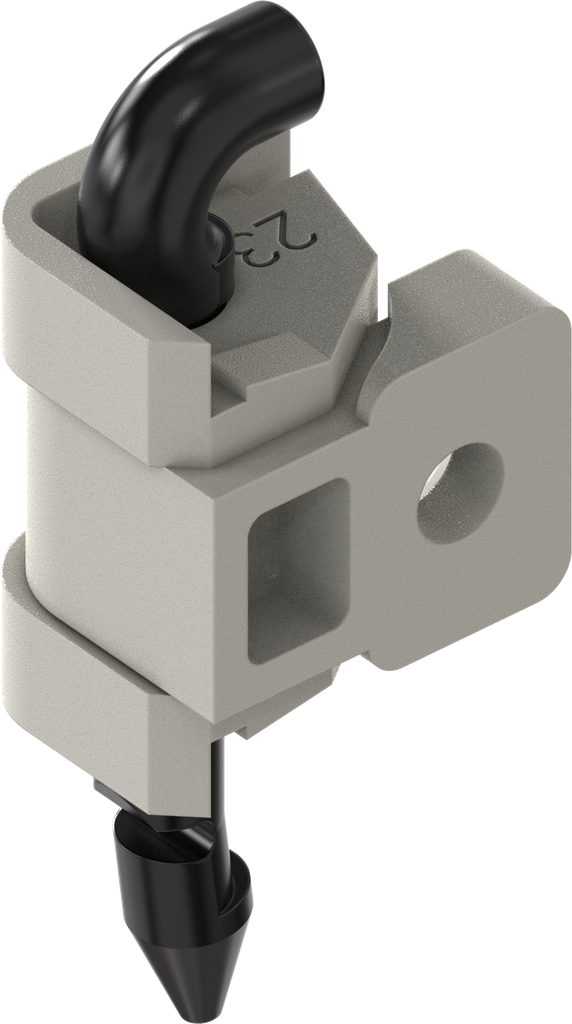

180° Hinge, Polyamide GF off-white; 1110-U23-BC

https://www.emka.com/products/1110-u23-bc-180-hinge-polyamide-gf-off-white-218893 https://www.emka.com/web/image/product.template/218893/image_1920?unique=1ea4c66

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1110-U23-BC
    Barcode: 1110-U00023-00000BC
    Product Type: Hinge
    Program: 1110
    Material of the module : Polyamide GF
    Surface of the module: off-white

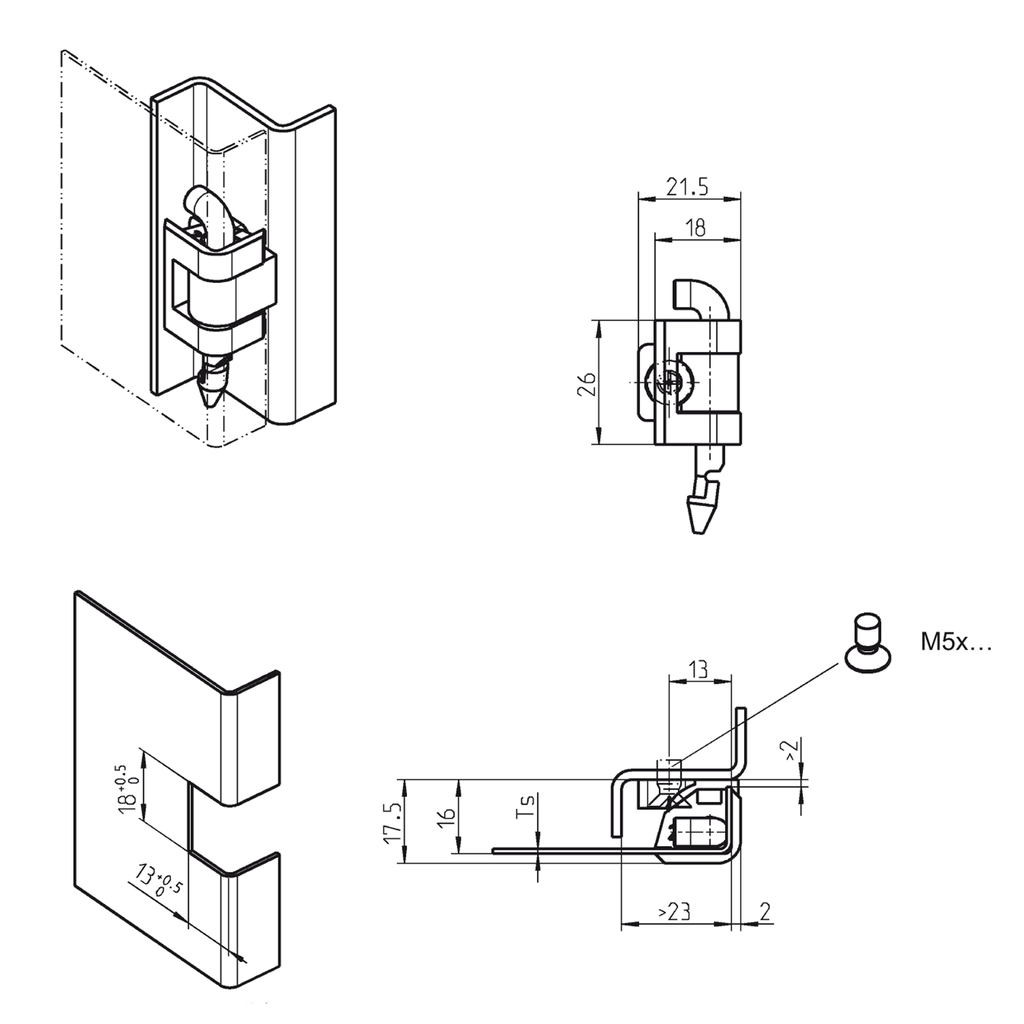

    Dimension A, Variable: 16 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M5
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 1.25 mm
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
