180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316
Pin hinge for Ts = 1.5 mm, Polyamide and zinc die black
Pin hinge for Ts = 1.5 mm, Polyamide and zinc die black

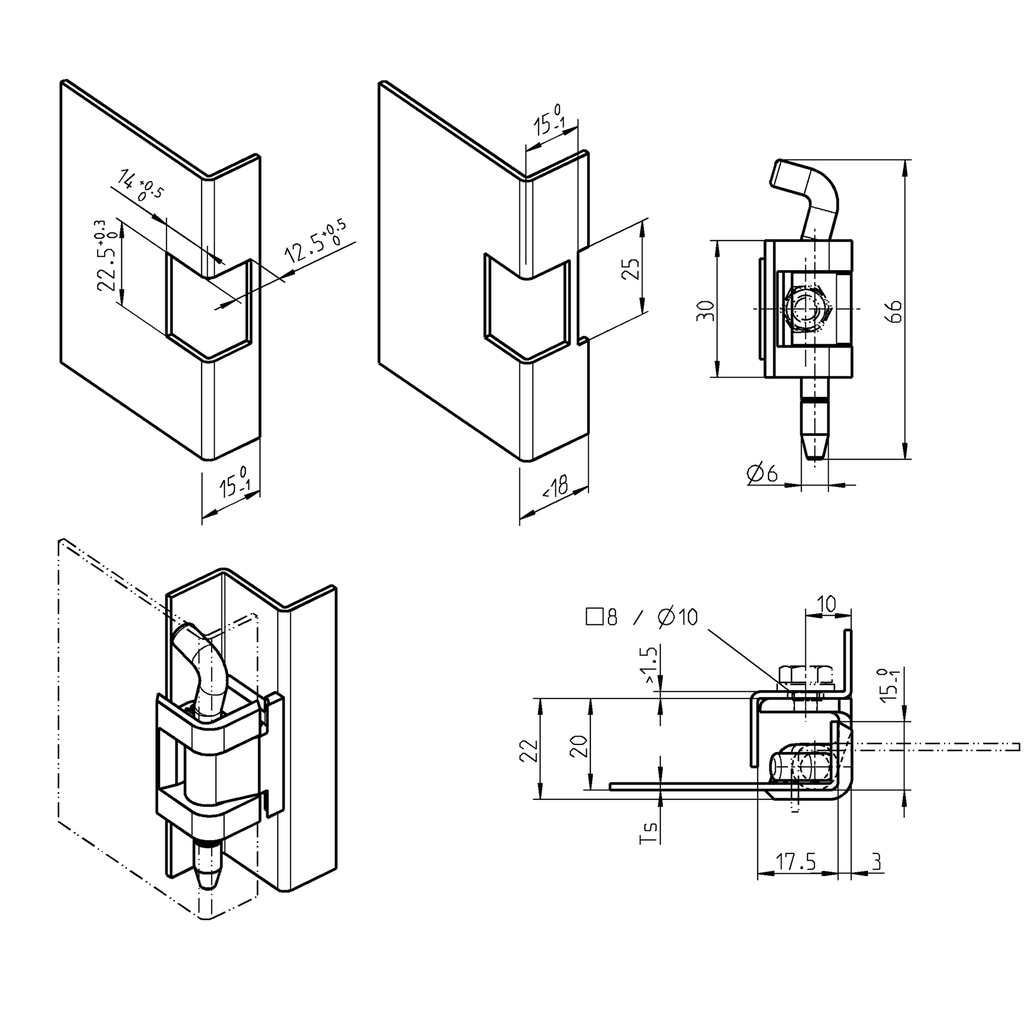

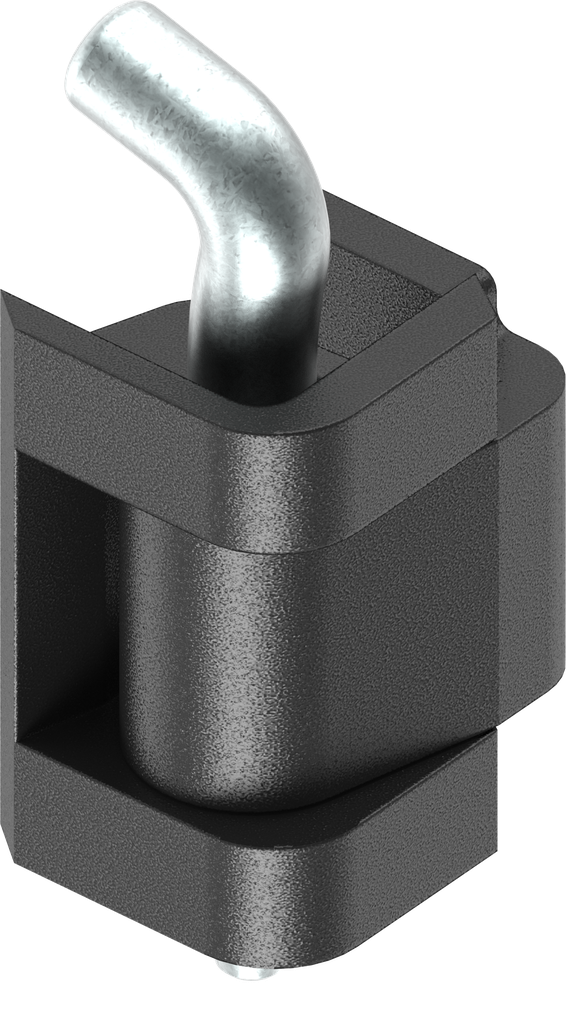

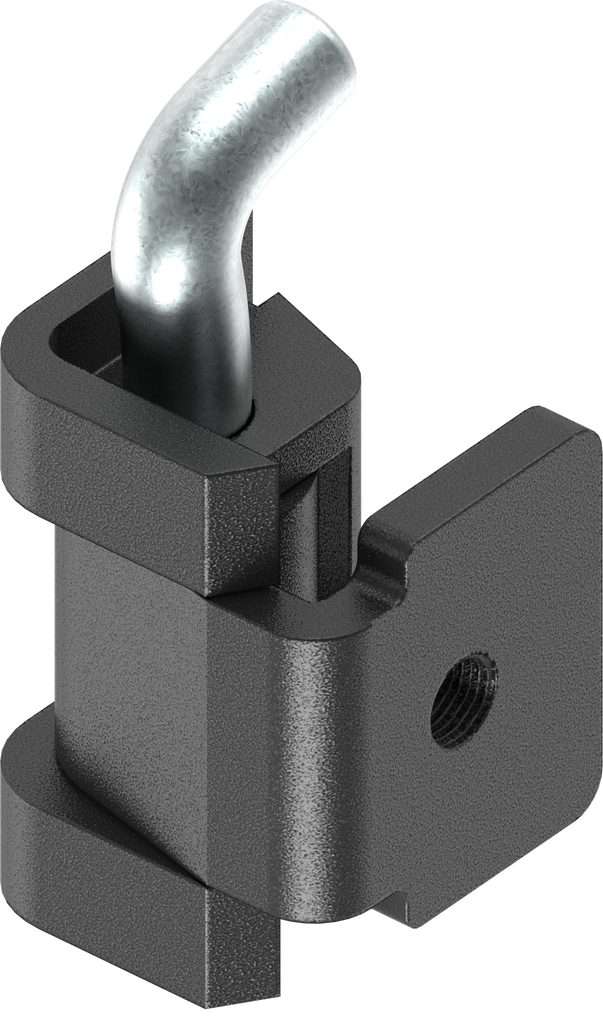

180° Hinge, Zinc die and steel black powder-coated; 1110-U141-U

https://www.emka.com/products/1110-u141-u-180-hinge-zinc-die-and-steel-black-powder-coated-218948 https://www.emka.com/web/image/product.template/218948/image_1920?unique=752bf53

unassembled, packed according to type

    This combination does not exist.

    Single cabinets Left Right
    Internal Reference: 1110-U141-U
    Barcode: 1110-U00141-000000U
    Product Type: Hinge
    Program: 1110
    Material of the module : Zinc die and steel
    Surface of the module: black powder-coated
    Dimension A, Variable: 20 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
