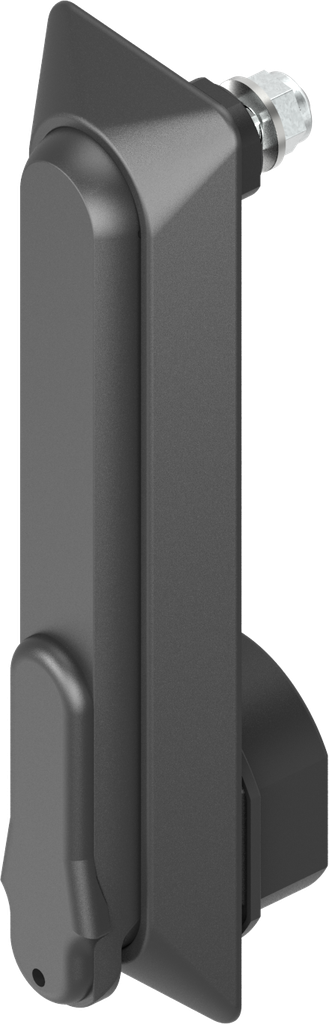

Swinghandle "long" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
3-point cam, Steel zinc-plated
Swinghandle "long" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1107-U2-G
for cam
Product information:
When using the adapter ring the max. door gauge (Ts) will be 6 mm.
When using door gauge (Ts) > 4 mm standard round rods cannot be used!
Order screw set 1107-U170 for Ts = 4 - 12 mm separately
Internal Reference:
1107-U2-G
Standards:
Protection class IP 65
Barcode:
1107-U00002-000000G
Product Type:
Swinghandle, Lifthandle
Program:
1107
Catalog sheet:
3A-120
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Without locking set:
Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Sealable:
Yes
Locking set:
Profile half cylinder A = 30
locking set cover:
Yes
Swivel Handle:
20 mm
Pan Handle Length:
190 mm
Door Version :
Left,Right
Locking components:
Cam
