3-point cam, Steel zinc-plated
Rod control, Steel zinc-plated

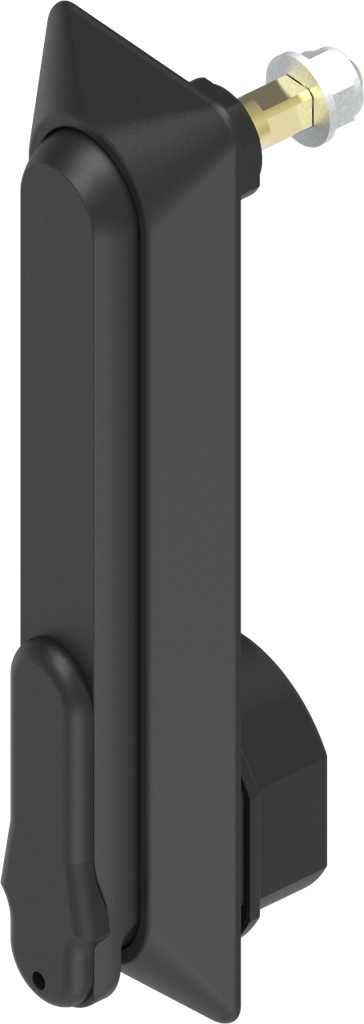

Swinghandle "long" for rod control and profile half cylinder (A = 30 mm), Polyamide GF black; 1107-U14-G
for rod control
Product information:
Ts = 4 to 11 mm on request
Internal Reference:
1107-U14-G
Standards:
Protection class IP 65
Barcode:
1107-U00014-000000G
Product Type:
Swinghandle, Lifthandle
Program:
1107
Catalog sheet:
3A-220
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Without locking set:
Profily half cylinder blind plug with spring-loaded ball
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
4 mm
Sealable:
Yes
Locking set:
Profile half cylinder A = 30
locking set cover:
Yes
Swivel Handle:
20 mm
Pan Handle Length:
190 mm
Door Version :
Left,Right
Locking components:
Rod control
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
