Latch-Hinge small with pressure relief, Polyamide GF black
Latch-Hinge small with pressure relief, Polyamide GF black
Emergency opening for Latch-Hinge, Polyamide GF black
Emergency opening for Latch-Hinge, Polyamide GF black

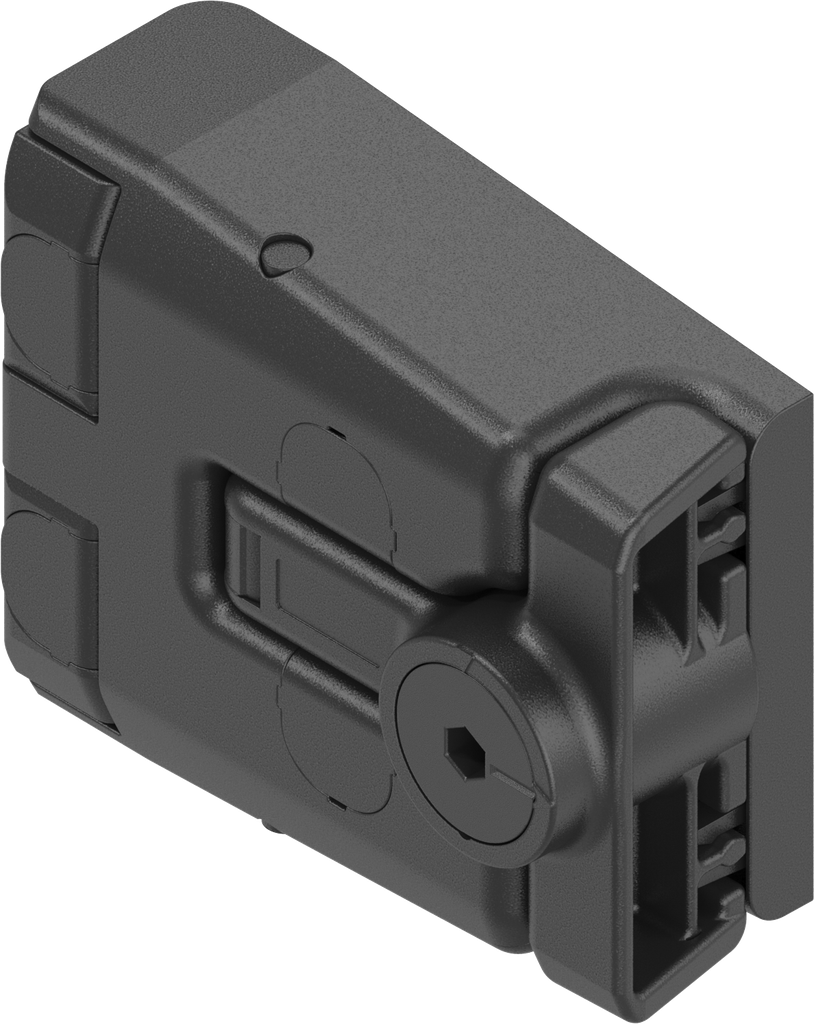

Latch-Hinge small without pressure relief, Polyamide GF black; 1091-U169

https://www.emka.com/products/1091-u169 https://www.emka.com/web/image/product.template/62176/image_1920?unique=9c6f97c


    This combination does not exist.

    Single cabinets In-line cabinets with single door Outside the sealing Left Right


    Product Benefits:

    • Due to the favourable centre of rotation of the handle a compression of the seal of 5 mm is possible with low opening and closing force
    • The door / panel can be removed by unlatching the handles on both sides
    • 2D adjustable (tolerance compensation)
    • Latch-Hinge can be mounted as one piece with the door / panel in place
    • Right or left hinged
    • Hinge 180° opening angle
    • Optionally, available with safety function "pressure relief" 1x per locking side
    • Patented
    • ATEX compliant explosion protection version available on request

    Product information:

    ① = Centre of rotation
    ② = View without screw covers

    Internal Reference: 1091-U169
    Product Type: Other latch
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: black
    Article with property rights: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Type of actuation: Hexagon female SW 4
    Mounting Positions : Outside the sealing
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Locking set: Insert
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Lock Type: Latch-Hinge
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
