Outside handle keyed EK 333, Polyamide GF black

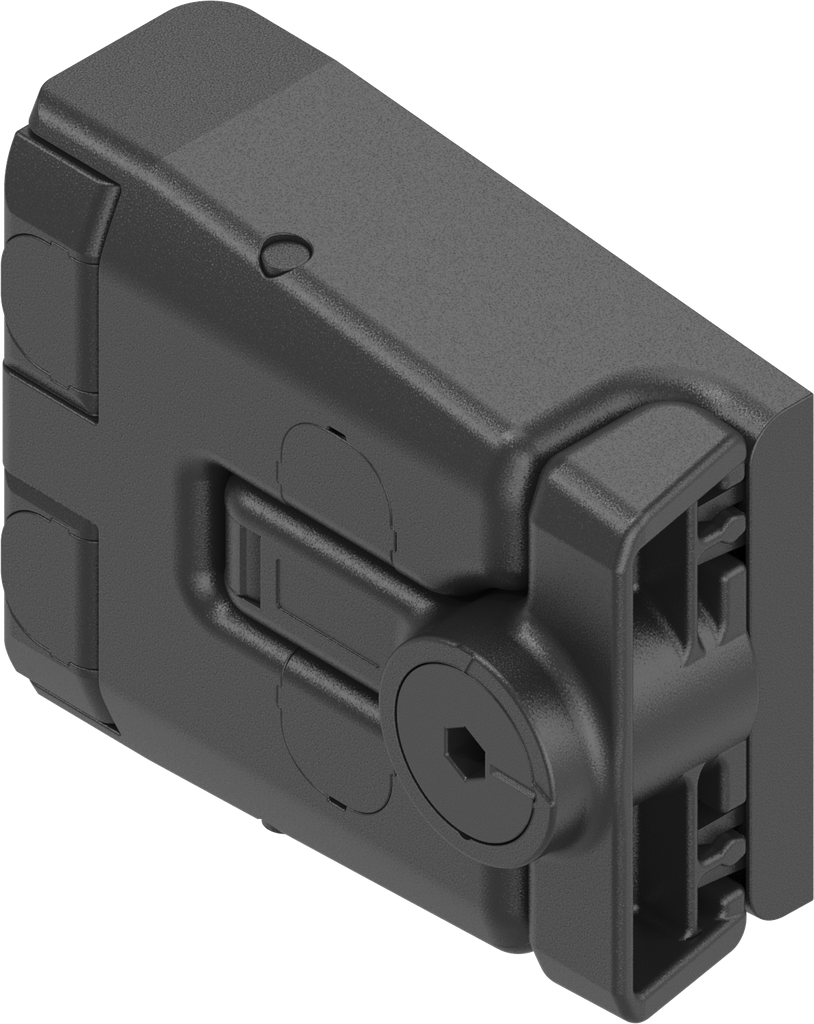

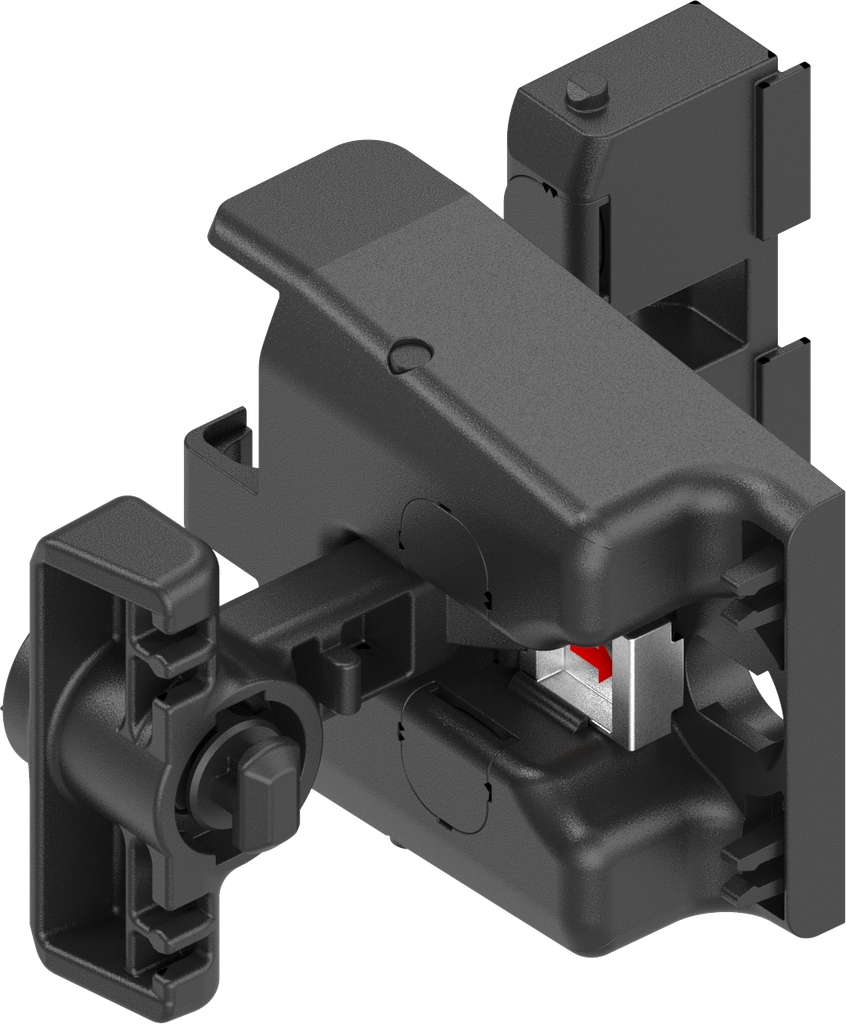

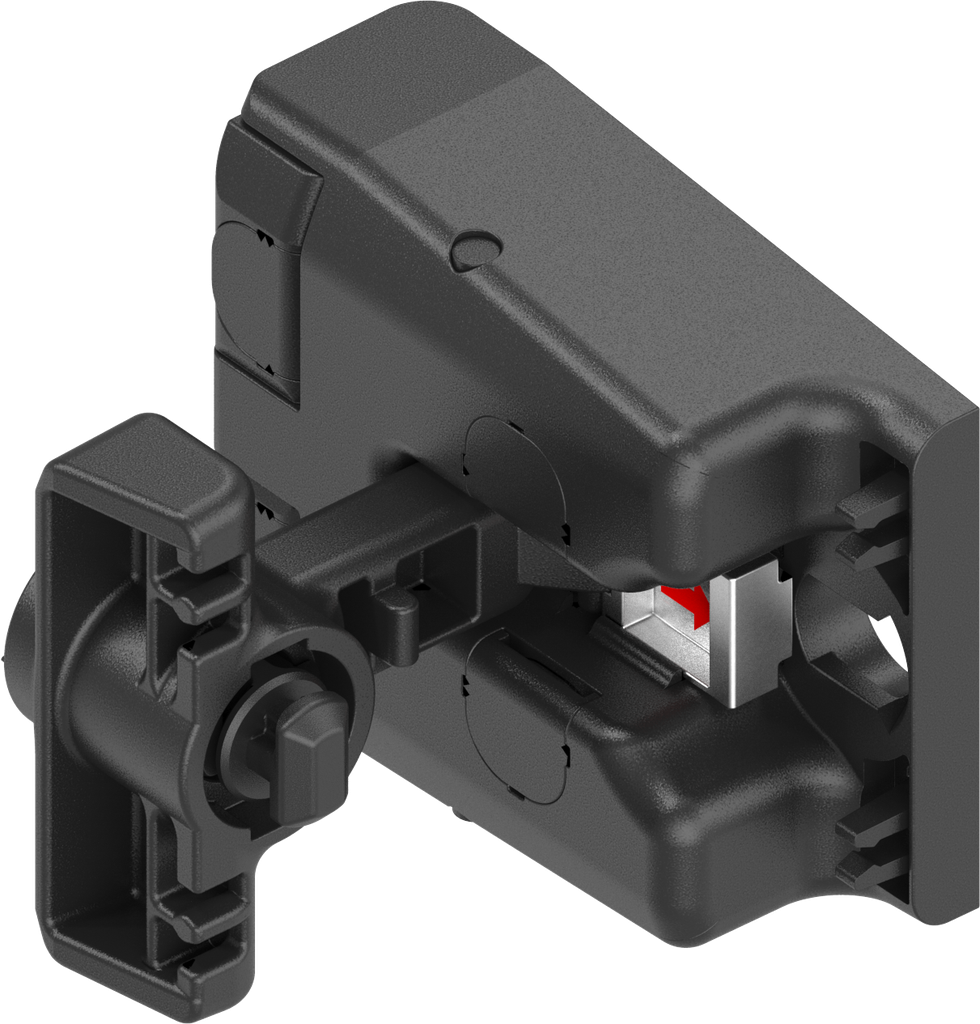

Latch-Hinge small without pressure relief, Polyamide GF black
Product Benefits:

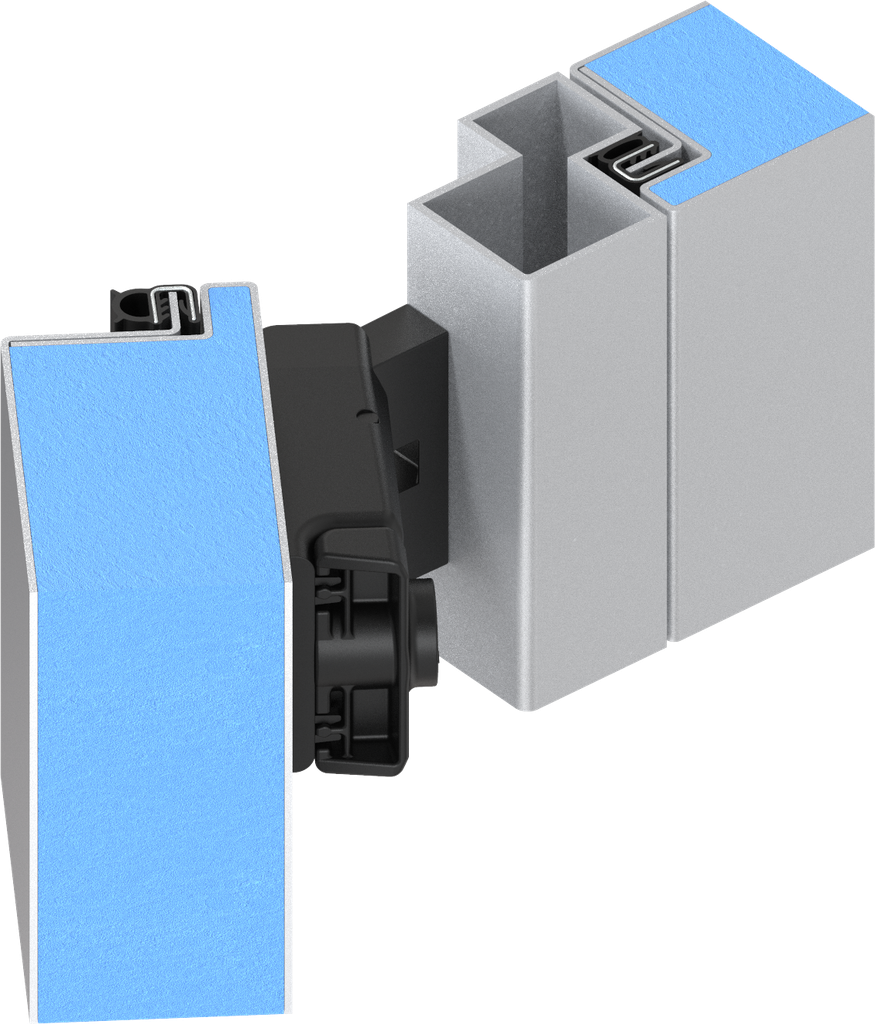

- Due to the favourable centre of rotation of the handle a compression of the seal of 5 mm is possible with low opening and closing force

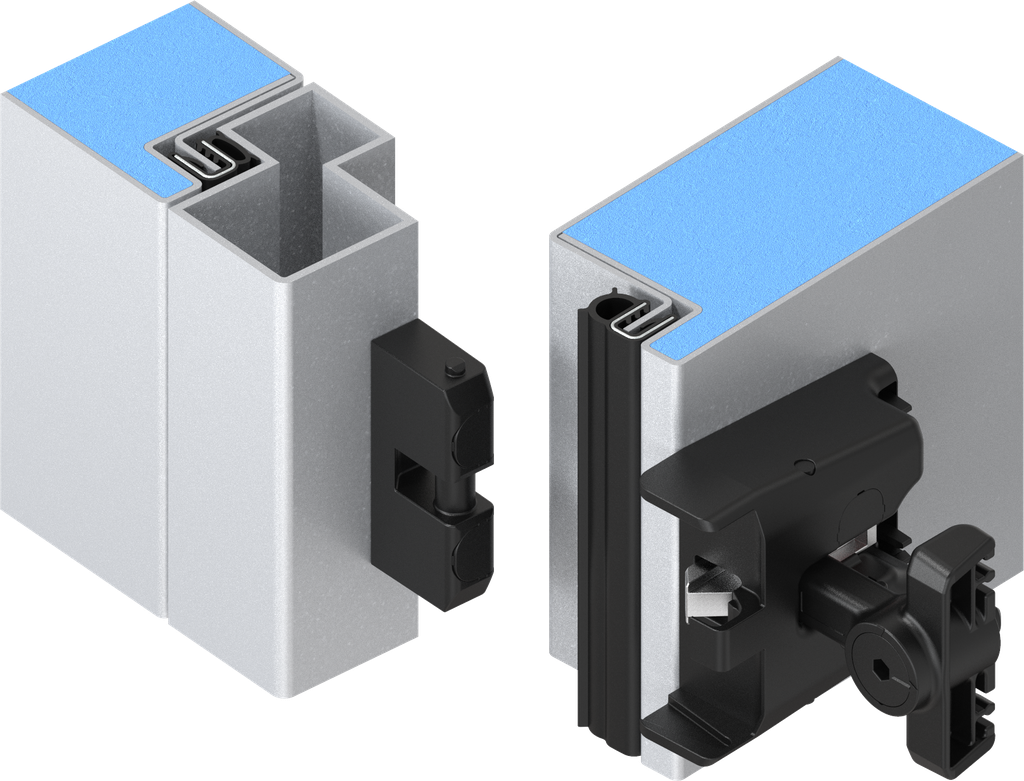

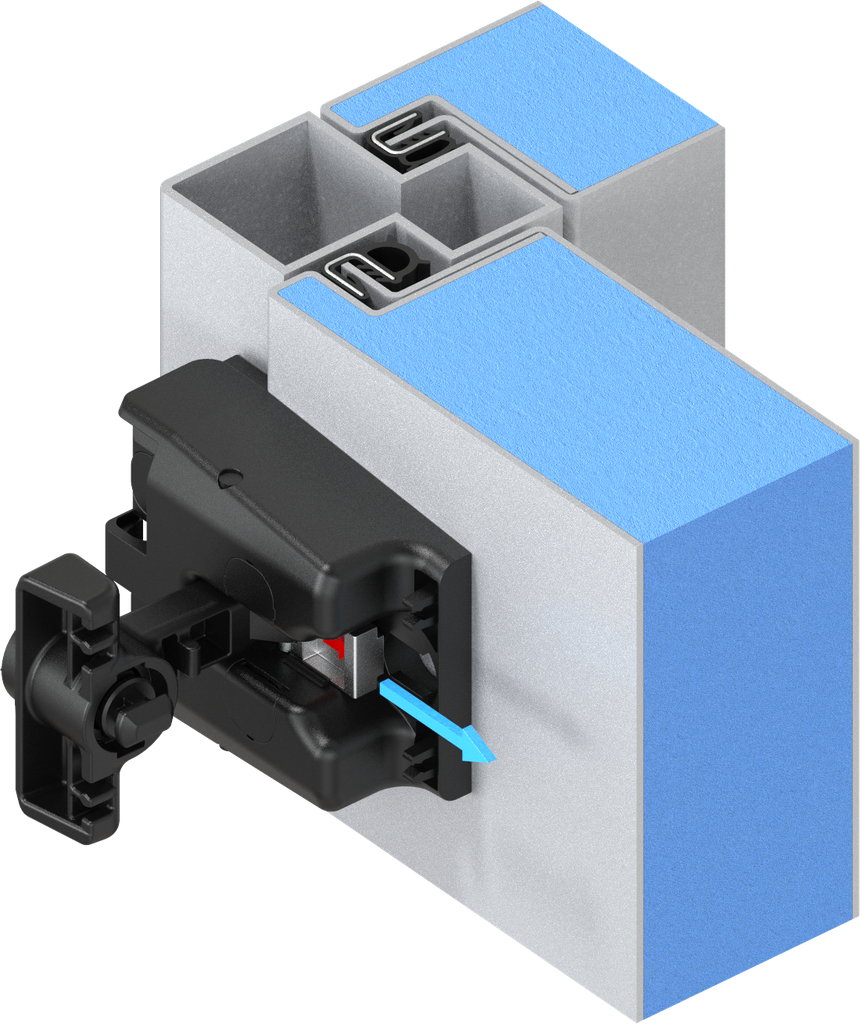

- The door / panel can be removed by unlatching the handles on both sides
- 2D adjustable (tolerance compensation)

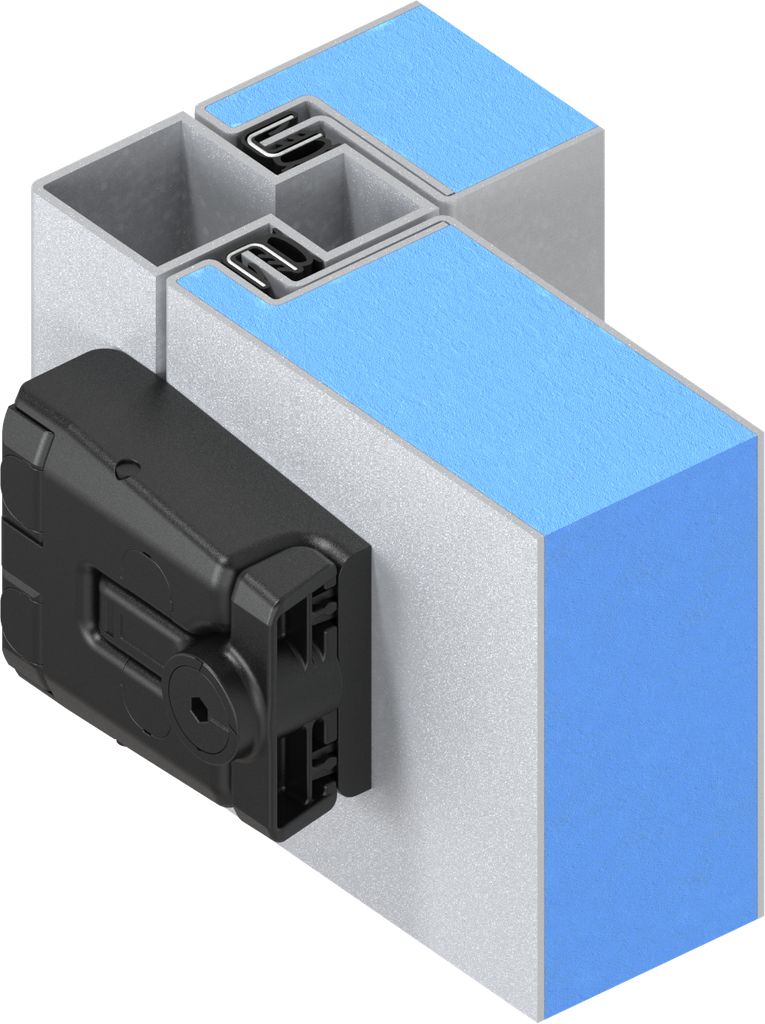

- Latch-Hinge can be mounted as one piece with the door / panel in place
- Right or left hinged
- Hinge 180° opening angle
- Optionally, available with safety function "pressure relief" 1x per locking side
- Patented
- ATEX compliant explosion protection version available on request
Product information:
Use latch-hinge with pressure relief 1x per locking side

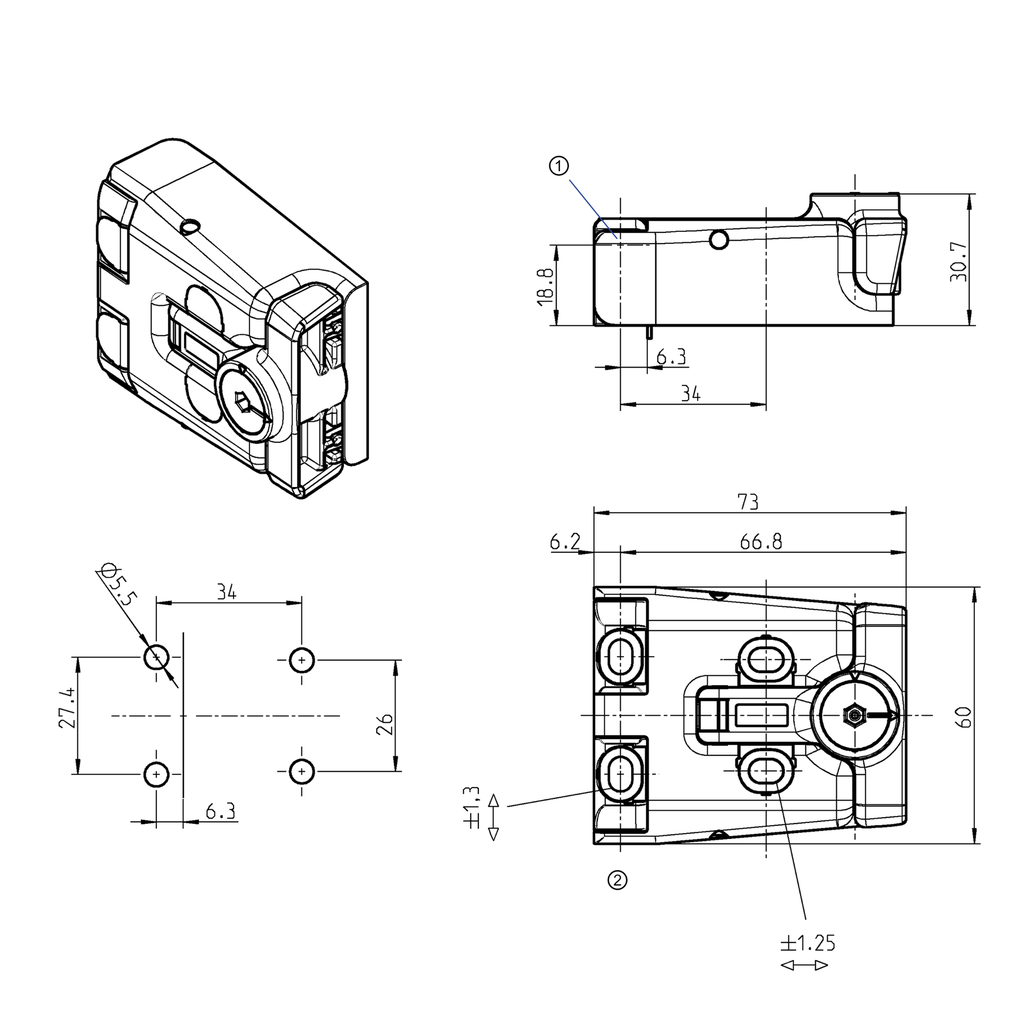

① = Centre of rotation
② = Viwe without screw covers
Internal Reference:
1091-U168
Barcode:
1091-U00168-0000000
Product Type:
Other latch
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Article with property rights:
Yes
Detachable:
without tools
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Type of actuation:
Hexagon female SW 4
Mounting Positions :
Outside the sealing
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Locking set:
Insert
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Lock Type:
Latch-Hinge
