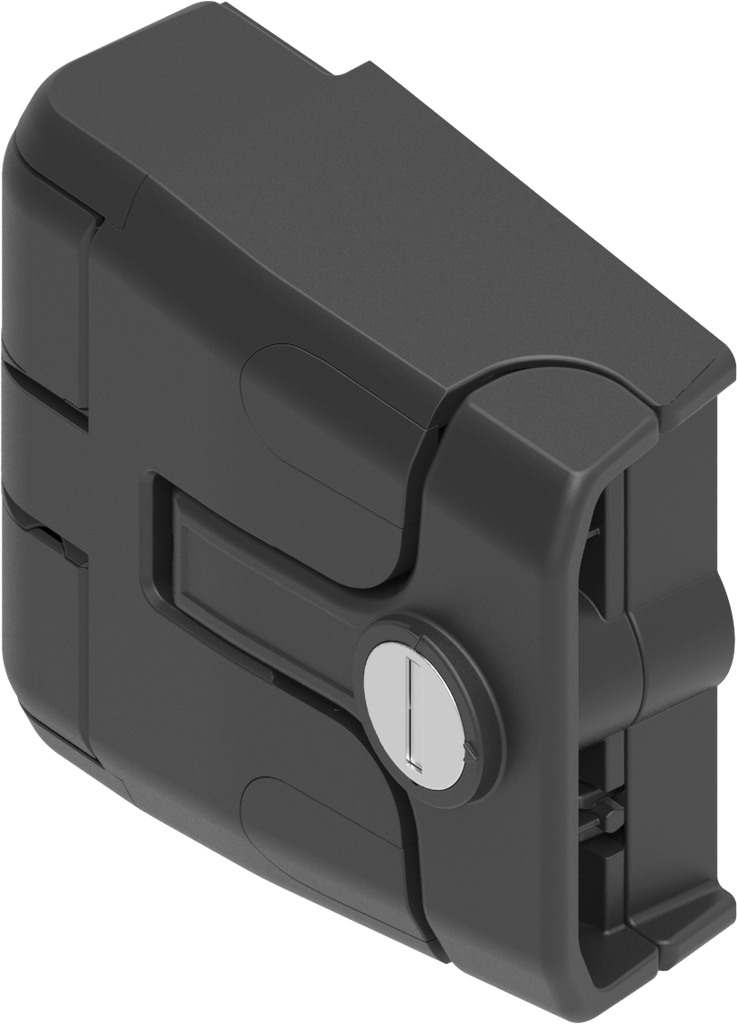

Latch-Hinge without pressure relief, keyed 9081, Polyamide GF black; 1091-U150

https://www.emka.com/products/1091-u150 https://www.emka.com/web/image/product.template/62166/image_1920?unique=9c6f97c


    This combination does not exist.

    Single cabinets In-line cabinets with single door Outside the sealing Left Right


    Product Benefits:

    • When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment
    • Compression (5 mm) with low opening and closing force due to ergonomic closing with the handles
    • Door / panel can be removed by unlatching the handles on both sides
    • 3D adjustable (tolerance compensation)
    • Latch-Hinge can be mounted as one piece with the door / panel in place
    • Right or left hinged
    • Hinge 180° opening angle
    • Optionally, available with safety function "pressure relief" 1x per locking side
    • Patented

    Product information:

    ① = Centre of rotation
    ② = Screws hexagon female SW 4 for height adjustment
    ③ = View without screw covers
    ④ = Compression adjustable on hinge frame part

    Internal Reference: 1091-U150
    Product Type: Other latch
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: black
    Article with property rights: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Mounting Positions : Outside the sealing
    Adjustable : 3D
    Compression Value : 5 mm
    Max Opening Angle: 180°
    Round Cylinder Type: Key system 9081
    Locking set: Round cylinder
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Lock Type: Latch-Hinge
