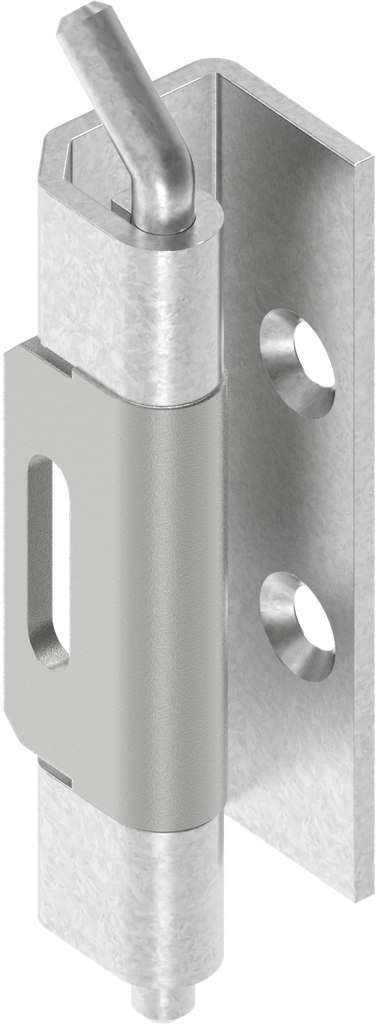

135° Hinge, Steel zinc-plated and raw; 1069-U8

https://www.emka.com/products/1069-u8 https://www.emka.com/web/image/product.template/61809/image_1920?unique=995c211

Roller m.s. raw for welding on


    This combination does not exist.

    Single cabinets Left Right


    Product information:

    Door cut out required

    Internal Reference: 1069-U8
    Product Type: Hinge
    Program: 1069
    Catalog sheet: 4A-134
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 25 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M5
    Max Opening Angle: 135°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
