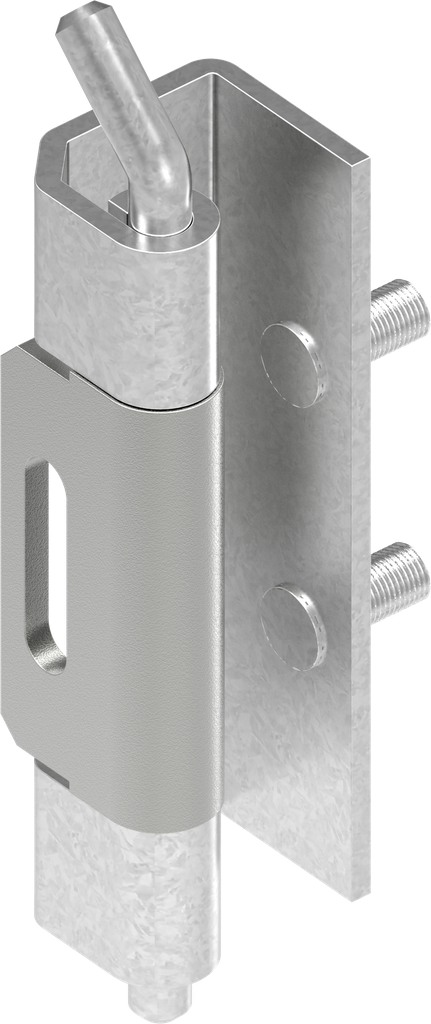

135° Hinge, Steel zinc-plated and raw
Product information:
Door cut out required
Internal Reference:
1069-U7
Barcode:
1069-U00007-0000000
Product Type:
Hinge
Program:
1069
Catalog sheet:
4A-134
Material of the module :
Steel
Surface of the module:
zinc-plated and raw
Dimension A, Variable:
25 mm
Detachable:
with tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from inside, with press-fit threaded studs M5 x 12
Max Opening Angle:
135°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Door thickness:
2 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
