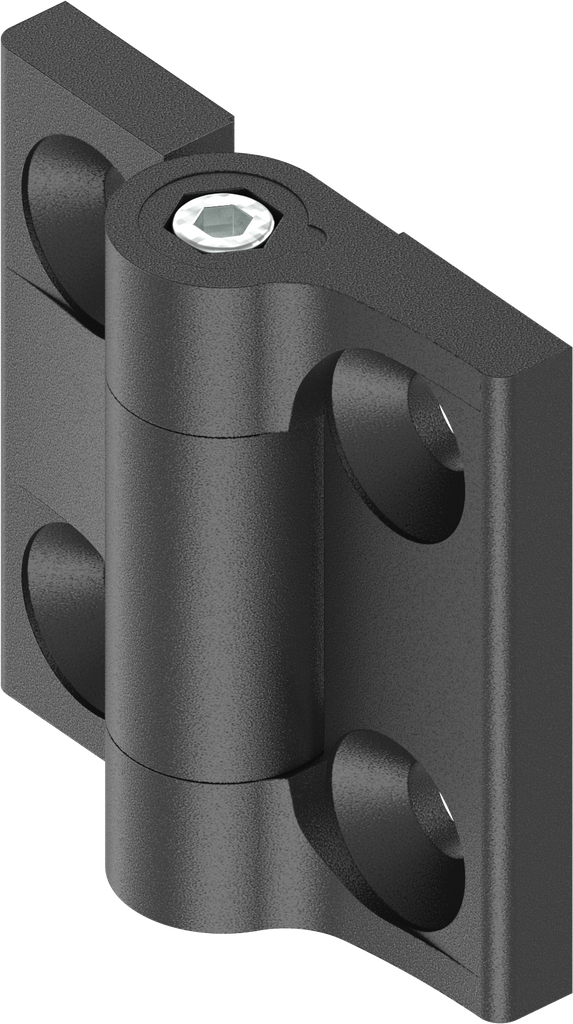

180° Torque hinge with adjustment function up to 6.5 Nm, Zinc die black powder-coated; 1056-U14-01

https://www.emka.com/products/1056-u14-01 https://www.emka.com/web/image/product.template/61714/image_1920?unique=63fbca1

Dimension 60 x 60 mm


    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right


    Product Benefits:

    • Adjustable torque
    • Constant torque across 180° adjustment range
    • Same torque while opening and closing
    • Torque adjustment may be necessary
    • Compatible with all hinges of the 1056 Program with identical cut out
    • Can replace door stops, cover stays or gas springs depending on installation location

    Product information:

    Number of hinges for flaps is dependent of height and weight of the flaps.

    ① = Door length
    ② = Door mass
    ③ = Gravity
    ④ = Torque hinge
    ⑤ = Total torque
    ⑥ = Number of hinges
    ⑦ = Formula: Total Torque
    ⑧ = Formula: Number of required hinges
    ⑨ = Ergebnis:

    Internal Reference: 1056-U14-01
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-185
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Torque hinge: Yes
    Hole pattern required in the door: Bore holes in the door
    Maximum tightening torque of screw: 1.5 Nm
    Maximum torque: up to ~ 6.5 Nm
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M8x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
