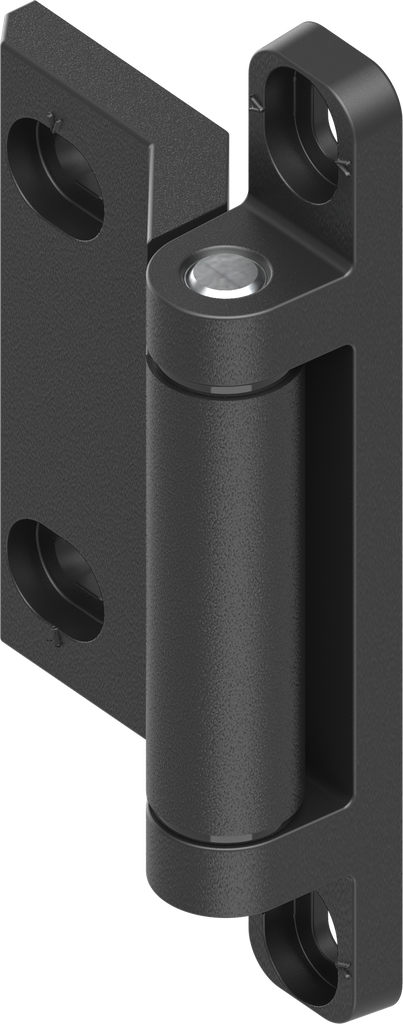

180° 2D Hinge, Zinc die black powder-coated; 1054-U37

https://www.emka.com/products/1054-u37 https://www.emka.com/web/image/product.template/212569/image_1920?unique=ac1a2db

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    No stock item, please ask for availability
    Internal Reference: 1054-U37
    Barcode: 1054-U00037-0000000
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4B-248
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Adjustable : 2D
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products

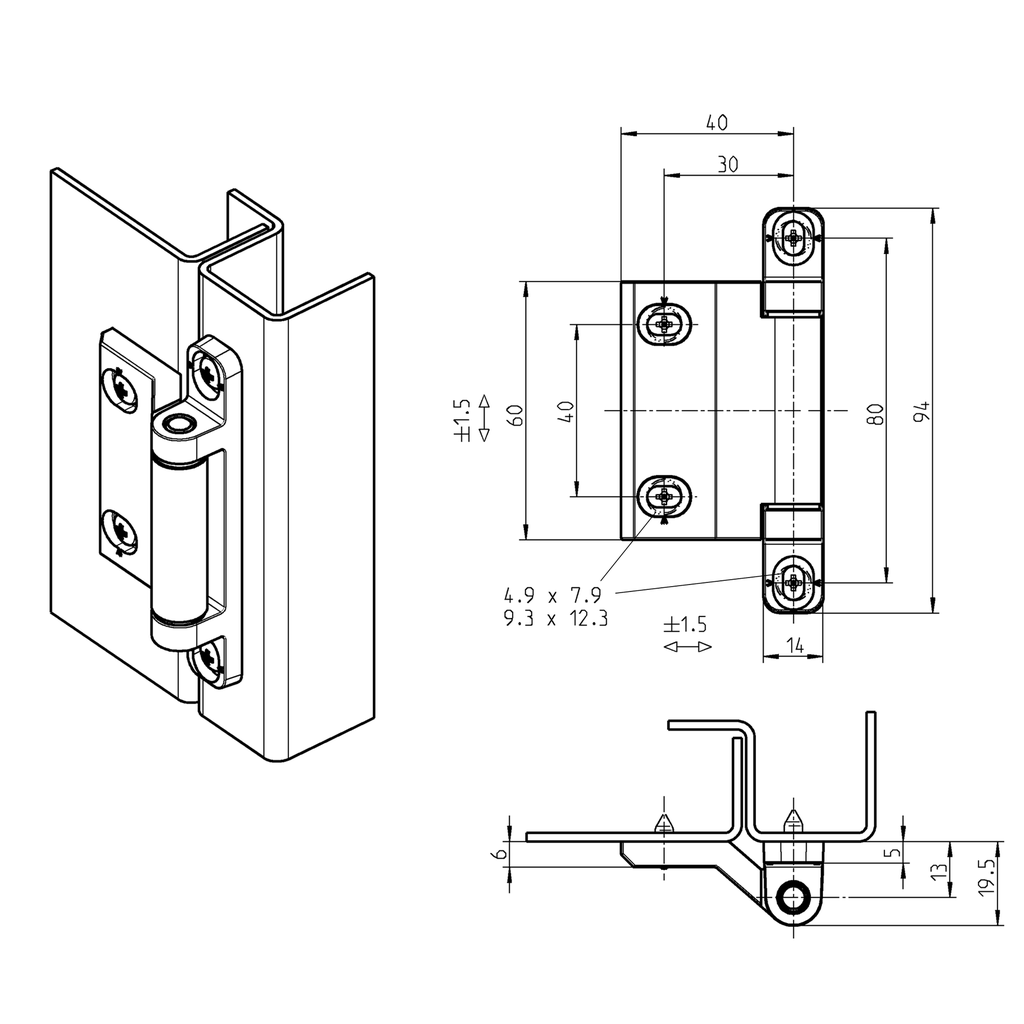

    Here you can find the product data sheets and CAD files of this product
