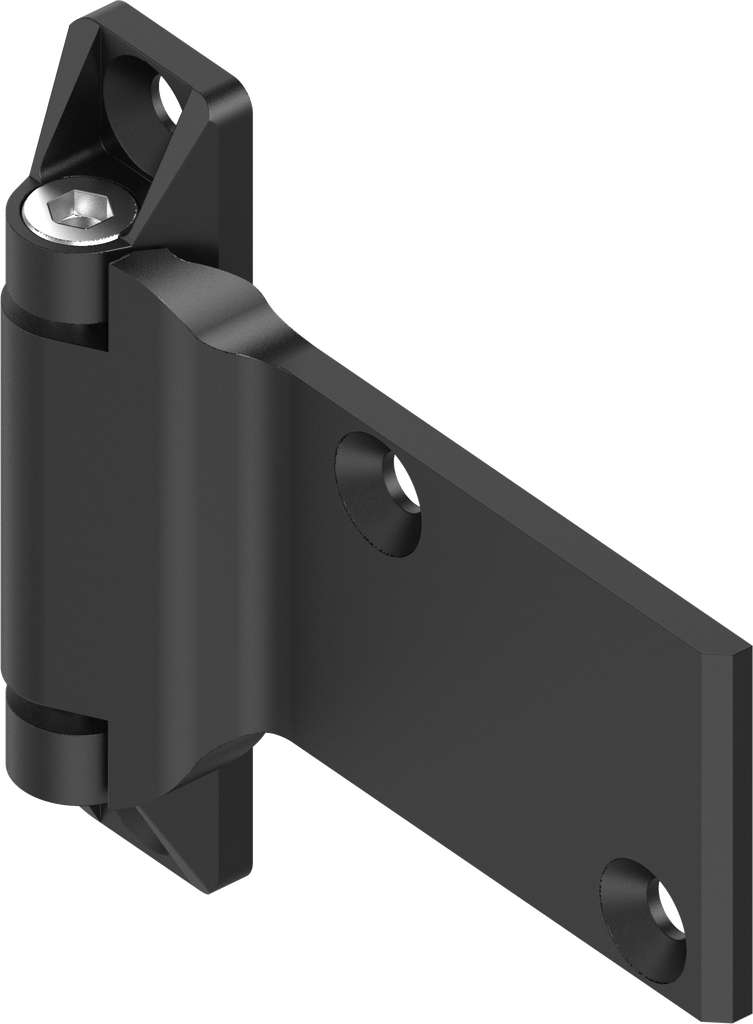

180° 3D Hinge, Zinc die black powder-coated; 1054-U32
Internal Reference:
1054-U32
Product Type:
Hinge
Program:
1054
Catalog sheet:
4B-260
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Adjustable :
3D
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M8x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
concealed
Door Version :
Left
Thickness:
3 mm
