Hinge, Zinc die raw
Hinge, Zinc die raw
180° 2D Hinge, Zinc die raw
180° 2D Hinge, Zinc die raw

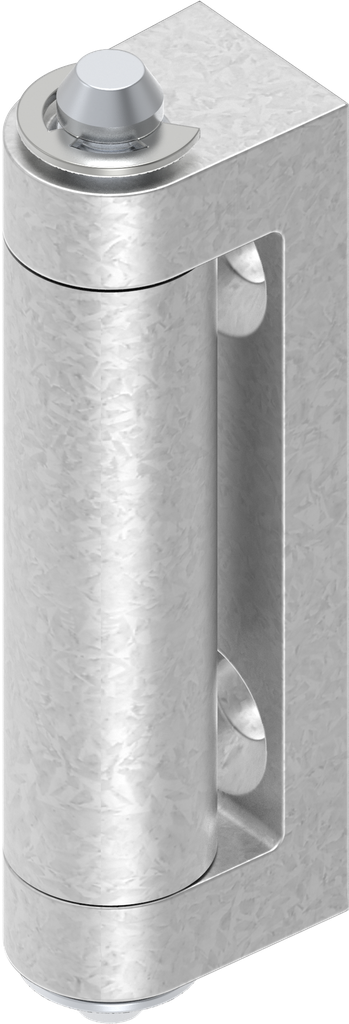

Hinge, Zinc die raw; 1054-U26

https://www.emka.com/products/1054-u26-hinge-zinc-die-raw-212562 https://www.emka.com/web/image/product.template/212562/image_1920?unique=fff2e8c

Middle part m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1054-U26
    Barcode: 1054-U00026-0000000
    Product Type: Hinge
    Program: 1054

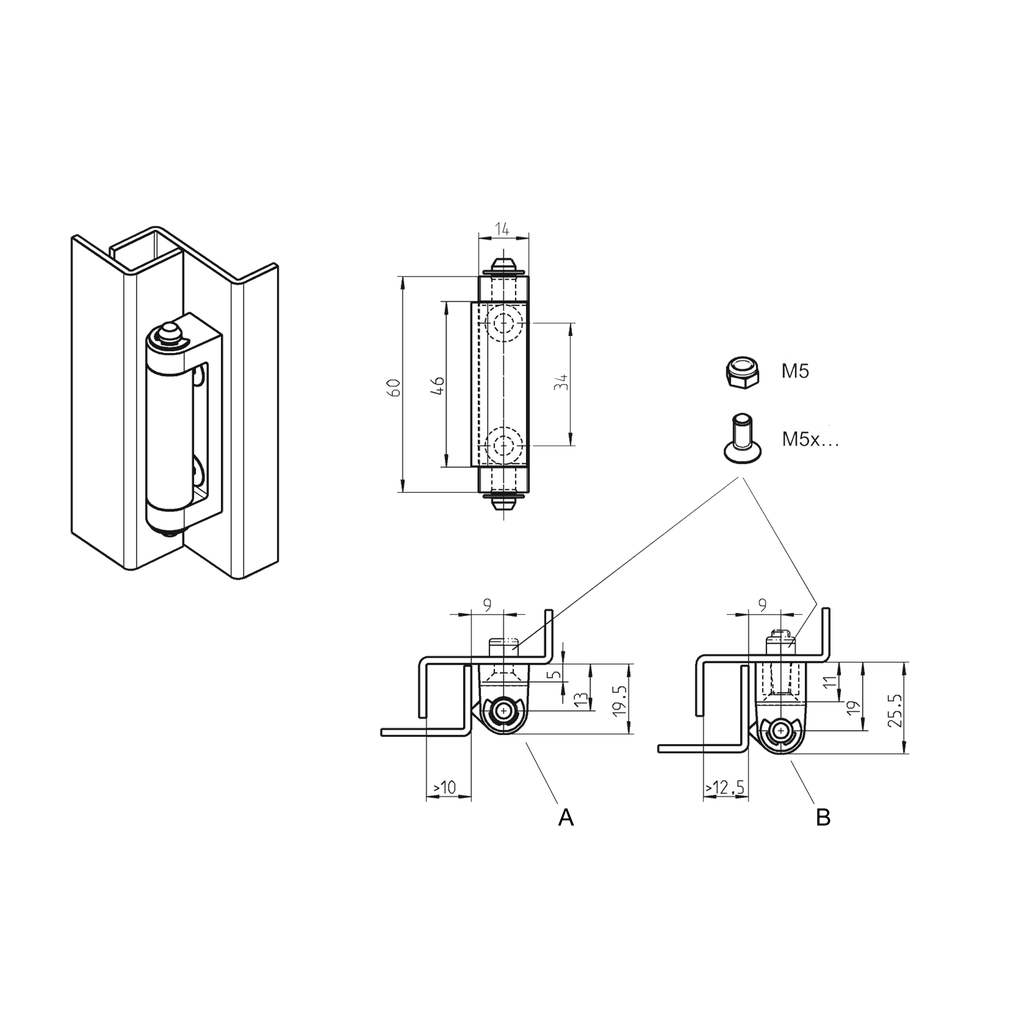

    Catalog sheet: 4A-310
    Material of the module : Zinc die
    Surface of the module: raw
    Door return variable: Yes
    Execution: A
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M5
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
