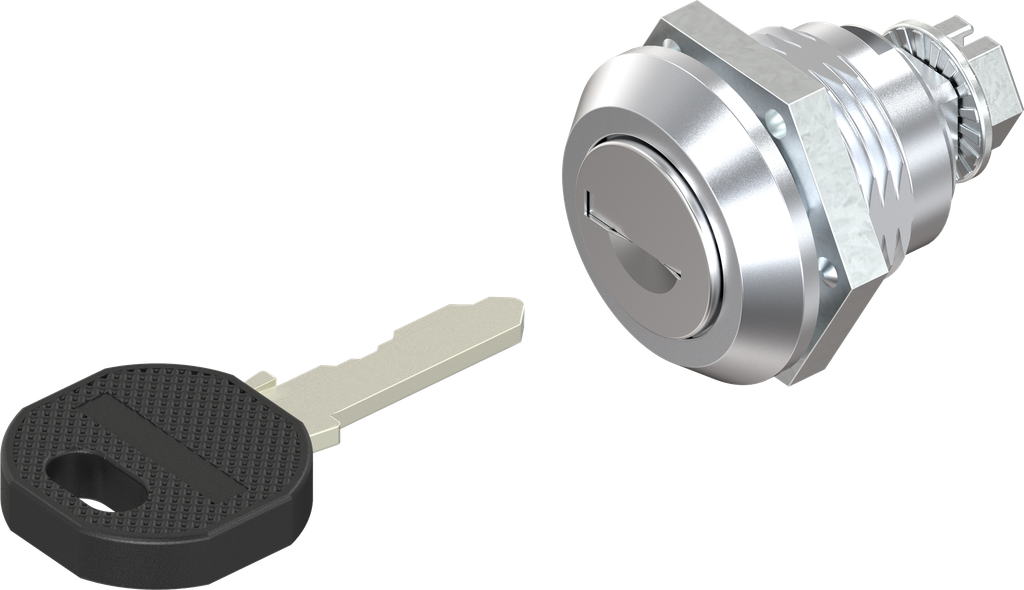

Cylinder quarter turn, keyed different, Zinc die black powder-coated
Akeneo Note:
Further round cylinder key systems available on request
Internal Reference:
1048-U9
Barcode:
1048-U00009-0000000
Product Type:
Quarter turn
Program:
1048
Catalog sheet:
1B-420
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round

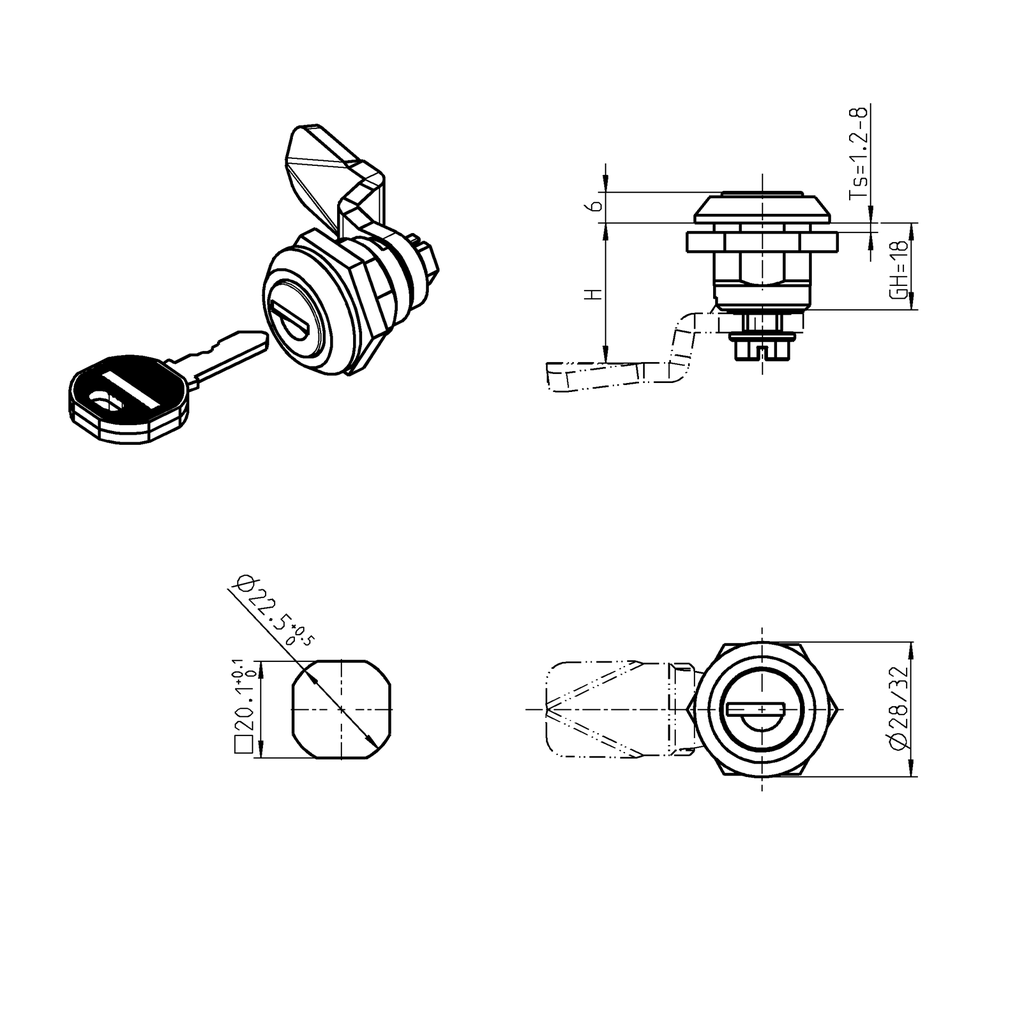

Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Door Version :
Left,Right
Quarter turn types:
Quarter turn with cylinder
No Specifications
