180° Hinge, Stainless steel AISI 303
180° Hinge, Stainless steel AISI 303
Hinge, Stainless steel AISI 316
Hinge, Stainless steel AISI 316

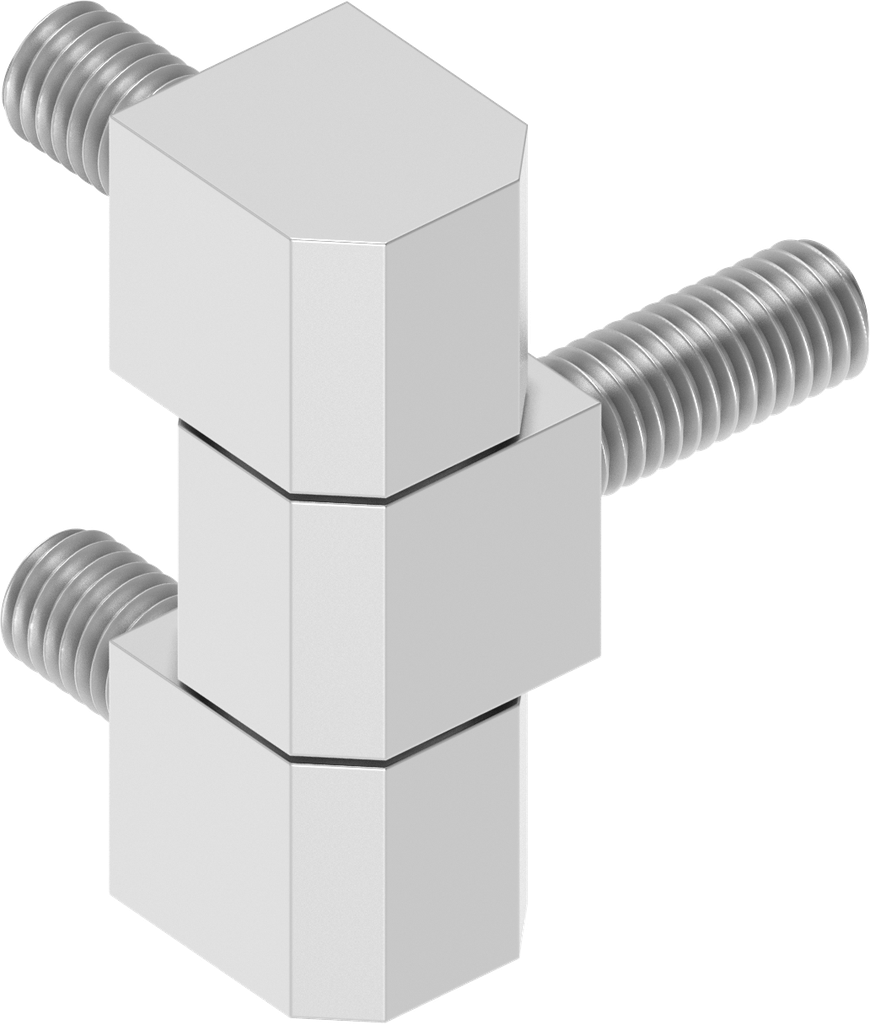

180° Hinge, Stainless steel AISI 304; 1039-U19-S

https://www.emka.com/products/1039-u19-s-180-hinge-stainless-steel-aisi-304-61317 https://www.emka.com/web/image/product.template/61317/image_1920?unique=e8a9b4f

without nuts and serrated washers

    This combination does not exist.

    Single cabinets Left Right
    Internal Reference: 1039-U19-S
    Barcode: 1039-U00019-000000S
    Product Type: Hinge
    Program: 8031
    Material of the module : Stainless steel AISI 304
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    View All Products

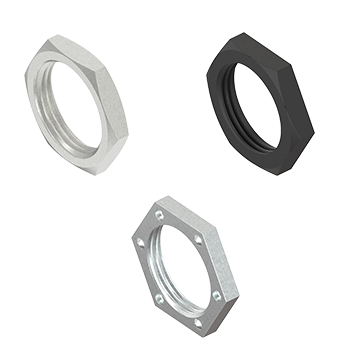

    Nut
