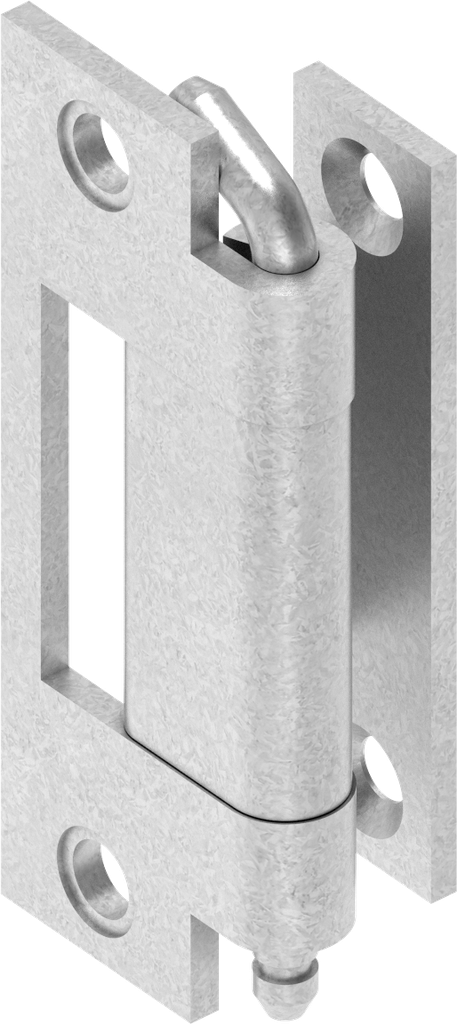

135° Hinge, Steel zinc-plated; 1032-U6

https://www.emka.com/products/1032-u6 https://www.emka.com/web/image/product.template/61147/image_1920?unique=271b744


    This combination does not exist.

    Single cabinets Left Right


    Internal Reference: 1032-U6
    Product Type: Hinge
    Program: 1032
    Catalog sheet: 4A-121
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimension A, Variable: 22 mm
    Detachable: with tools
    Type of attachment to the frame: screw-on, with weld stud M6 x 12
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M5
    Max. opening angle due to installation: Yes
    Max Opening Angle: 135°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 1.5 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
