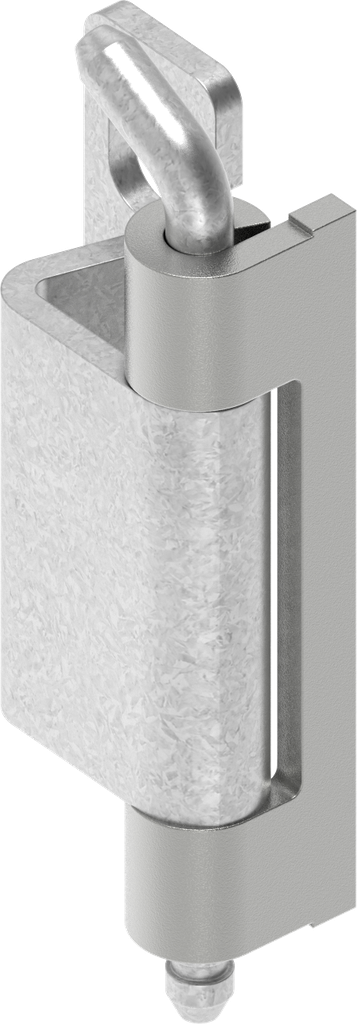

120° Hinge, Steel zinc-plated and raw; 1032-U1
Roller m.s. raw for welding on
Internal Reference:
1032-U1
Product Type:
Hinge
Program:
1032
Catalog sheet:
4A-130
Material of the module :
Steel
Surface of the module:
zinc-plated and raw
Dimension A, Variable:
22 mm
Detachable:
with tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from outside
Max. opening angle due to installation:
Yes
Max Opening Angle:
120°
Cabinet type :
Single cabinets
Dimension t:
2.50 mm
Door position:
prominent
Door Version :
Left,Right
Thickness:
2 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
