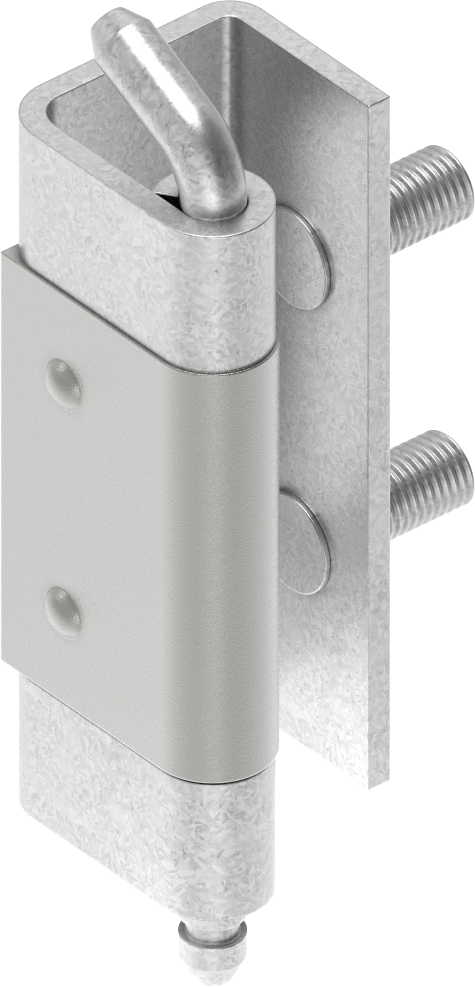

120° Hinge, Steel zinc-plated and raw; 1031-U21
Roller m.s. raw for welding on
Product information:
This hinge was designed for swinghandles 2400 high (2400-U1; -U2) and swinghandle 2600-U1. Using this hinge, the door is reversible.
Internal Reference:
1031-U21
Product Type:
Hinge
Program:
1031
Catalog sheet:
4A-136
Material of the module :
Steel
Surface of the module:
zinc-plated and raw
Dimension A, Variable:
25 mm
Detachable:
with tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from inside, with press-fit threaded studs M6 x 15
Max Opening Angle:
120°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Thickness:
2 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
