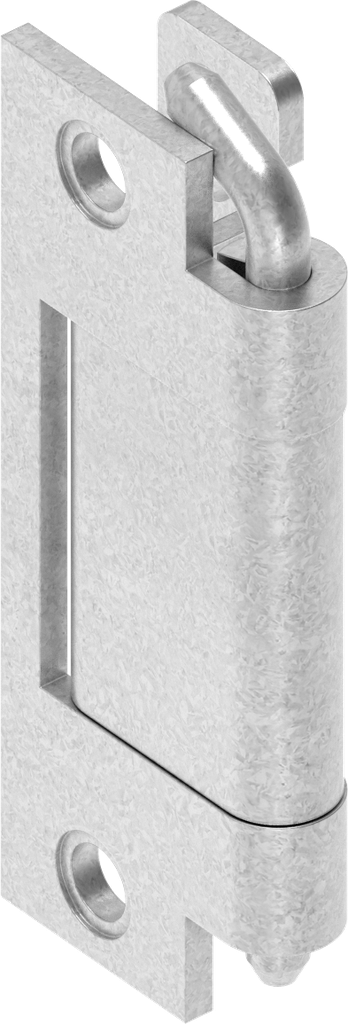

120° Hinge, Steel zinc-plated; 1031-U10

https://www.emka.com/products/1031-u10 https://www.emka.com/web/image/product.template/61113/image_1920?unique=bd8cbcb


    This combination does not exist.

    Single cabinets Left Right


    Internal Reference: 1031-U10
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-130
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimension A, Variable: 26 mm
    Detachable: with tools
    Type of attachment to the frame: screw-on, with weld stud M6 x 12
    Type of fastening on the door: screw-on from outside
    Max. opening angle due to installation: Yes
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
