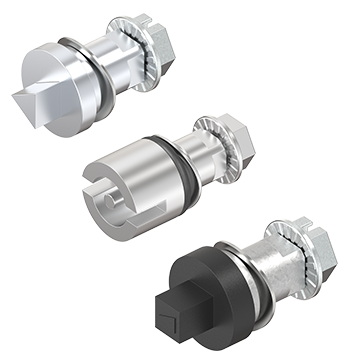

Insert slot 1.5 x 3, Zinc die matt chromed
Insert slot 1.5 x 3, Zinc die matt chromed
Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated
Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated

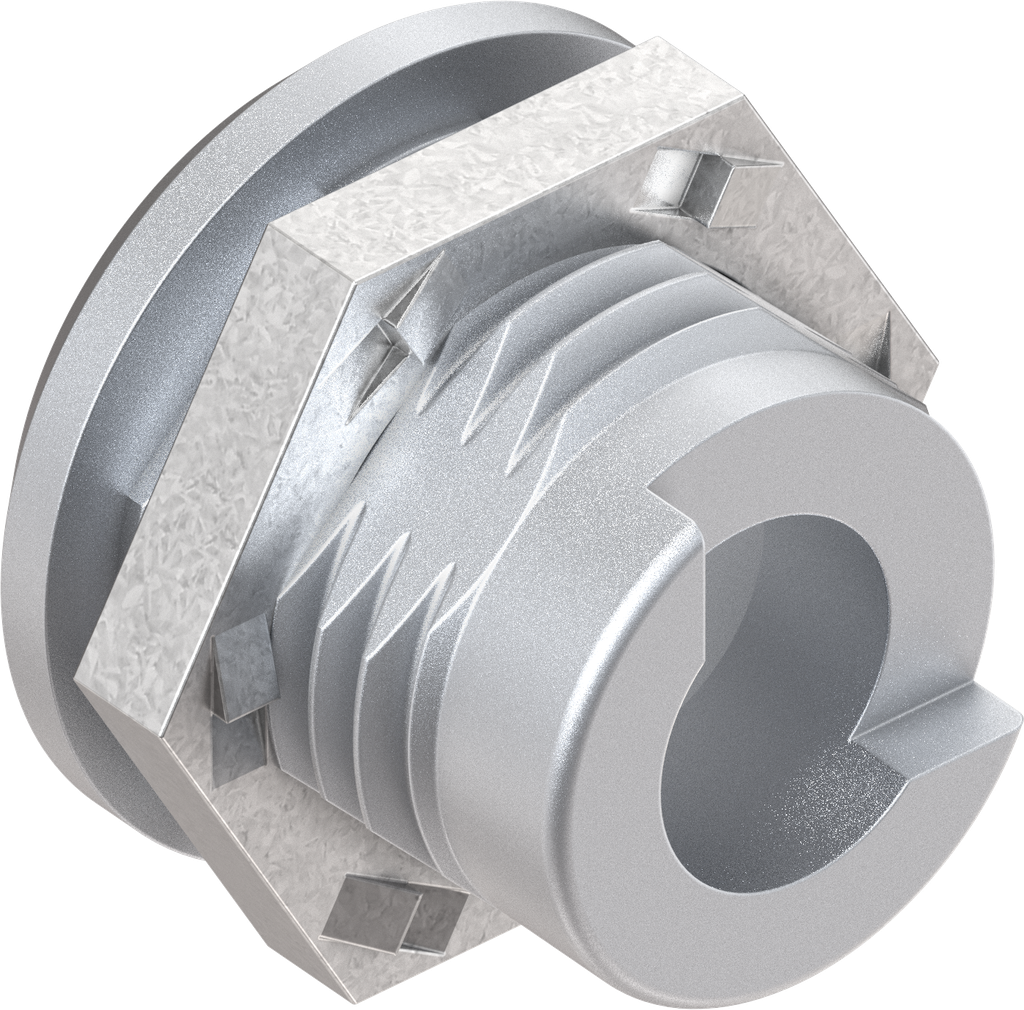

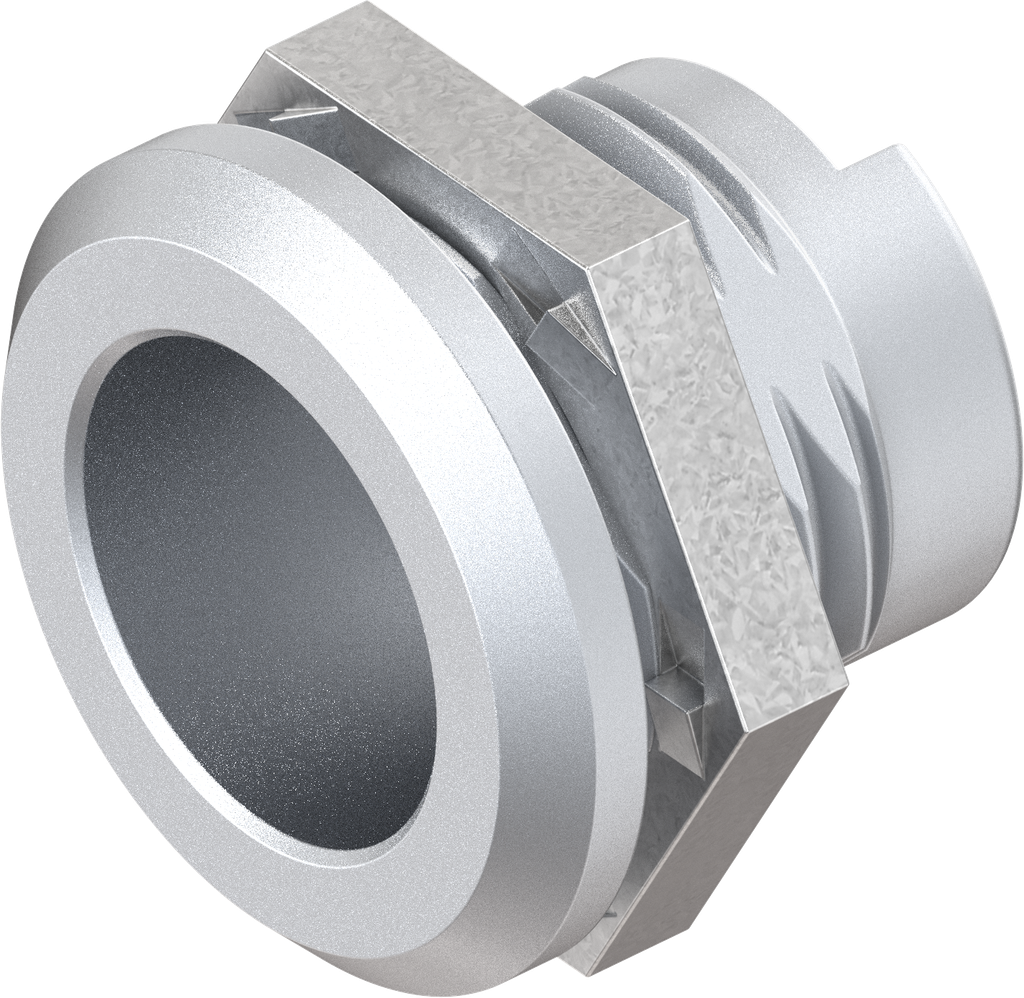

Housing, Zinc die matt chromed; 1022-U9-ID

https://www.emka.com/products/1022-u9-id-housing-zinc-die-matt-chromed-209181 https://www.emka.com/web/image/product.template/209181/image_1920?unique=5312d4e

with earthing nut

    This combination does not exist.

    Inside the sealing Left Right
    Internal Reference: 1022-U9-ID
    Barcode: 1022-u00009-00000id
    Product Type: Housing
    Program: 1022
    Material of the module : Zinc die
    Surface of the module: matt chromed
    Number of Possible Locking Points: 1 point
    Fixing type of housing : spring fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 20 x 3 mm
    GH Mass: 13.50 mm
    Suitable for door thickness from: 0.75 mm
    Suitable for door thicknesses up to: 2.20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
