Compression latch with slot 1.5 x 3, Zinc die chrome-plated
Compression latch hexagon female SW 5, Zinc die black powder-coated

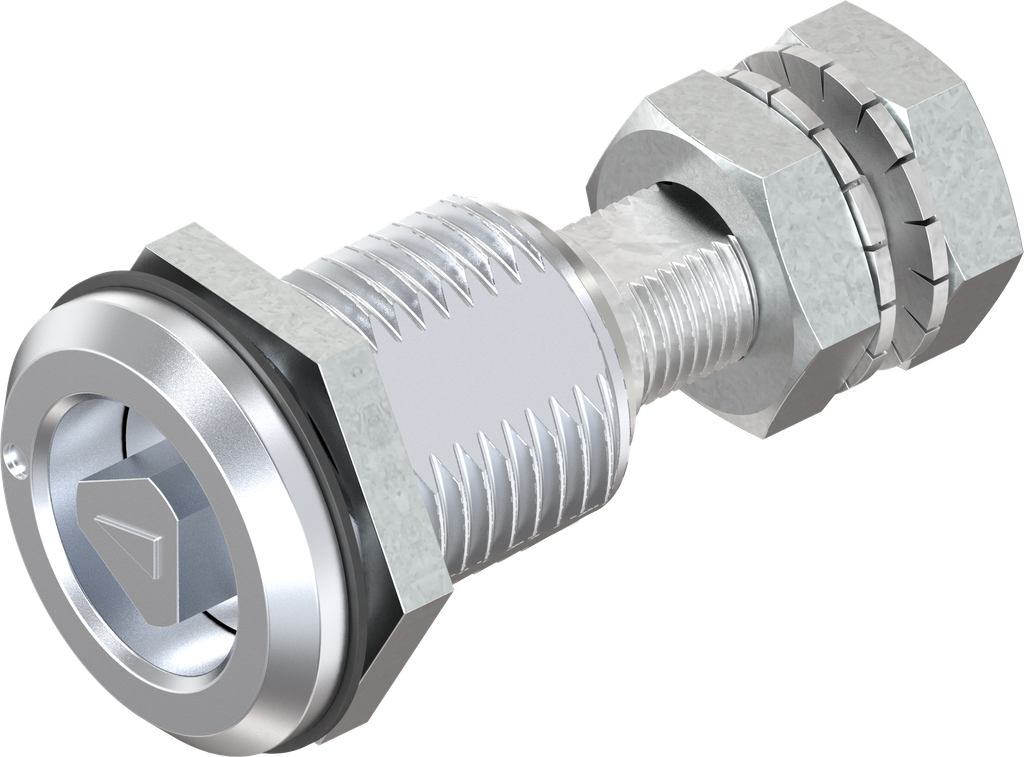

Compression latch triangular 6.5, Zinc die chrome-plated; 1022-U85-IA
with nut
No stock item, please ask for availability
Product information:
The compression latch is designed to be vibration-proof as such.Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1022-U85-IA
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1022-u00085-00000ia
Product Type:
Quarter turn
Program:
1022
Catalog sheet:
1A-220
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Triangular 6.5
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

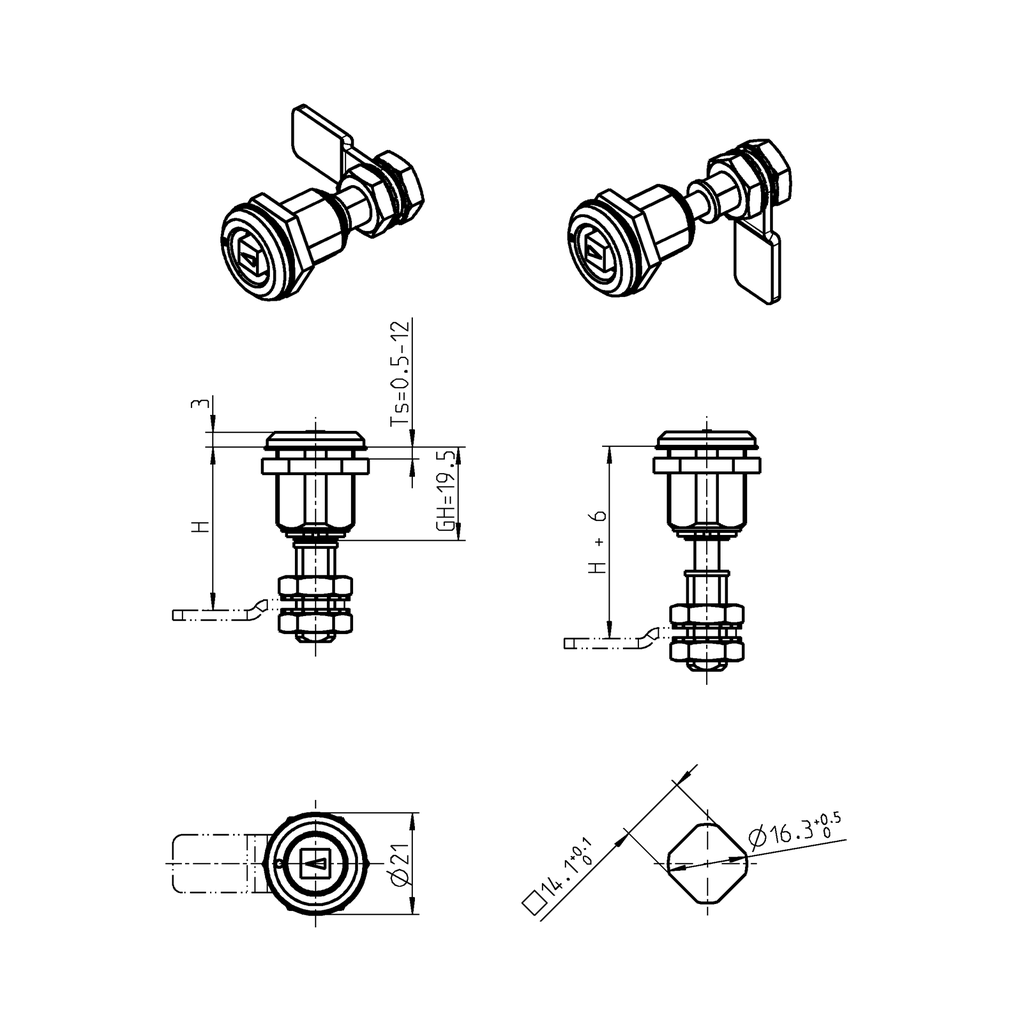

Housing Head Size:
21 x 3 mm
GH Mass:
19.50 mm
Compression Value :
6 mm
Suitable for door thickness from:
0.50 mm
Suitable for door thicknesses up to:
12 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
