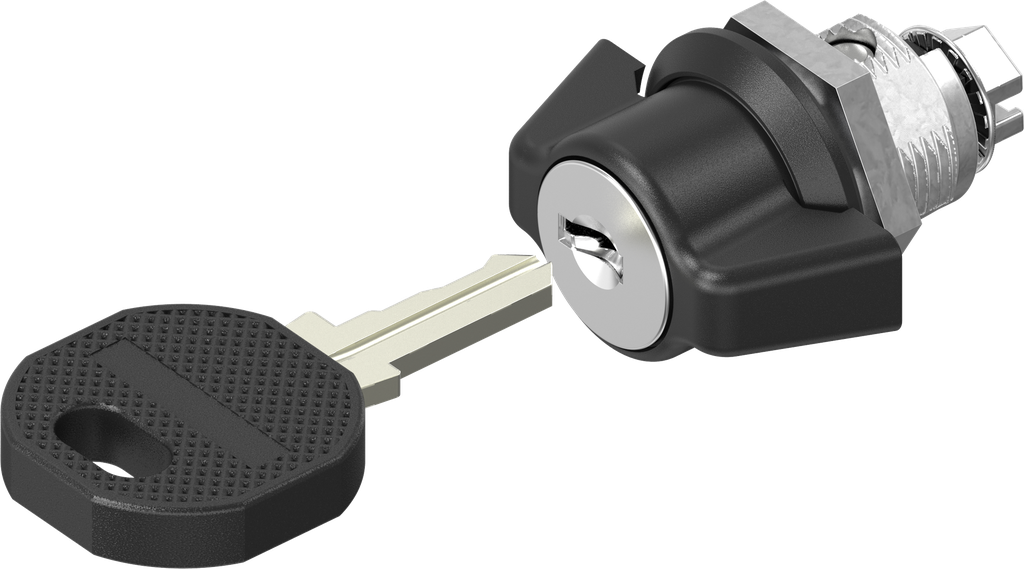

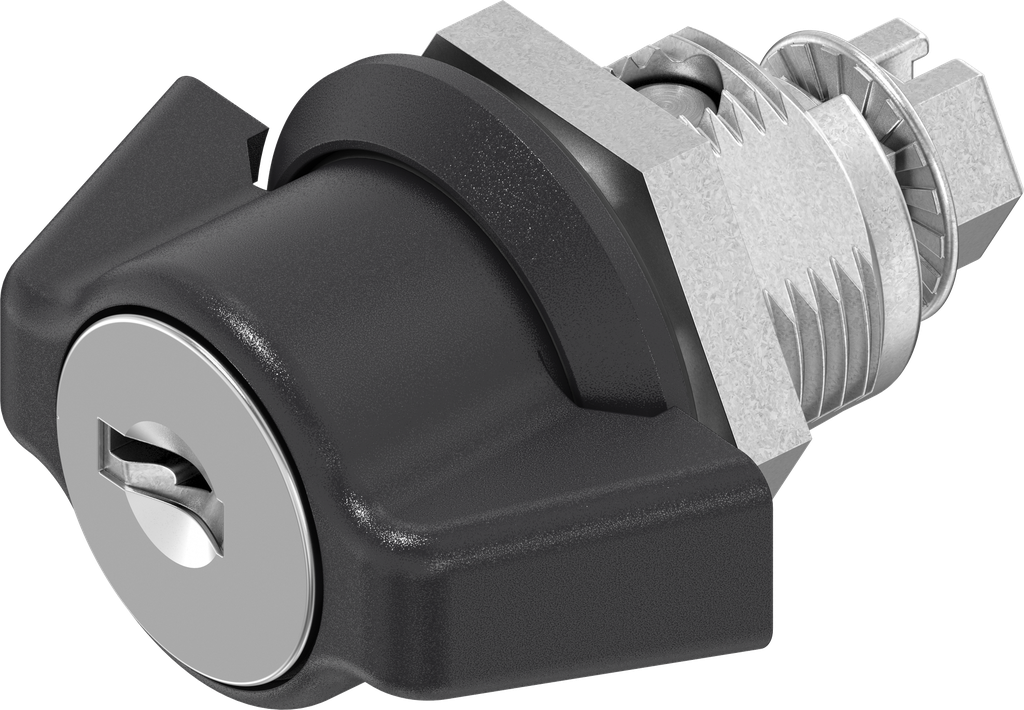

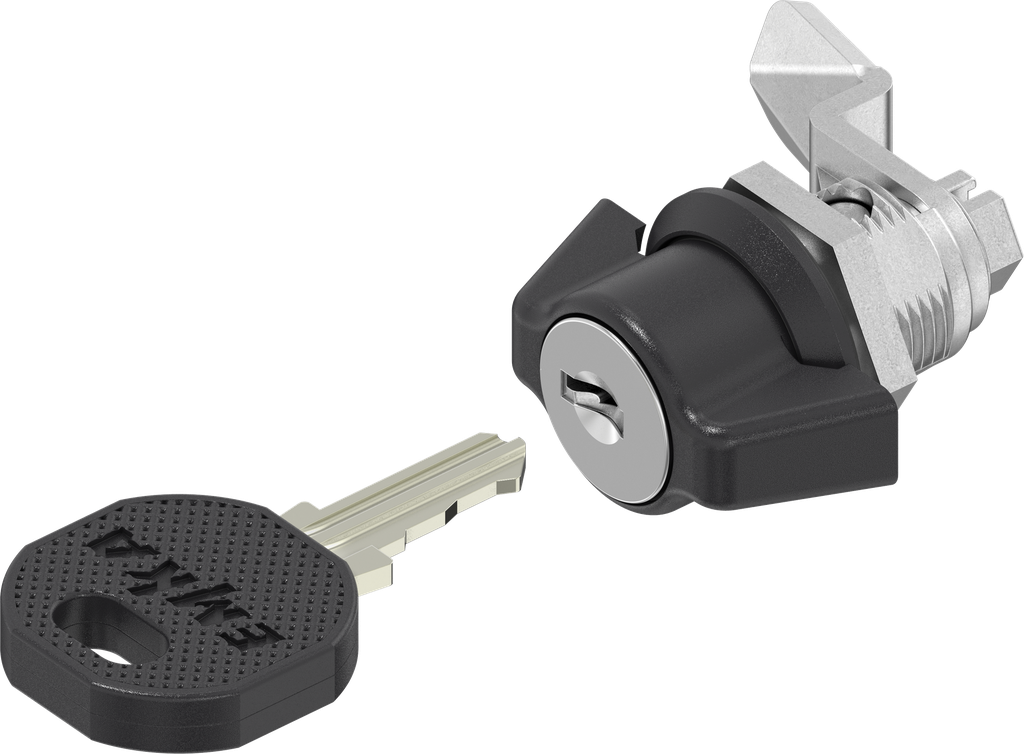

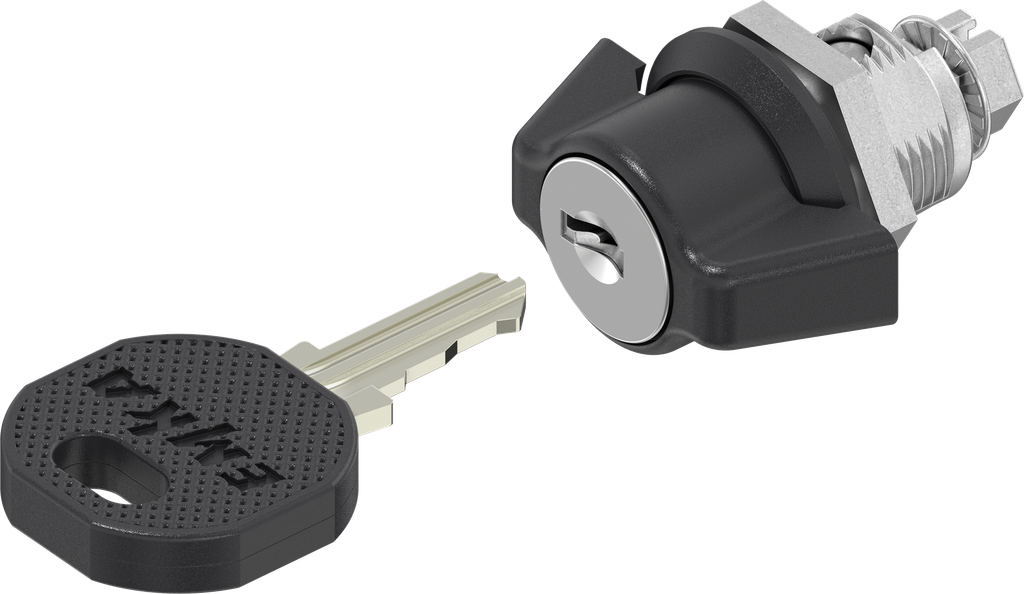

Wing knob quarter turn, keyed 2233X, Zinc die black powder-coated; 1022-U39

https://www.emka.com/products/1022-u39 https://www.emka.com/web/image/product.template/60996/image_1920?unique=dfd0fa1

with nut


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1022-U39
    Product Type: Quarter turn
    Program: 1022

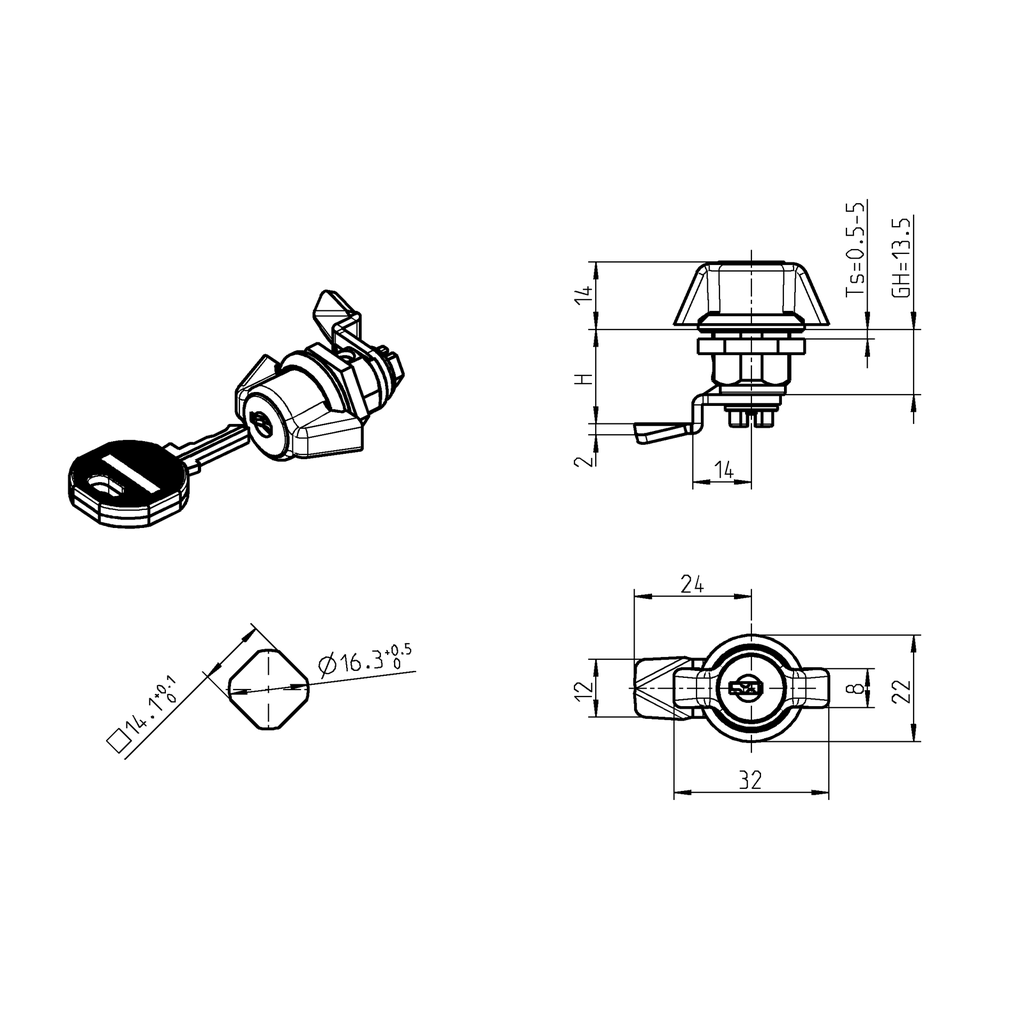

    Catalog sheet: 1A-140
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 0.50 mm
    Suitable for door thicknesses up to: 5.50 mm
    Round Cylinder Type: EMKA X, keyed 2233X
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Assembly
    Keys
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1022-U39_igs
    CAD file | 1022-U39_stp
