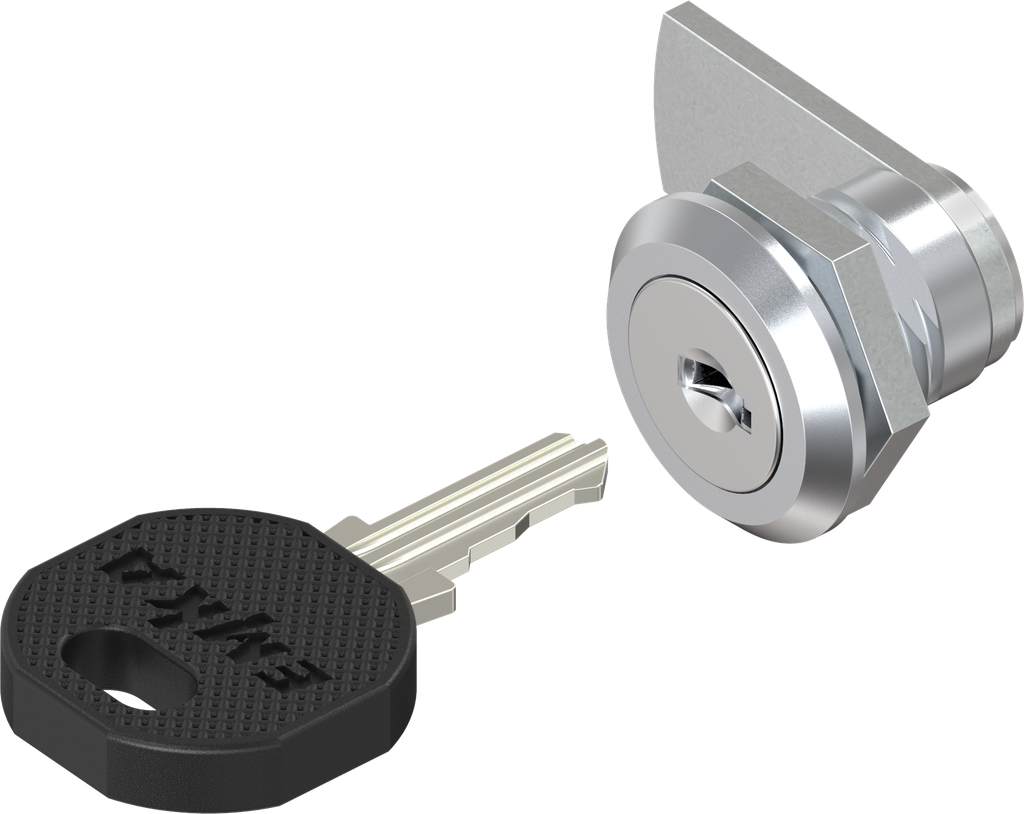

Cylinder quarter turn, keyed different, Zinc die chrome-plated; 1022-U20

https://www.emka.com/products/1022-u00020-0000000 https://www.emka.com/web/image/product.template/400347/image_1920?unique=006c825

with nut

This product has no valid combination.

Internal Reference: 1022-U020
Barcode: 1022-U020
Product Type: Quarter turn
Program: 1022
Catalog sheet: 1A-160
Material of the module : Zinc die
Surface of the module: chrome-plated
Number of Possible Locking Points: 1 point
Fixing type of housing : nut fixing
Mounting Positions : Inside the sealing
Housing Head Shape: Round
Housing Head Size: 22 x 3 mm
GH Mass: 13.50 mm
Dimension H: 13.50 mm
Suitable for door thickness from: 1.20 mm
Suitable for door thicknesses up to: 5 mm
Round Cylinder Type: EMKA X, differently keyed
Locking set: Round cylinder
Door Version : Left,Right
Locking components: Cam
Quarter turn types: Quarter turn with cylinder
