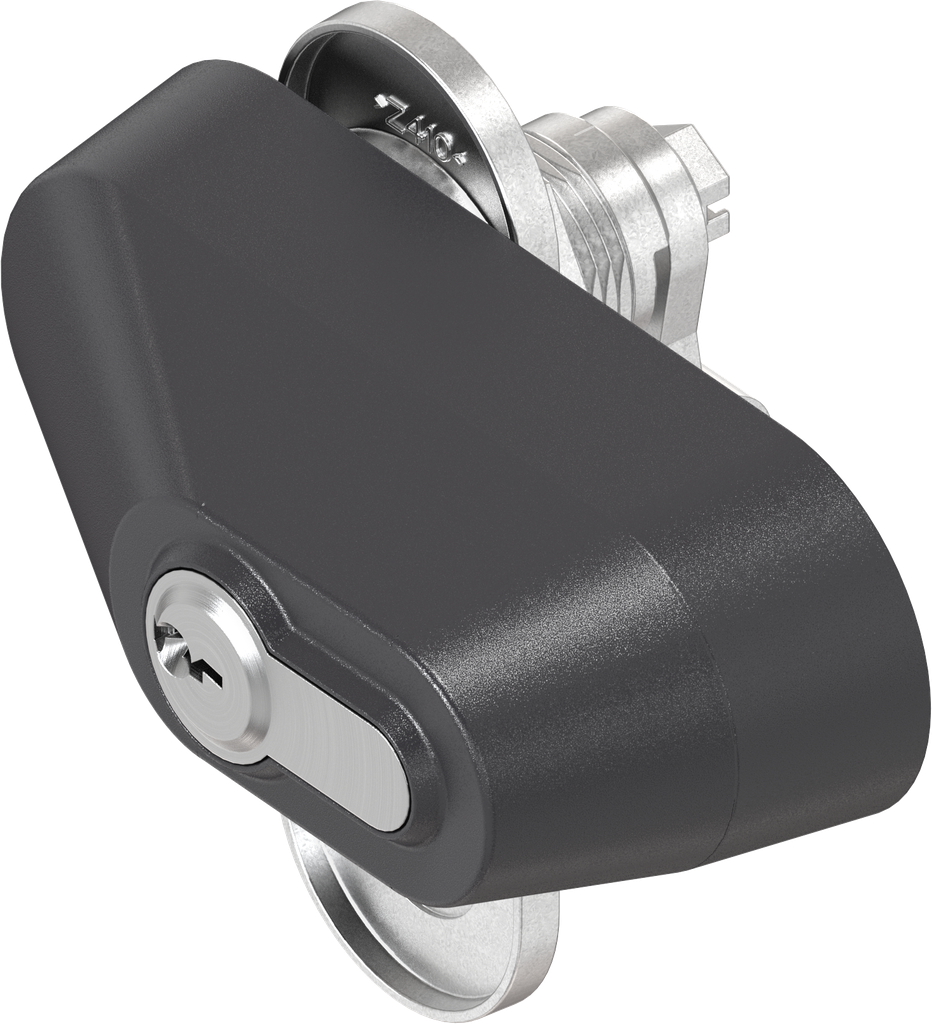

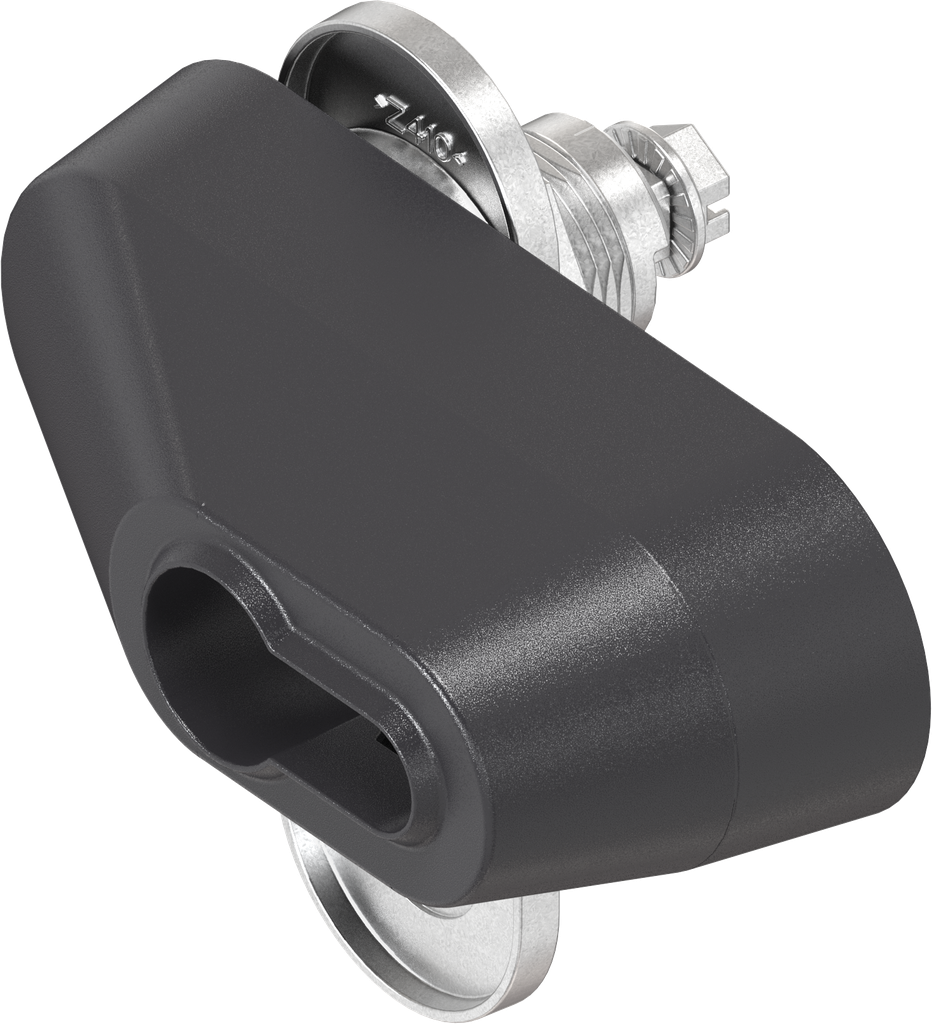

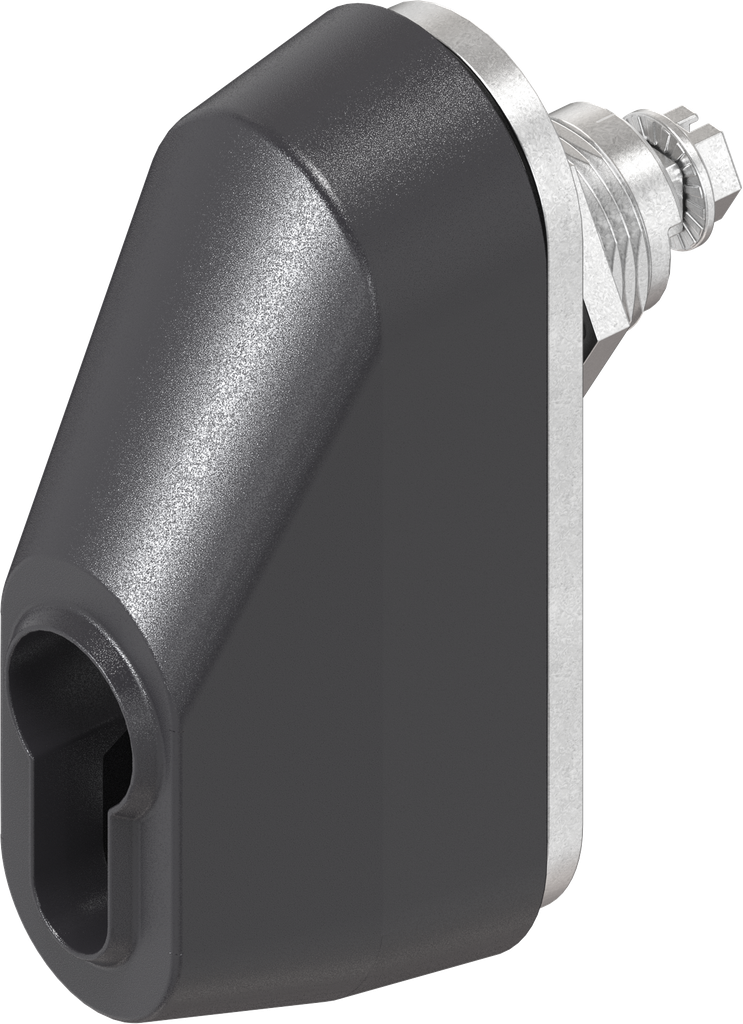

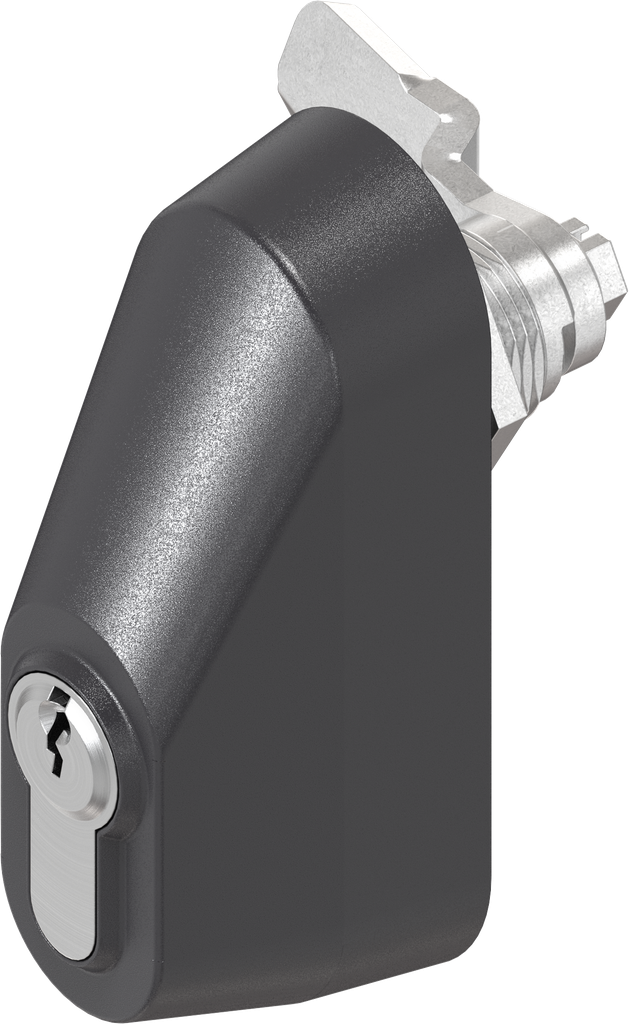

EXTERIOR HANDLE UNIT W/SLOTTED INSERT
Product information:
Tamper and vibration-proof with profile half cylinder acc. to DIN 18252 (EN1303)
Function:

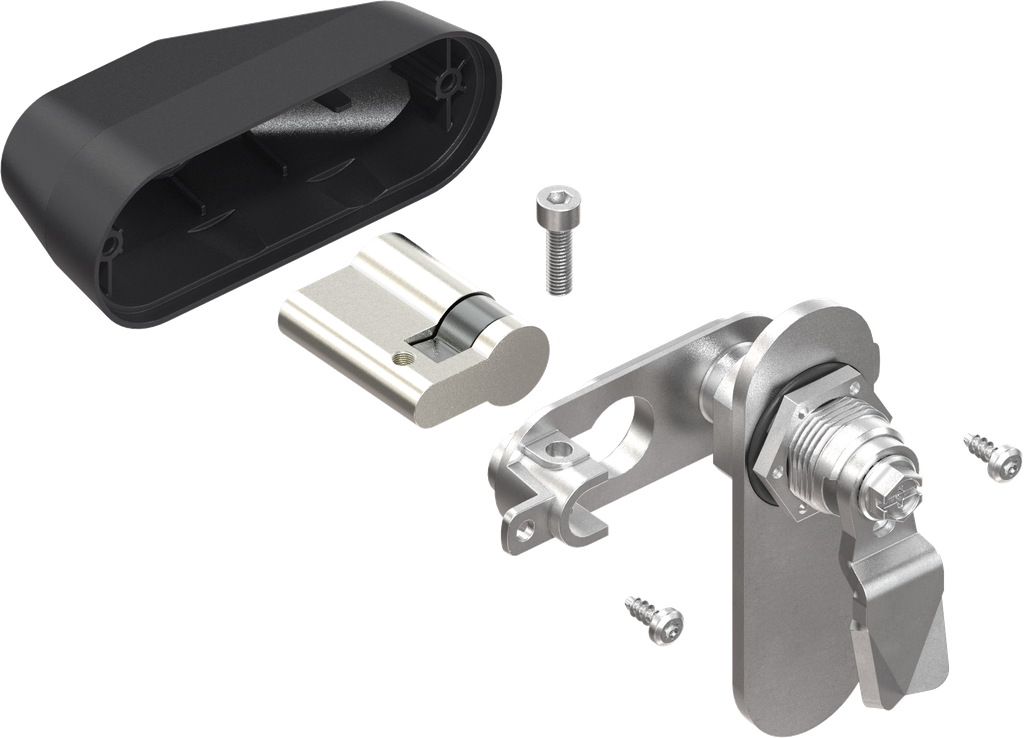

Locking process with EMKA profile half cylinder
Locking possible without key.
Locking process with profile half cylinder acc. to DIN 18252
Locking only possible with key.
Internal Reference:
1000-U991
Standards:
Protection class IP 66, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-U00991-0000000
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-855
Material of the module :
Zinc die and polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point, 2 points, 3 point

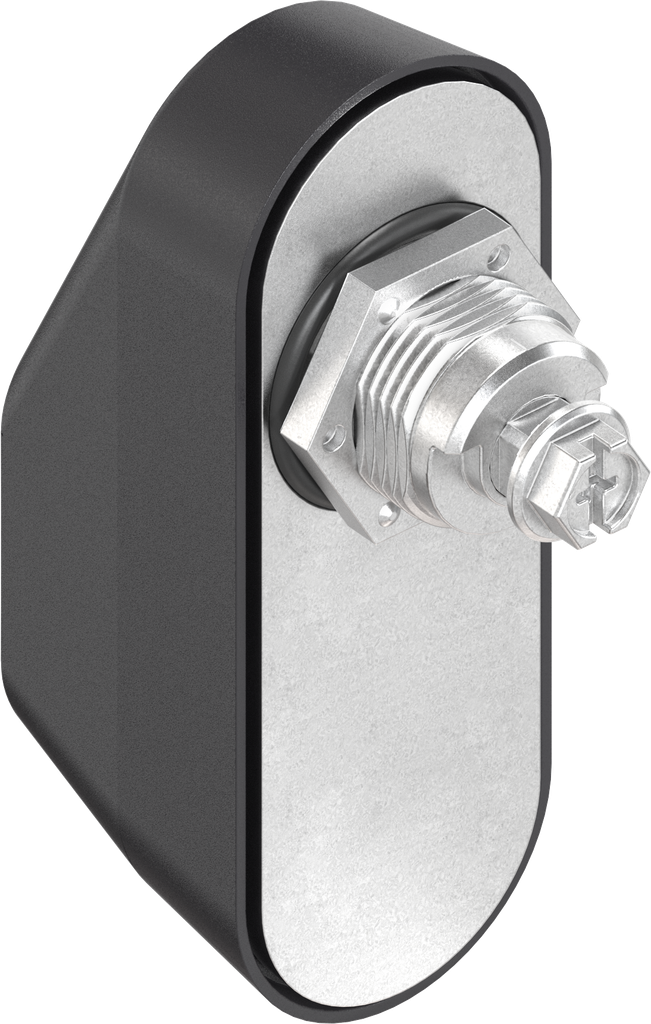

Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Oval

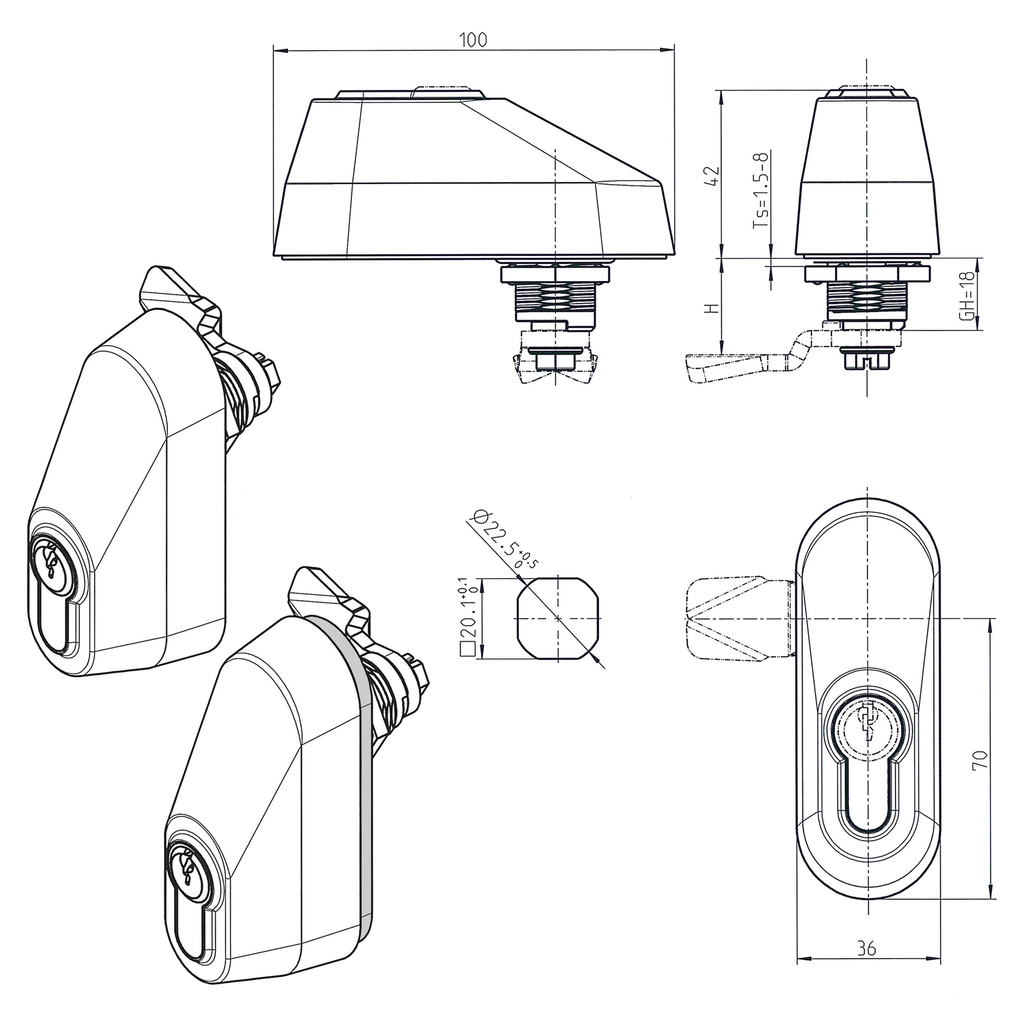

Housing Head Size:
100 x 36 x 42 mm
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art:
Wing knob
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Locking set:

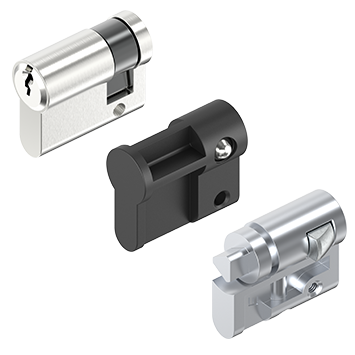

Profile half cylinder A = 30
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with cylinder
