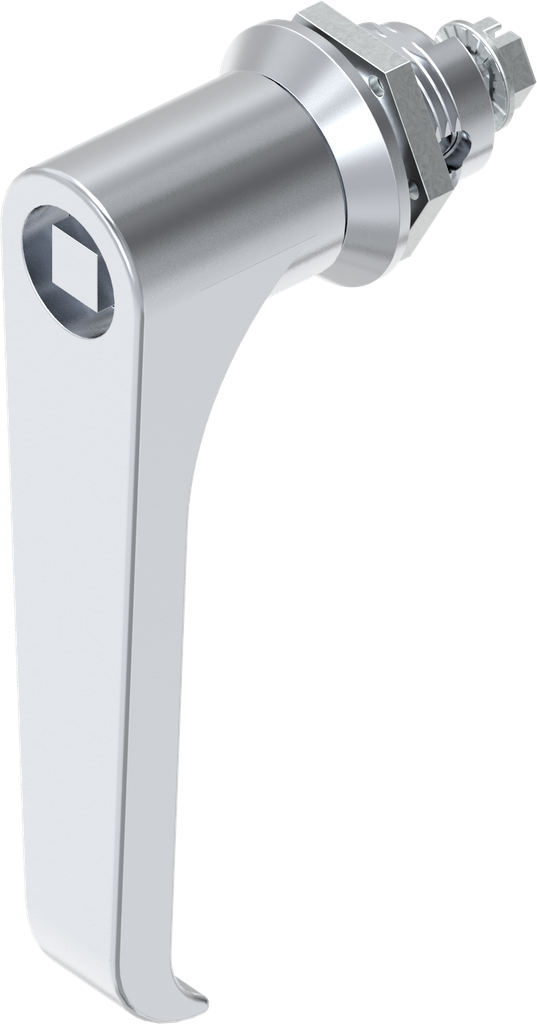

L-handle quarter turn square 7, Zinc die chrome-plated
L-handle quarter turn, non-keyed, Zinc die chrome-plated
Product information:
IP 65 on request! Insert with spring-loaded return (two-hand operation)
Internal Reference:
1000-U90
Barcode:
1000-U00090-0000000
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-620
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 8
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
GH Mass:
18.0000 MILLIMETER
Handle Art:
L-handle
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert,Quarter turn with handle
No Specifications
