Compression latch railway version, Zinc die chrome-plated
Compression latch railway version, Zinc die chrome-plated
Compression latch with adjustable cam height, railway version, Zinc die chrome-plated
Compression latch with adjustable cam height, railway version, Zinc die chrome-plated

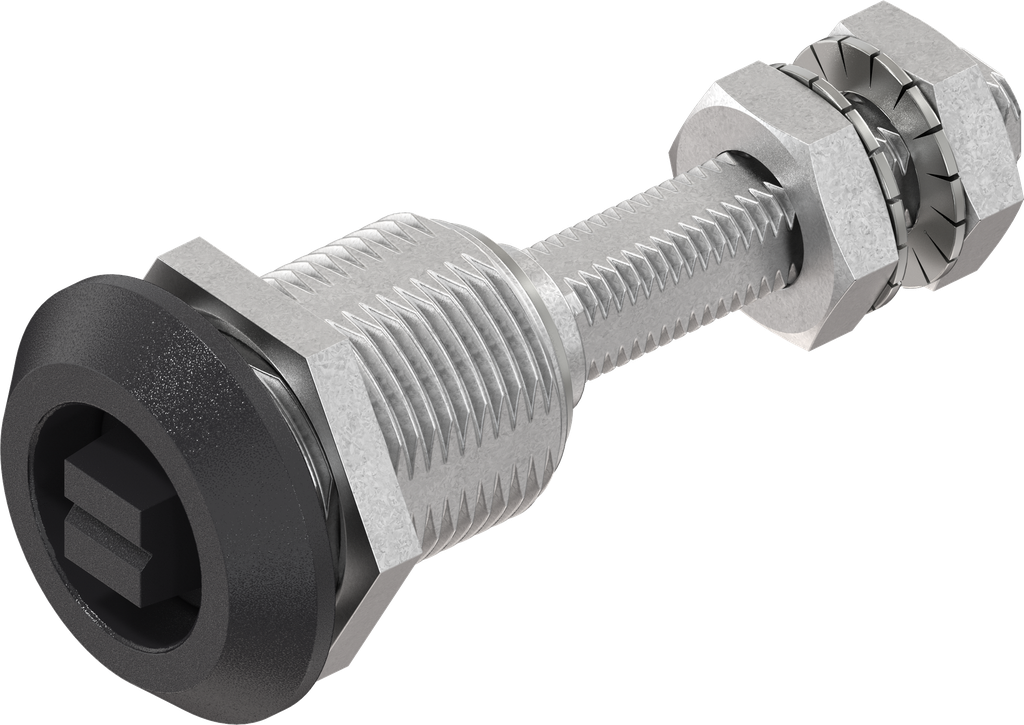

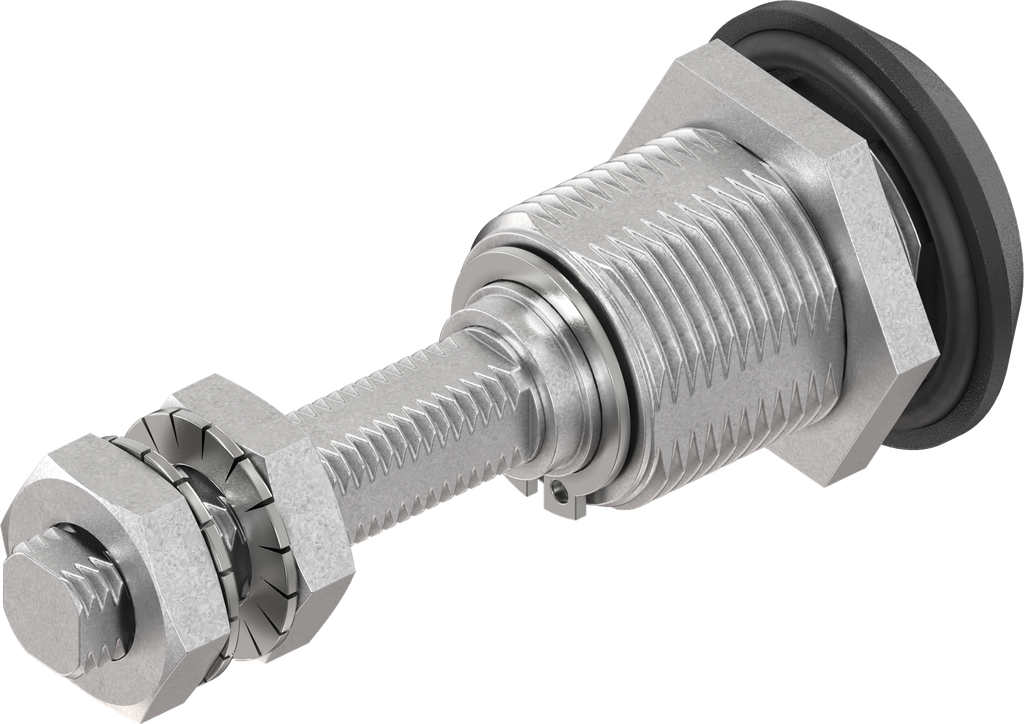

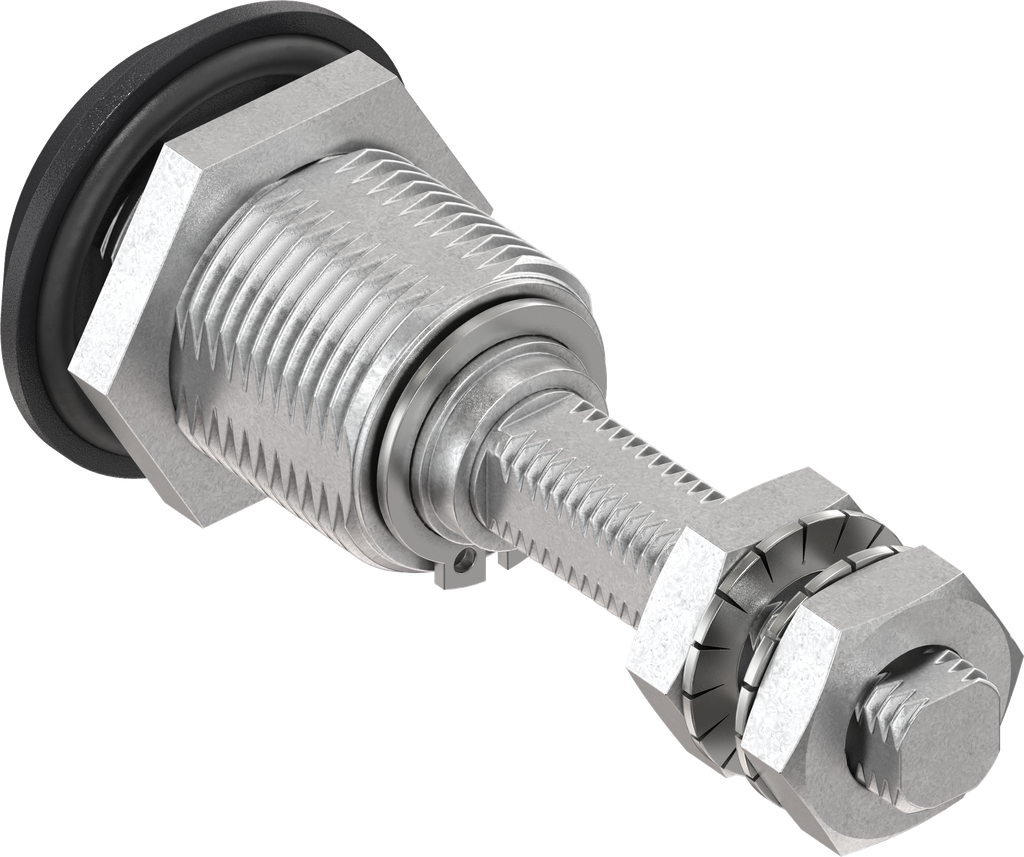

Compression latch with adjustable cam height, railway version, Zinc die black powder-coated; 1000-U832

https://www.emka.com/products/1000-u832 https://www.emka.com/web/image/product.template/205898/image_1920?unique=d0877aa

with nut

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) Left Right
    Internal Reference: 1000-U832
    Standards: False
    Barcode: 1000-u00832-0000000
    Product Type:
    Program: 1000
    Catalog sheet: 1B-222
    Material of the module :
    Surface of the module:
    Number of Possible Locking Points: False
    Fixing type of housing : False
    Type of actuation:
    Mounting Positions : False
    Housing Head Shape:
    Housing Head Size:
    Foamed gasket: Yes

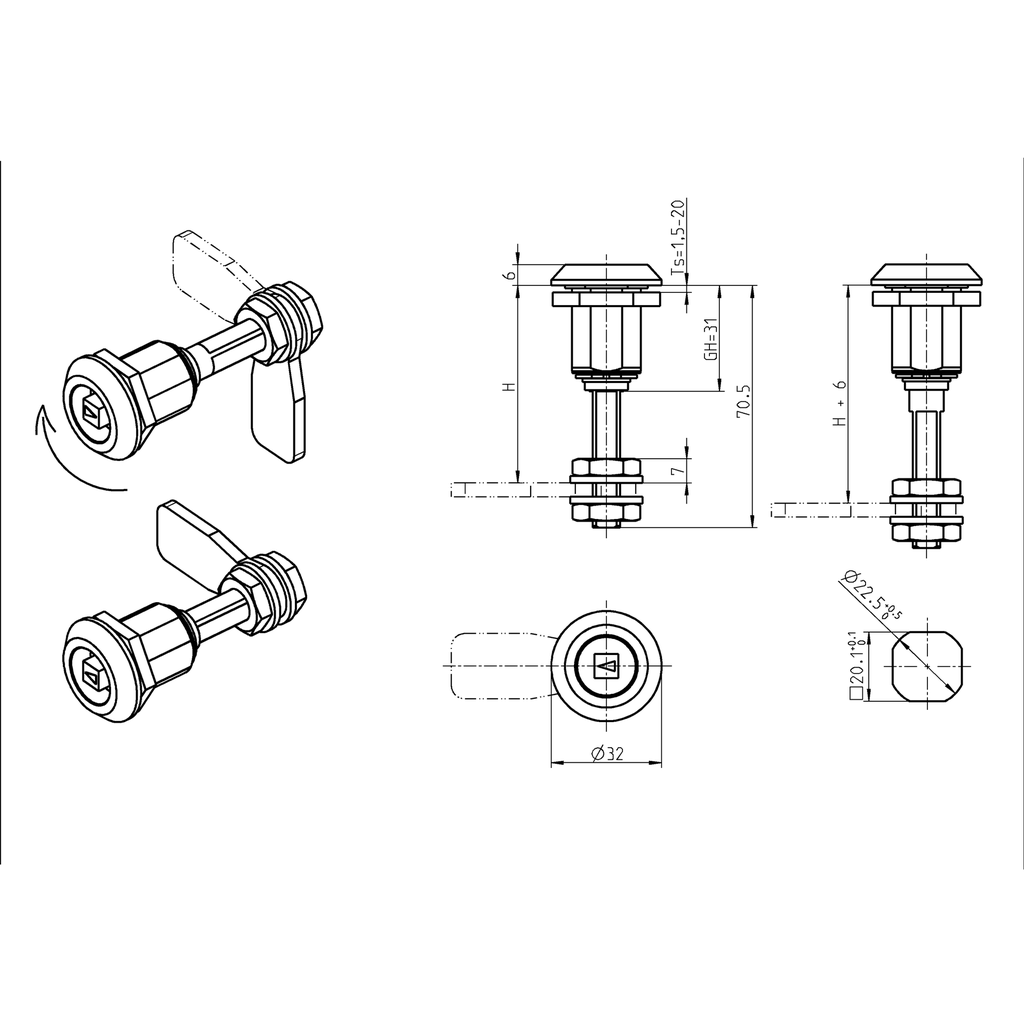

    GH Mass: 31 mm
    Compression Value :
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: False
    Door Version : False
    Locking components: False
    Quarter turn types: False
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Dust cap - Finger pull
    Keys
    Assembly
    Here you can find the product data sheets and CAD files of this product
