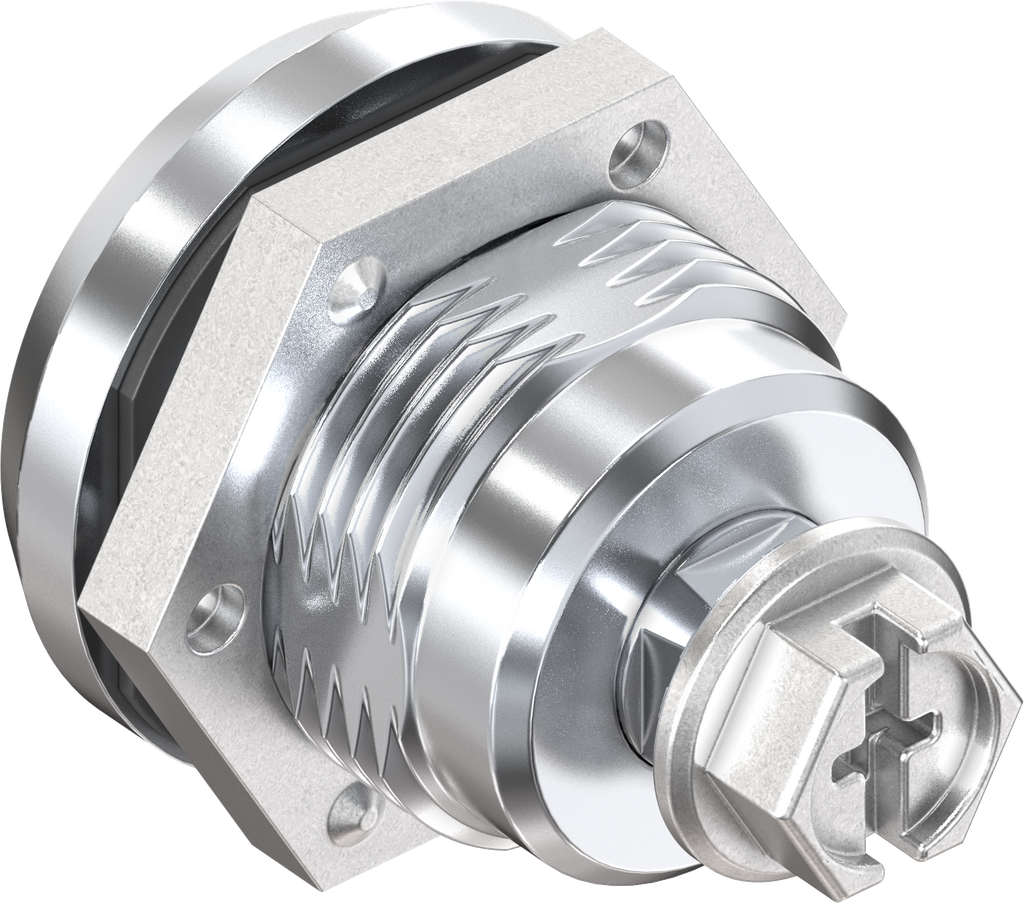

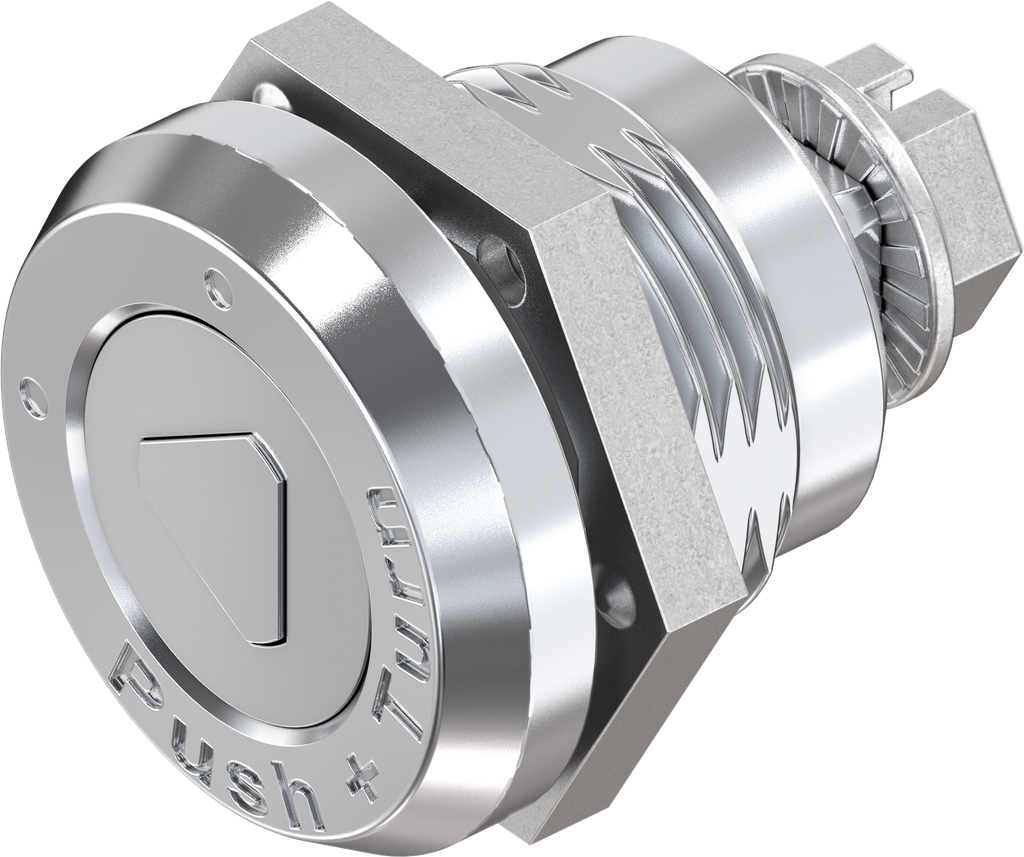

Safety quarter turn triangular 8 with mask, Zinc die chrome-plated; 1000-U818-05IA
with earthing nut
This product has no valid combination.
Product information:
The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U818-05IA
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-u00818-00005ia
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-332
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Type of actuation:
Triangular 8
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round

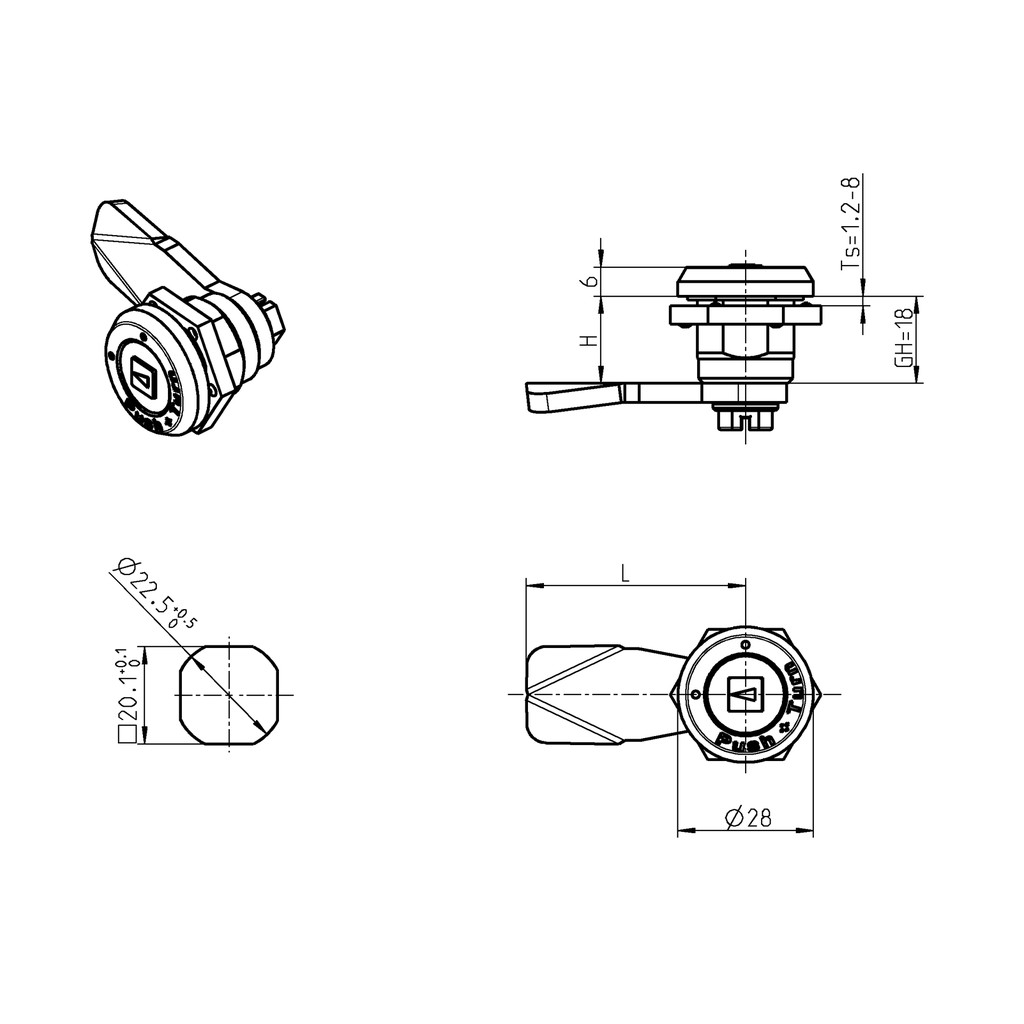

Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
