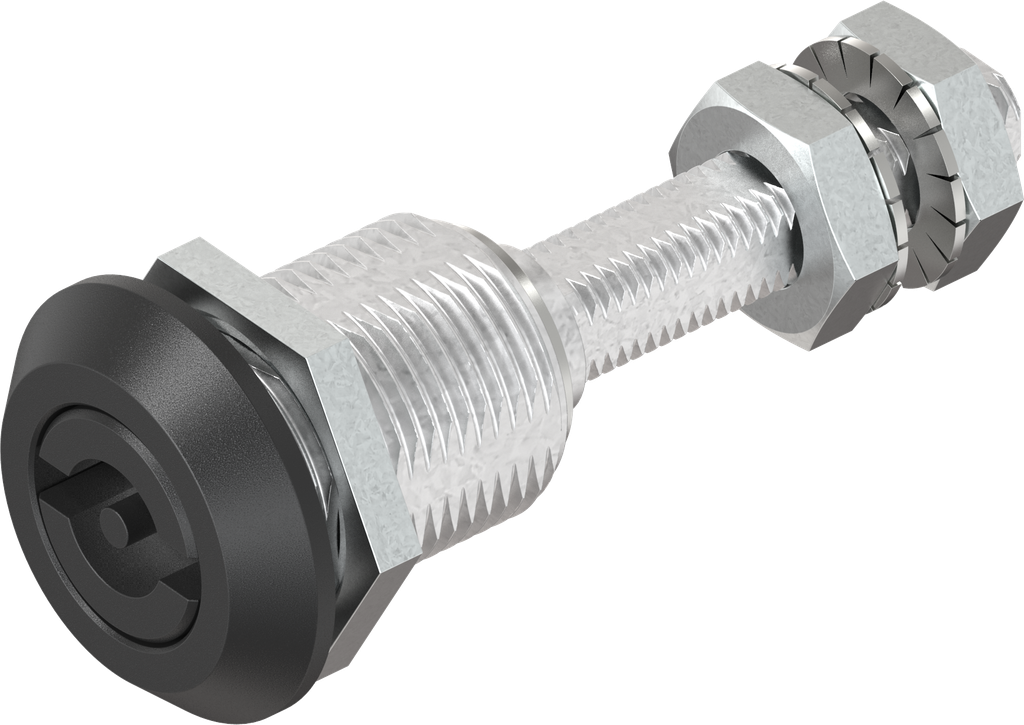

Compression latch with adjustable cam height, double bit 3, Zinc die black powder-coated; 1000-U803

https://www.emka.com/products/1000-u803 https://www.emka.com/web/image/product.template/60332/image_1920?unique=2380851

with nut


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 45545-3 class E20 (fire protection) DIN EN 61373 (shock and vibration testing) Left Right


    Product information:

    The compression latch is designed to be vibration-proof as such.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-U803
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-222
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Double bit 3
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    Foamed gasket: Yes
    GH Mass: 31 mm
    Compression Value : 6 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Compression latch with insert
